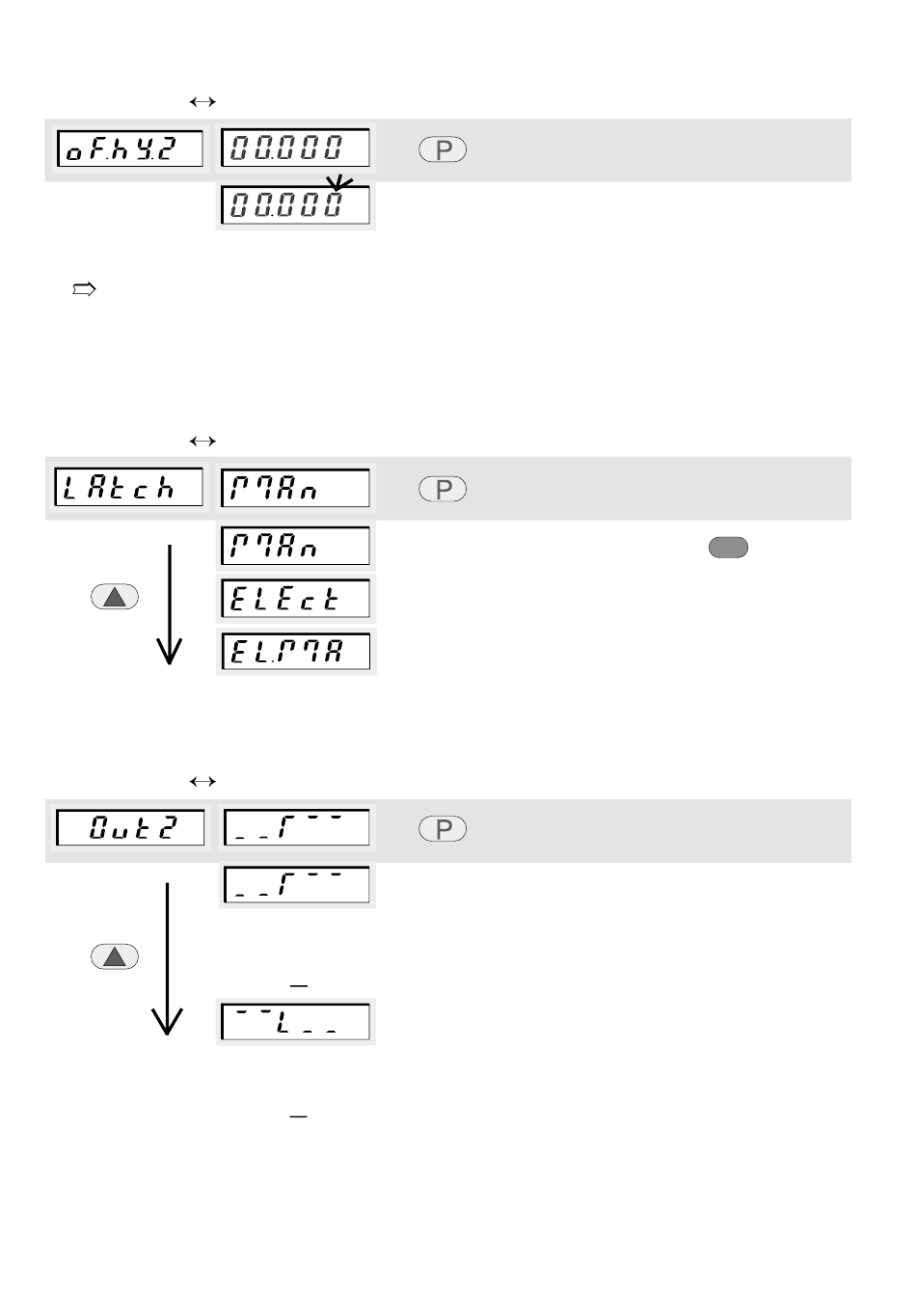

Set switching off hysteresis ∆ ∆ ∆ ∆ ∆ b for limit 2
Menu
4.5.2.6 Select Signal form for output 2
4.5.2.5 Reset Latch signal at output 2
The mode of resetting the Latch signal will be selected.
Menu
4.5.2.6 Select signal form for output 2
Menu
Output is activated when the instantaneous
value > Limit 2.
Output is deactivated when the instantaneous
value > Limit 2.
28
Selection Enter
Select and set digit
Selection Enter
manual
electrical
electrical as well as manual
Selection Enter
Positive output signal
Negative output signal
Reset with
red key
RESET signal
