POWERinvert PRO | Modified Sine Wave Inverter
GB
Modified Sine Wave Inverter
Safety
• Installation should be carried out by a qualified electrician.
• Do not expose the unit to moisture or flammable materials.
• Do not remove the unit cover, dangerous voltages are present.
Installation & Setup
1. Ensure that the inverter power on/off switch is in the OFF (O) position.
2. To protect inverter terminals against short circuit, protective covers should be fitted where provided.
3. Attach the black (-) cable to the black (-) terminal on the rear face of the inverter and to the black (-) terminal on the battery.
4. Attach the red (+) cable to the red (+) terminal on the rear face of the inverter and to the red (+) terminal on the battery.
5. To further protect against short circuit, it is recommended an in-line fuse (F 1) be fitted near the positive battery post.
Operation
Switching On
1. Ensure that the inverter power on/off switch is in the OFF ( 0) position.
2. Plug the appliance into the AC output socket on the inverter, ensuring it does not exceed the maximum output power of the inverter.
3. Turn the power on/off switch to the ON (I) position.
4. The Power indicator will illuminate green and mains power will be available from the AC output socket(s). On models fitted with a
display the LCD screen will also illuminate.

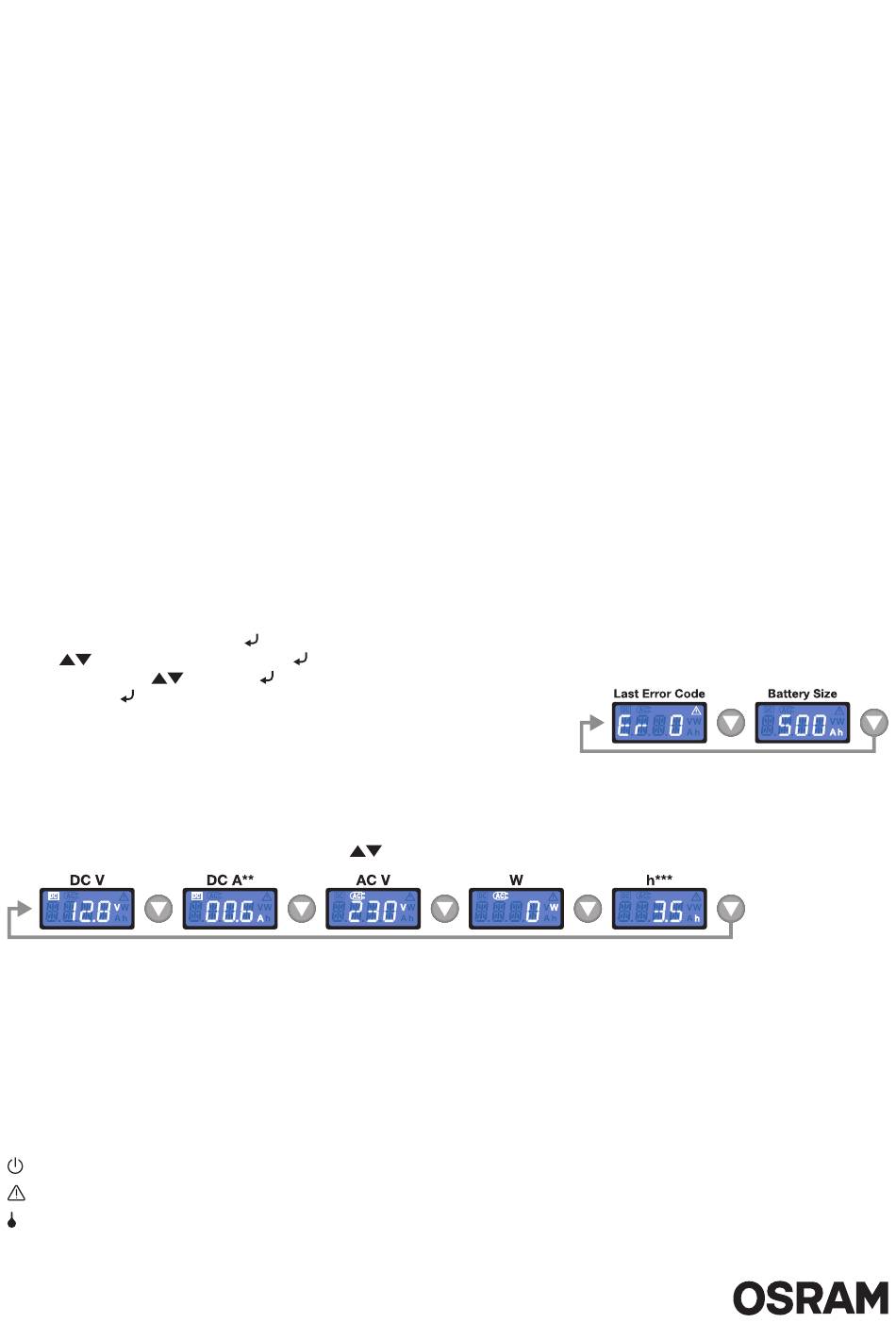

LCD-Display and Indicators
Where fitted the LCD display provides additional information to help monitor and manage power from the inverter.
Setup Mode
The inverter can be configured by entering the setup mode.
• To enter Setup Mode press & hold
• Press
keys to select item then press
• Adjust setting using
• Press and hold
key to exit back to Information Mode.
Output Voltage:
Sets the AC output voltage. Only change if the application
requires a different voltage for optimum performance.
Last Error Code: Allows the last error code to be viewed.
Battery Size:
Sets the Ah rating of the battery supplying the inverter. The value is used when calculating input current
and hours remaining in conjunction with the Current Sensor.
Information Mode
Various information modes are available by pressing
DC Voltage:
Input voltage available from the battery supply.
DC Current:
Input current being used from the battery supply in order to power the load.
**The optional Current Sensor must be fitted to enable measurement of input current.
AC Voltage:
Output voltage available from the AC outlets.
Output Wattage:
Output power being consumed by the connected loads.
Hours Remaining:
An estimate of time remaining before the battery will be depleted based on the current load.
***The optional Current Sensor must be fitted to enable measurement of hours remaining.
Indicator and Error Modes
Power:
Illuminates green to show the unit is switched on and power is available from the AC output socket(s).
Overload:
Illuminates red if the units has been overloaded due to excessive current or a short circuit.
Over Temperature: Illuminates yellow if the unit has overheated.
Audible Alarm:
An alarm sound will be heard if the unit has switched off due to a fault.
8
key.
, chosen setting will then flash.
then press
to set.
buttons to move forward or backwards through the screens.
