EN
46

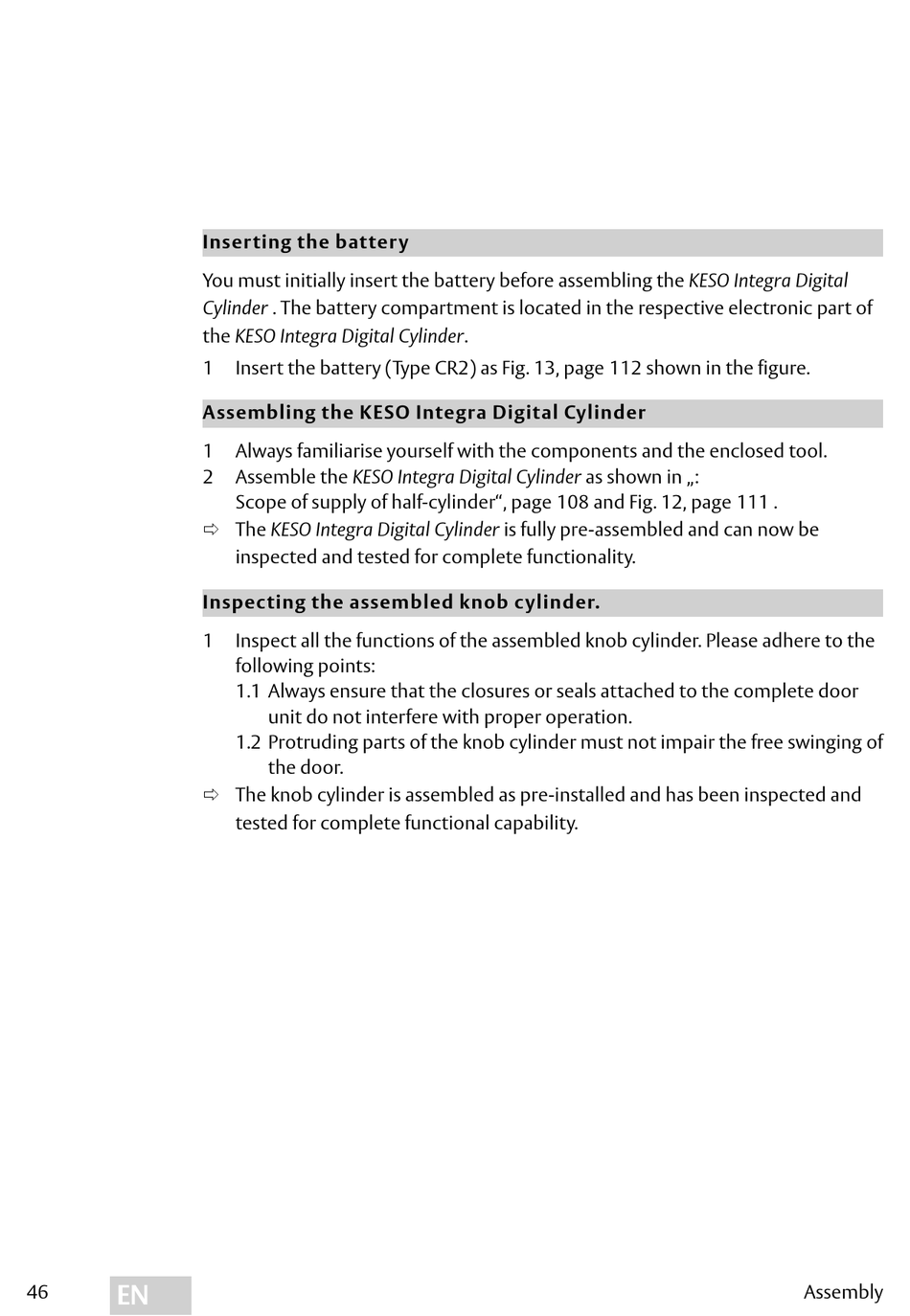

Inserting the batter y
You must initially insert the battery before assembling the KESO Integra Digital
Cylinder . The battery compartment is located in the respective electronic part of
the KESO Integra Digital Cylinder.
1 Insert the battery (Type CR2) as Fig. 13, page 112 shown in the figure.
Assembling the KESO Integra Digital Cylinder
1 Always familiarise yourself with the components and the enclosed tool.
2 Assemble the KESO Integra Digital Cylinder as shown in „:
Scope of supply of half-cylinder", page 108 and Fig. 12, page 111 .
 The KESO Integra Digital Cylinder is fully pre-assembled and can now be
inspected and tested for complete functionality.
Inspecting the assembled knob cylinder.
1 Inspect all the functions of the assembled knob cylinder. Please adhere to the
following points:
1.1 Always ensure that the closures or seals attached to the complete door
unit do not interfere with proper operation.
1.2 Protruding parts of the knob cylinder must not impair the free swinging of
the door.
 The knob cylinder is assembled as pre-installed and has been inspected and
tested for complete functional capability.
Assembly
