Use Of The Interchangeable Bolt; Initial Operation; Connecting The Supply Line - Setolite SETO ALDEBARAN XLD COMPACT Gebrauchsanleitung

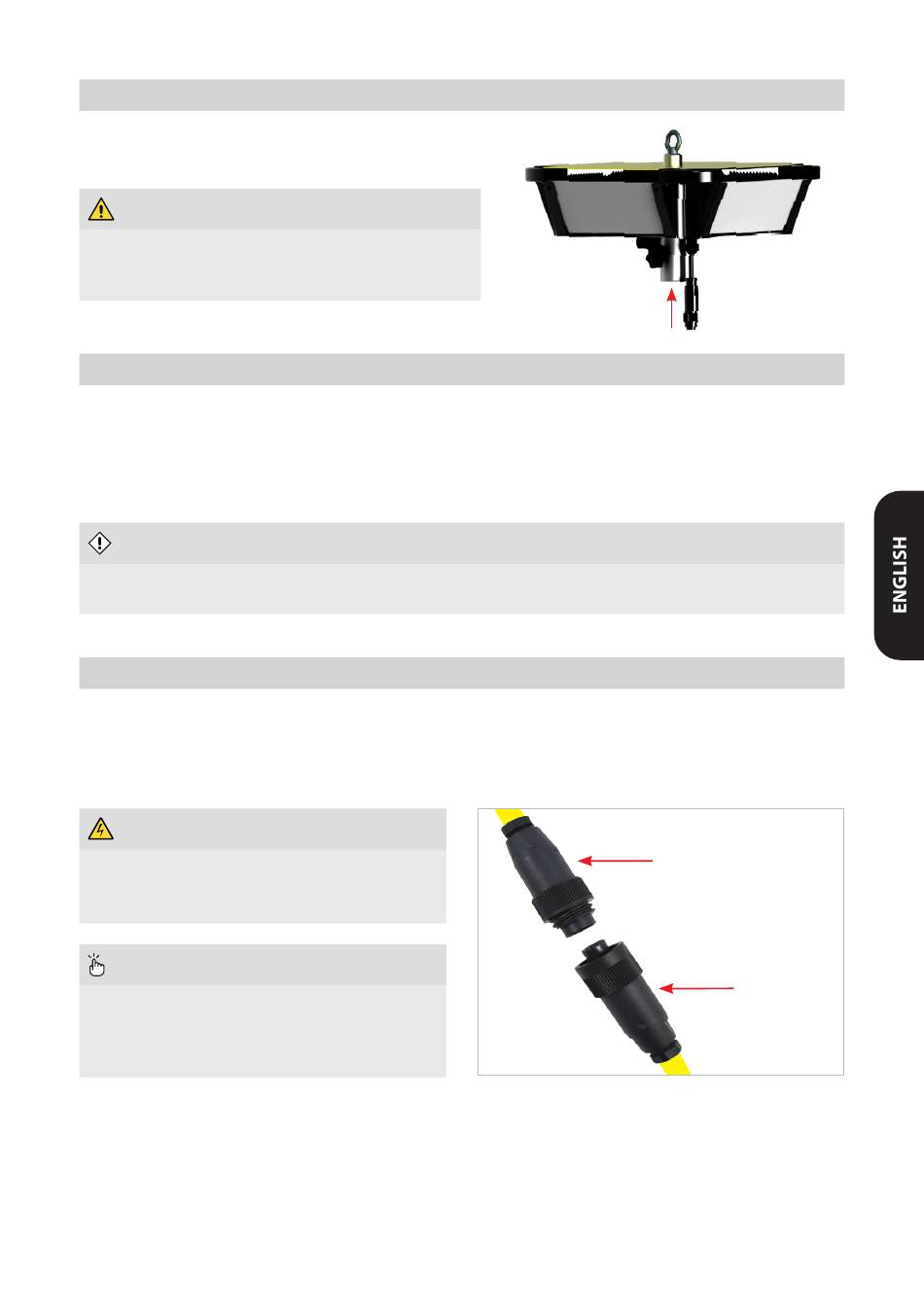

Push the interchangeable bolt into the luminaire from below and
make sure that the locking bolt of the quick-release fastener
engages in the intended position.
WARNING! Risk of injury!
The snap-in bolt of the quick-release fastener must engage
in the intended position. This is how you avoid accidents
and injuries.
In principle, the ALDEBARAN® XLD(-C) COMPACT is delivered ready for connection with a supply cable and plug.
The luminaire is only to be connected to an alternating current – with the voltage according to the rating plate –
to a properly installed safety socket. Please note that your system corresponds to the relevant VDE guidelines.
If you have any questions about this, please contact your energy supplier or your electrician. Of course we are at your
disposal if you have any questions.
ATTENTION!
In the case of versions of the luminaire with other plug-in systems (not Schuko®), the voltage according to the rating
plate must be observed.
The supplied cable (BASIC, SWITCH, DIM) depends on the version selected.
To connect the supply line to the luminaire, insert the cable socket of the supply line into the cable plug of the luminaire
and turn the threaded ring of the cable socket "hand-tight" (approx. 50 cNm) clockwise.
To disconnect the cable, unscrew the threaded ring of the cable socket anti-clockwise and pull the connectors apart.
DANGER! Electric current!
Before connecting or disconnecting the supply line,
make sure that the luminaire is disconnected from
the power supply.
ATTENTION!
The luminaire may only be operated with the original
cable. Cables for replacement or repair can only
be obtained from the manufacturer or its service
representative.

Use of the interchangeable bolt

Initial operation

Connecting the supply line

Cable plug
(Luminaire)
Cable socket
(Supply line)
