Addressing
At the factory the address is set to 0.
Addressing with the addressing unit AC1144
When mounted and wired the module can be addressed by connect-
ing the addressing cable (E70213) to the implemented addressing
socket.
Do not remove the addressing plug while live.
Electrical connection
Disconnect power! Connect the sensors and actuators with the
terminals. The sensors must be supplied with external PELV vol-
tage.

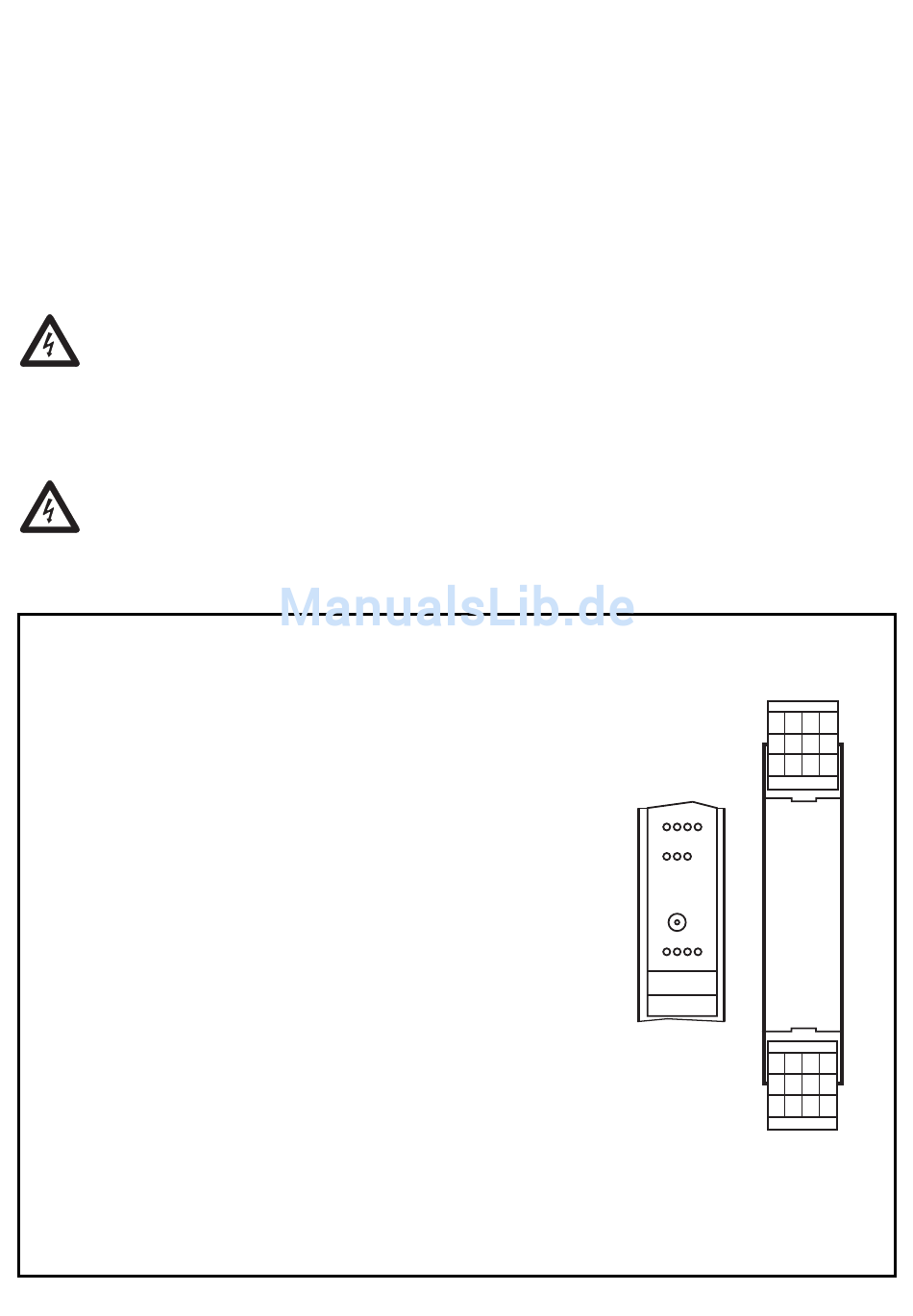

Connection
A+:
AS-i +
A-:
AS-i -
I+:
sensor supply +24 V
I-:
sensor supply
E+:
external sensor supply
for sensors/actuators
E-:
external sensor supply
for sensors/actuators
I1 ... I4:
switching inputs sensors 1...4
O1 ... O4: switching outputs actuators 1...4
O-:
switching output actuator 0 V
LEDs 1:
switching status indication
sensor inputs
LEDs 2:
AS-i, FAULT, AUX
LEDs 3:
switching status indication
actuator outputs
ADR:
addressing socket
6
0 V
LEDs 1
LEDs 2
ADR
LEDs 3
I- I- I- I-
I1 I2 I3 I4
I+ I+ I+ I+
O- O- O- O-
O1 O2 O3 O4
A+ A- E+ E-
