HARDWARE INSTALLATION:
If you are ready with the jumper settings for the card, please proceed with the following
installation instructions. Because there are large differences between PC's, we can give
you only a general installation guide for the EX-16502E. Please refer your computer's
reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. If necessary please install now the external power supply connector to the card.
4. Locate an available & correct expansion slot ( see compatibility at technical informa-
tion above) and remove its covers from the rear panel of your computer.
5. Align the card with the expansion slot, and then gently but firmly, insert the card. Make
sure the card is seated and oriented correctly.
6. Then connect the card with a screw to the rear panel of the computer.
7. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION:
Windows ME:
The drivers are already integrated in Windows and the card will be installed automati-
cally.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
new entry's: <Texas Instruments OHCI conform IEEE1394 Host controller>.
If you see this or a similar information the card is installed correctly.
Windows 2000/ XP/ Server 2003 and Server 2008 (R2):
The drivers are already integrated in Windows and the card will be installed automati-
cally.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
new entry's: <Texas Instruments OHCI conform IEEE1394 Host controller>.
If you see this or a similar information the card is installed correctly.
Windows Vista and 7:
The drivers are already integrated in Windows and the card will be installed automati-
cally.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "IEEE1394 Devices" the following
new entry's: <Texas Instruments OHCI conform IEEE1394 Host controller>.
If you see this or a similar information the card is installed correctly.
MAC:
The drivers are already integrated in MAC OS and the card will be installed automati-
cally. Only Mac OS 8.6 do need a update before the card can be used. You can
download the update on the Mac OS homepage (e.g. FireWire Support 2.8.x)
In doubt please refer to the installation manual from your MAC OS version!
LINUX:
Because each individual distribution and kernel version of Linux is different, sadly we
cant provide a installation instruction here. Please refer to the installation manual for
IEEE1394 ports from your Linux version!
5
English English English EX- EX EX - - 16502E 16502E 16502E English English English

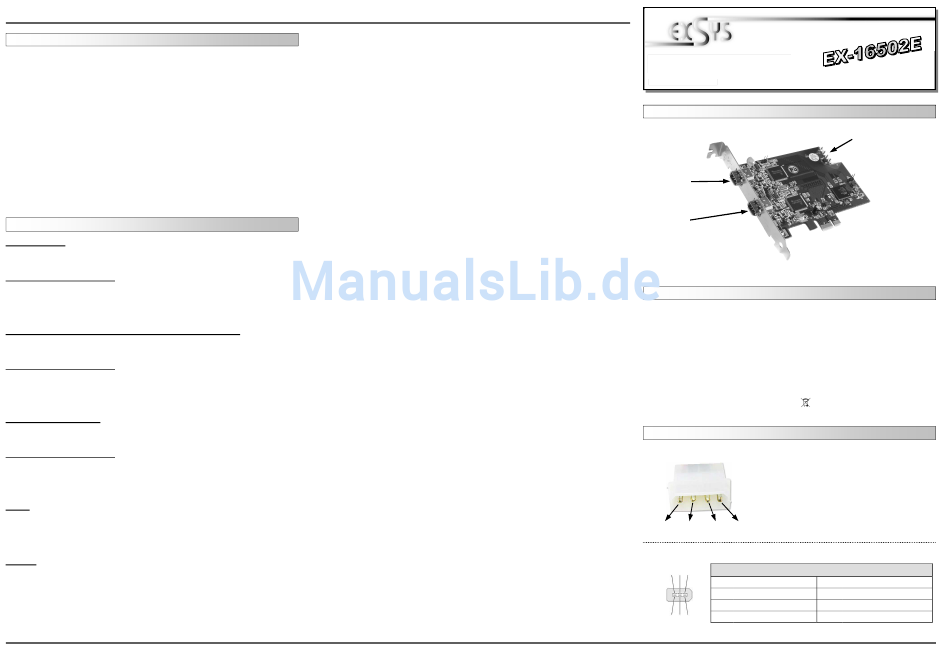

AUFBAU:
BESCHREIBUNG & TECHNISCHE DATEN:

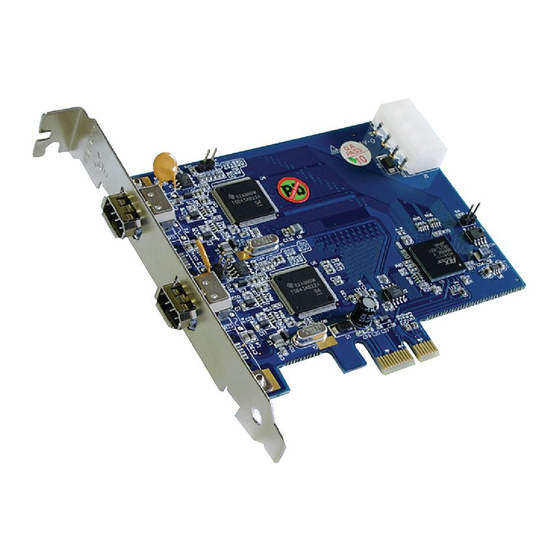

Die EX-16502E ist eine PCI-Express Dual FireWire 1394A Karte mit zwei Externen
Ausgängen für den Anschluss von Peripheriegeräten mit FireWire 1394A Interface (z.B.
Digital Kamera, Digital Aufnahmegerät, Scanner, Drucker usw.). Die EX-16502E ist eine
Hot Plug & Play FireWire 1394A Karte. Sie hat eine Datenübertragungs-Rate von 400Mbits
pro Sekunde (50MB/Sek.) pro Ausgang. Sie unterstützt die OHCI Spezifikationen (Open
Host Controller Interface).
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
JP1:
J2-J3:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 1.1 / 02.02.12
J2:
Port 1
J3:
Port 2
PCI-Express x1 bis x16
WIN ME/ 2000/ XP/ Server 2003 & 2008/ Vista/ 7/ MAC/ Linux
2x 6 Pin IEEE1394a Buchse, 1x 4 Pin Molex
EX-16502E, Anleitung
CE / FCC / RoHS / WEEE CE CE CE DE97424562 / WHQL
Bitte auf die richtige Polarität achten!
Achtung! Stecker nie bei eingeschaltetem PC ein oder
ausstecken!
1 +12V 2 GND 3 GND 4 +5V
IEEE 1394a 6 Pin FireWire Buchse
2 4 6
Pin Signal Pin
1 Power
2 GND
3 TPB-
1 3 5
1
JP1:
Anschluss für
Stecker vom PC-Netzteil
Signal
4 TPB+
5 TPA-
6 TPA+
