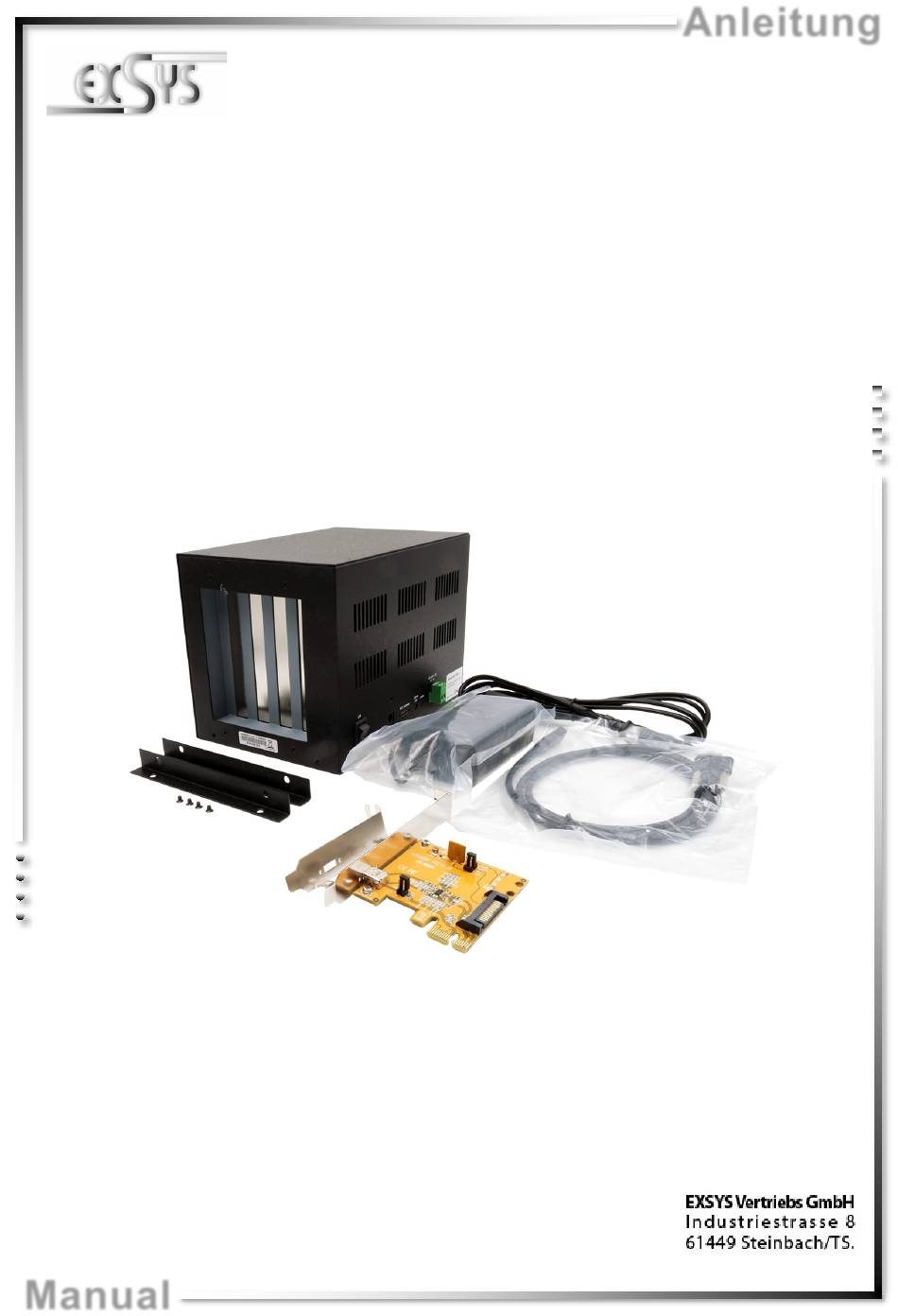

Anleitung
EX-1012
PCIe zu 4x PCI-Slot Erweiterungs-Box
PCIe to 4x PCI-Slot Expansion Box
Vers. 1.0 / 21.09.21
Manual

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Exsys EX-1012

  • Seite 1 Anleitung EX-1012 PCIe zu 4x PCI-Slot Erweiterungs-Box PCIe to 4x PCI-Slot Expansion Box Vers. 1.0 / 21.09.21 Manual...
  • Seite 2: Inhaltsverzeichnis

    Extent of Delivery ······························································································· 9 Layout, LED’s & Jumper Setting ······································································ 10-11 Layout ······················································································································ 10 LED‘s ······················································································································· 10 Jumper Setting ··········································································································· 11 Hardware Installation ····················································································· 12-13 Cleaning ··········································································································13 Technical Information ·························································································14 Technical Drawing ·····························································································14 © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 3: Beschreibung

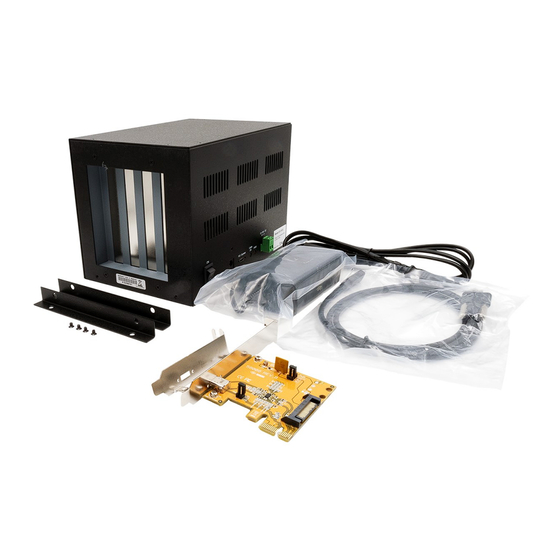

    • Unterstützt bis zu maximal 2 Meter USB-C-Kabel • 12-24V DC-Netzteil ist erforderlich • Zertifiziert für 2. Lieferumfang Bevor Sie den EX-1012 in Ihrem System installieren, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-1012 • PCIe-Host-Adapterkarte • Low Profile Bügel •...
  • Seite 4: Aufbau, Led's & Jumper Einstellung

    Verbindung zur PCIe-Host-Adapterkarte wurde korrekt hergestellt Cable OK Grün Aus: Keine Verbindung zur PCIe-Host-Adapterkarte Ständig An: Die EX-1012 ist mit Strom versorgt und Betriebsbereit Aus: Die EX-1012 wird nicht mit Strom versorgt © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 5: Jumper Einstellung

    Auf der Platine befinden sich drei Jumper. Bitte belassen Sie JP1 und JP3 so, wie sie ab Werk geliefert wurden. Den Jumper JP2 können Sie wie folgt ändern: JP2 Einstellung Ein-/Ausschalter Host PC Stromversorgung Erweiterungs-Box Stromversorgung „ON“ Egal (Werkseinstellung) „HOST“ © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 6: Hardware Installation

    Systemen gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau/Anschluss der EX-1012 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. Da sowohl das PC-System als auch die EX-1012 selbst mit Strom versorgt werden, müssen Sie die korrekte EIN-/AUS-Reihenfolge wie folgt einhalten: Ausschaltreihenfolge: Schalten Sie erst Ihr PC-System und dann die EX-1012 aus.
  • Seite 7: Reinigung

    Ausrichtung. Wenn die Ausrichtung korrekt ist, leuchtet die LED "Cable OK" grün auf. Falls dies nicht der Fall ist, ziehen Sie bitte den Ste- cker aus der EX-1012 ab und stecken Sie den Stecker mit umgekehrter Ausrichtung wieder ein.
  • Seite 8: Technische Daten

    0° bis 55° Celsius Lagertemperatur: -20° bis 75° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Schutzklasse: IP30 Stromversorgung: +12 bis +24 Volt Abmessung: 204,00 x 141,00 x 137,30 mm Gewicht: 2150g 7. Technische Zeichnung © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 9: Description

    English 1. Description The EX-1012 is an external expansion box with four PCI slots for extending or adding PCI connec- tions via a PCI Express slot. For the settings of I/O addresses and interrupts no jumpers are ne- cessary, because they are assigned automatically by the mainboard. The EX-1012 can be used in addition to the mainboard PCI connectors and supports all standard PCI I/O cards (e.g.
  • Seite 10: Layout, Led's & Jumper Setting

    Cable OK Green Off: No connection to the PCIe-Host-Adapter-Card Steady On: The EX-1012 is supplied with power and is ready for operation Off: The EX-1012 is not supplied with power © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 11: Jumper Setting

    There are three jumpers on the board. Please leave JP1 and JP3 as they were delivered from the factory. You can change the jumper JP2 as follows: JP2 Setting On-/Off Switch Host PC Power Expansion Box Power „ON“ Don‘t care (Factory Setting) „HOST“ © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
  • Seite 12: Hardware Installation

    EX-1012. If any- thing is unclear, please refer to the operating instructions of your computer system. Since both the PC system and the EX-1012 itself are supplied with power, you must follow the correct ON/OFF sequence as follows: Power Off Sequence: First switch off your PC system and then the EX-1012.
  • Seite 13: Cleaning

    EX-1012. Now reattach the top cover of the EX-1012. 8. Now connect the external power supply to the EX-1012. 9. Now you can switch on the EX-1012 with the on/off switch. After that please switch on your PC system first.
  • Seite 14: Technical Information

    Storage Temperature: -4° to 167° Fahrenheit Rel. Humidity: 5% to 95% Protection Class: IP30 Power: +12 to +24 Volt Size: 204,00 x 141,00 x 137,30 mm Weight: 2150g 7. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
