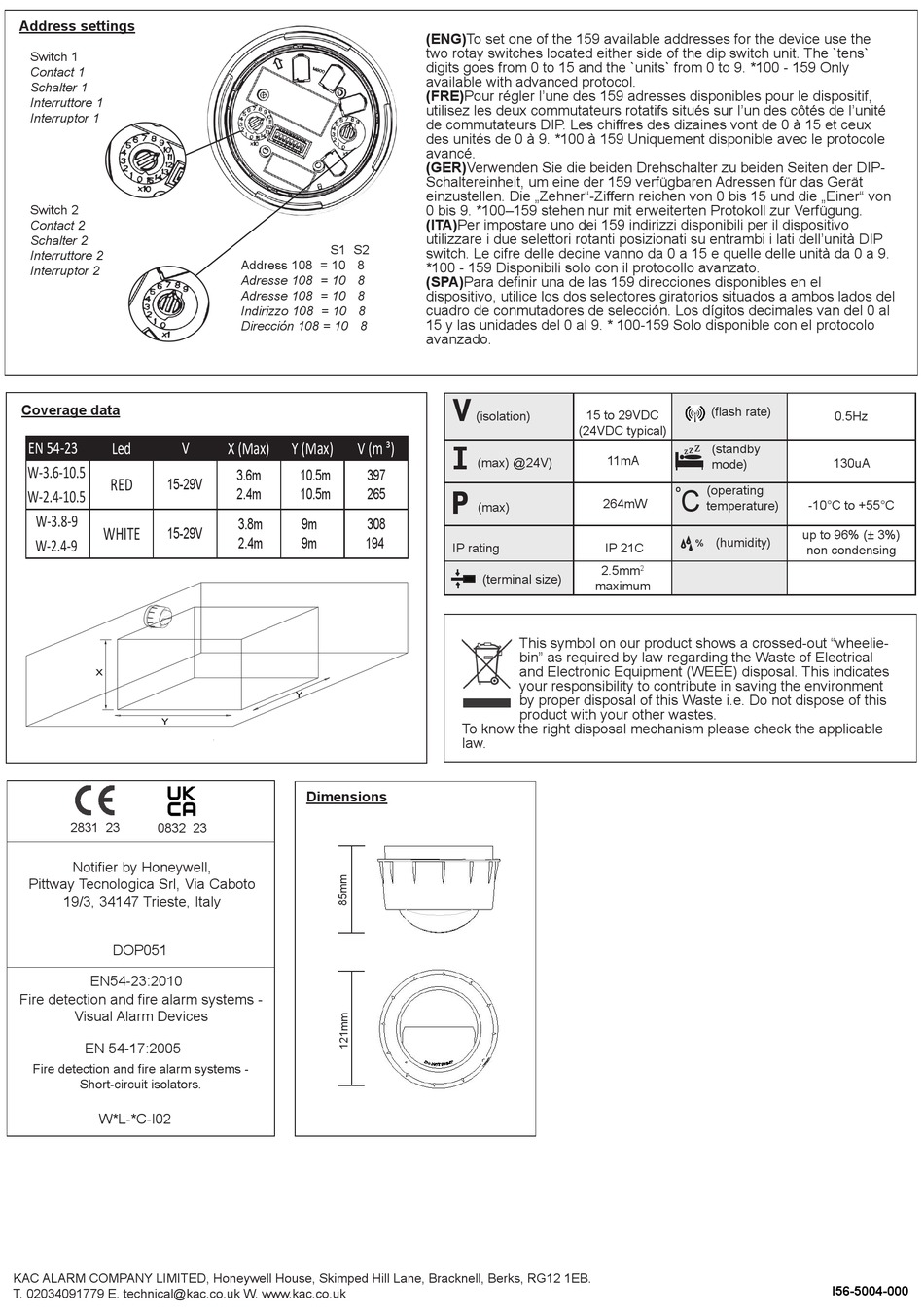

Address settings
Switch 1
Contact 1
Schalter 1
Interruttore 1
Interruptor 1
Switch 2
Contact 2
Schalter 2
Interruttore 2
Interruptor 2
Coverage data
EN 54-23
Led
V
W-3.6-10.5
RED
15-29V
W-2.4-10.5
W-3.8-9
WHITE
15-29V
W-2.4-9
X
Y
2831 23
0832 23
Notifier by Honeywell,
Pittway Tecnologica Srl, Via Caboto
19/3, 34147 Trieste, Italy
DOP051
EN54-23:2010
Fire detection and fire alarm systems -
Visual Alarm Devices
EN 54-17:2005
Fire detection and fire alarm systems -
Short-circuit isolators.
W*L-*C-I02
KAC ALARM COMPANY LIMITED, Honeywell House, Skimped Hill Lane, Bracknell, Berks, RG12 1EB.
T. 02034091779 E. technical@kac.co.uk W. www.kac.co.uk
S1 S2
Address 108 = 10 8
Adresse 108 = 10 8
Adresse 108 = 10 8
Indirizzo 108 = 10 8
Dirección 108 = 10 8
X (Max)
Y (Max)
V (m ³)
3.6m
10.5m
397
2.4m
10.5m
265
3.8m
9m
308
2.4m
9m
194
Y
Dimensions
(ENG)To set one of the 159 available addresses for the device use the
two rotay switches located either side of the dip switch unit. The `tens`
digits goes from 0 to 15 and the `units` from 0 to 9. *100 - 159 Only
available with advanced protocol.
(FRE)Pour régler l'une des 159 adresses disponibles pour le dispositif,
utilisez les deux commutateurs rotatifs situés sur l'un des côtés de l'unité
de commutateurs DIP. Les chiffres des dizaines vont de 0 à 15 et ceux
des unités de 0 à 9. *100 à 159 Uniquement disponible avec le protocole
avancé.
(GER)Verwenden Sie die beiden Drehschalter zu beiden Seiten der DIP-
Schaltereinheit, um eine der 159 verfügbaren Adressen für das Gerät
einzustellen. Die „Zehner"-Ziffern reichen von 0 bis 15 und die „Einer" von
0 bis 9. *100–159 stehen nur mit erweiterten Protokoll zur Verfügung.
(ITA)Per impostare uno dei 159 indirizzi disponibili per il dispositivo
utilizzare i due selettori rotanti posizionati su entrambi i lati dell'unità DIP
switch. Le cifre delle decine vanno da 0 a 15 e quelle delle unità da 0 a 9.
*100 - 159 Disponibili solo con il protocollo avanzato.
(SPA)Para definir una de las 159 direcciones disponibles en el
dispositivo, utilice los dos selectores giratorios situados a ambos lados del
cuadro de conmutadores de selección. Los dígitos decimales van del 0 al
15 y las unidades del 0 al 9. * 100-159 Solo disponible con el protocolo
avanzado.
V
15 to 29VDC
(isolation)
(24VDC typical)
I
(max) @24V)
P
(max)
IP rating
(terminal size)
maximum
This symbol on our product shows a crossed-out "wheelie-
bin" as required by law regarding the Waste of Electrical
and Electronic Equipment (WEEE) disposal. This indicates
your responsibility to contribute in saving the environment
by proper disposal of this Waste i.e. Do not dispose of this
product with your other wastes.
To know the right disposal mechanism please check the applicable
law.
(flash rate)
z
(standby
z
z
11mA
mode)
C
(operating
o
264mW
temperature)
(humidity)
%
IP 21C
2.5mm
2
0.5Hz
130uA
-10°C to +55°C
up to 96% (± 3%)
non condensing
I56-5004-000
