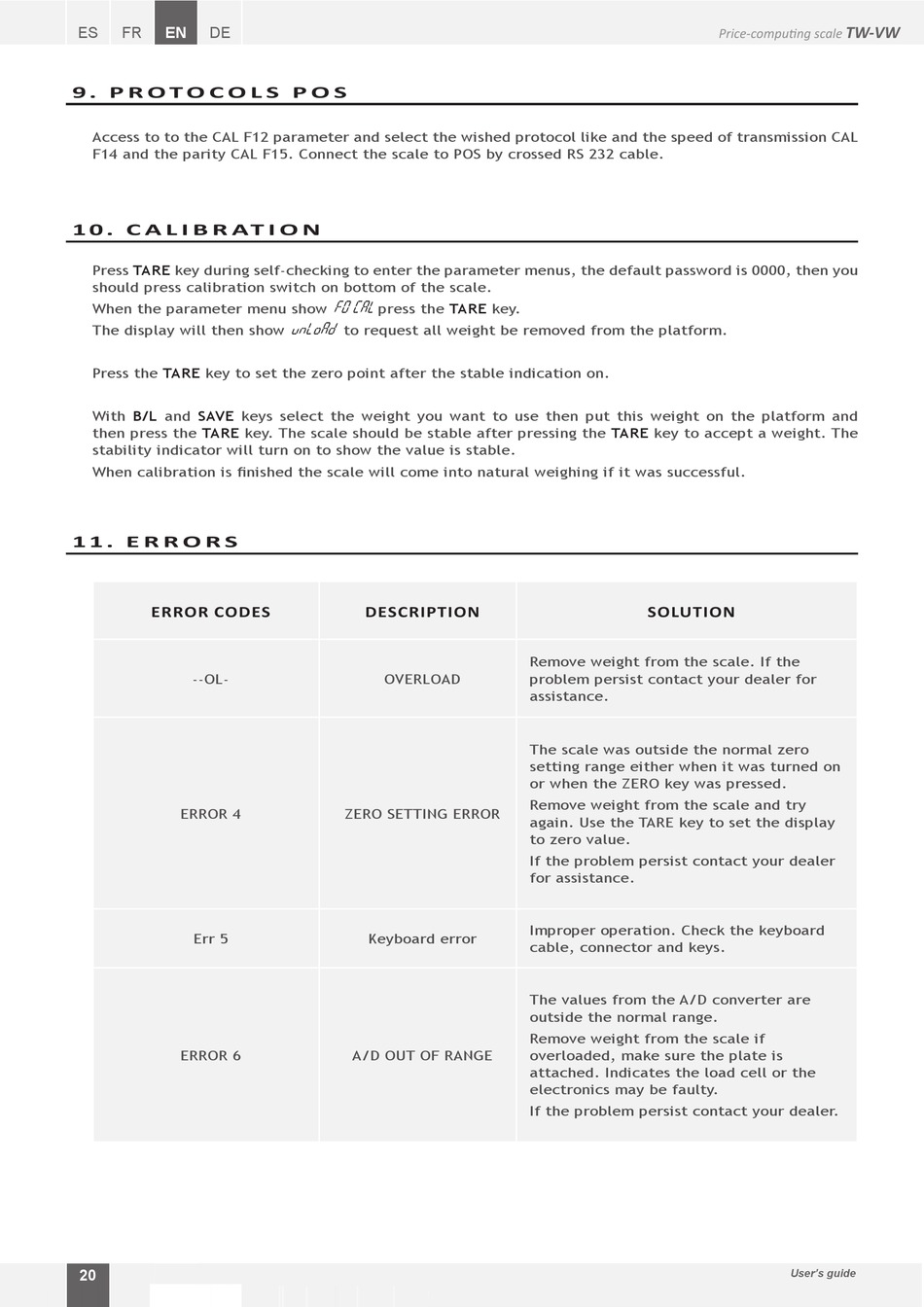

9 . p r o T o c o l s p o s
Access to to the CAL F12 parameter and select the wished protocol like and the speed of transmission CAL
F14 and the parity CAL F15. Connect the scale to POS by crossed RS 232 cable.
1 0 . c a l i b r a T i o n
Press
tarE
key during self-checking to enter the parameter menus, the default password is 0000, then you
should press calibration switch on bottom of the scale.
When the parameter menu show
The display will then show
Press the
tarE
key to set the zero point after the stable indication on.
With
B/l
and
savE
keys select the weight you want to use then put this weight on the platform and
tarE
then press the
key. The scale should be stable after pressing the
stability indicator will turn on to show the value is stable.
When calibration is finished the scale will come into natural weighing if it was successful.
1 1 . e r r o r s
error codes
--OL-
ERROR 4
Err 5
ERROR 6
20
F0 CAL
tarE
press the
unLoAd
to request all weight be removed from the platform.
descripTion
OVERLOAD
ZERO SETTING ERROR
Keyboard error
A/D OUT OF RANGE
key.
tarE
key to accept a weight. The
soluTion
Remove weight from the scale. If the
problem persist contact your dealer for
assistance.
The scale was outside the normal zero
setting range either when it was turned on
or when the ZERO key was pressed.
Remove weight from the scale and try
again. Use the TARE key to set the display
to zero value.
If the problem persist contact your dealer
for assistance.
Improper operation. Check the keyboard
cable, connector and keys.
The values from the A/D converter are
outside the normal range.
Remove weight from the scale if
overloaded, make sure the plate is
attached. Indicates the load cell or the
electronics may be faulty.
If the problem persist contact your dealer.
