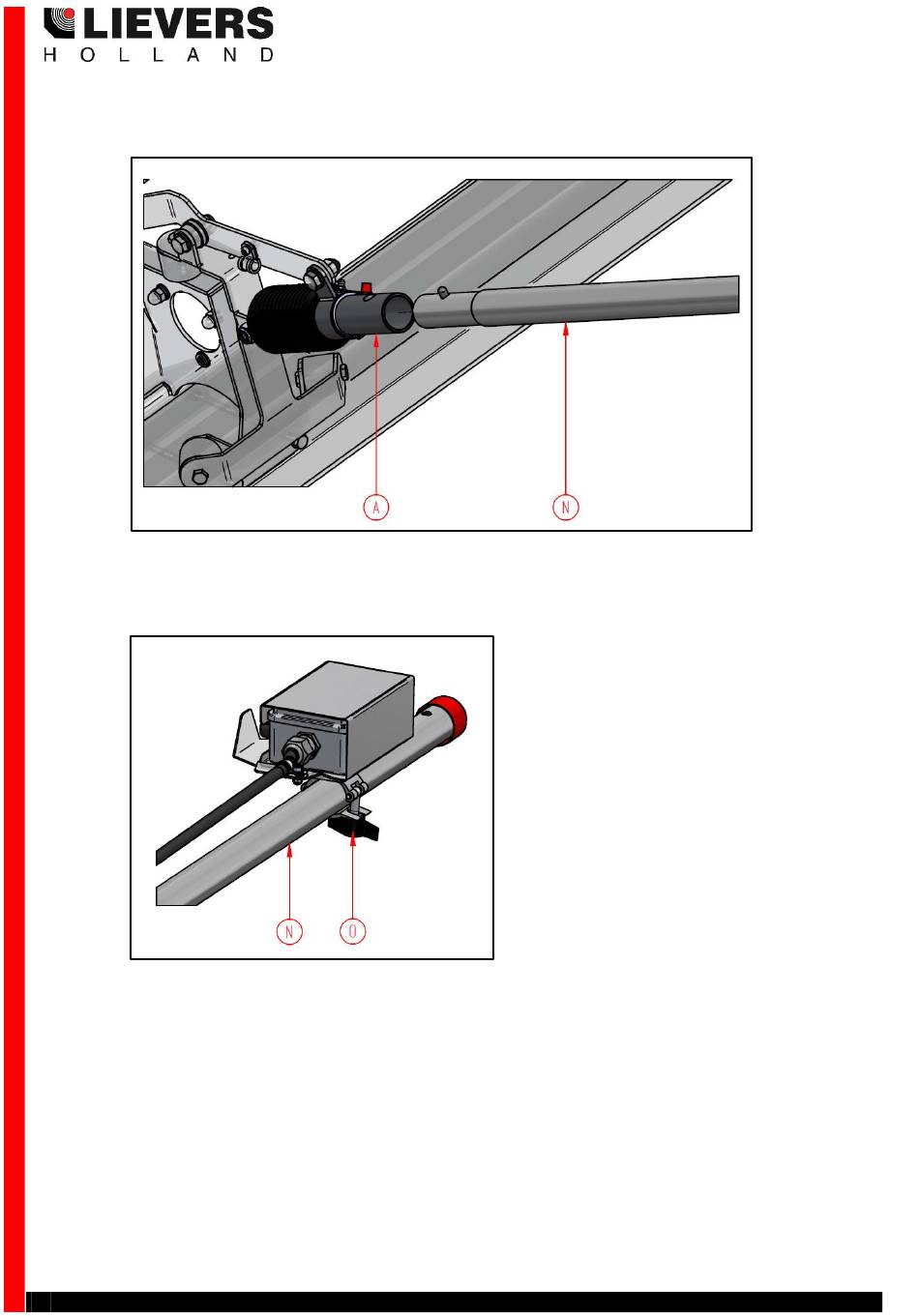

4. Place the operating rod (N) in the pitchcontrol stick holder (A), make sure the circlip falls in the
hole so that the operating rod is fixed.
Figure 8: Mounting the operating rod.
5. Now attach the operating unit by wrapping the tube clamp (O) around the operating rod
(N) and tightening the black T-handle. Make sure that the cable is not tensioned too tightly!
Figure 9: Mounting the operating unit.
