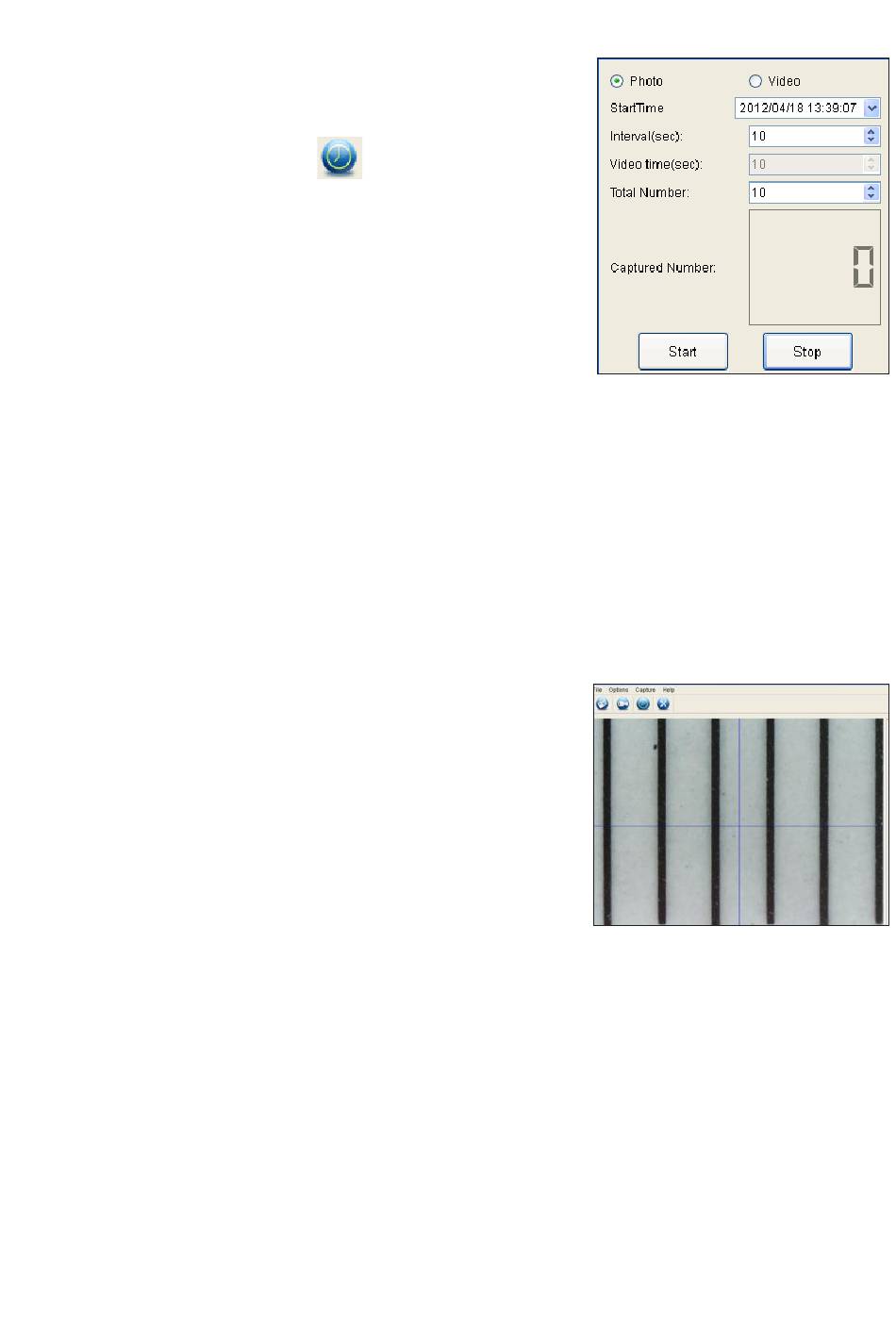

4.3 Setting timers to capture photos and videos

With timed capture, you can capture photos or vid-
eos at a particular date and time.
1. Press the timer button
2. Select if you want to capture photos or videos.
3. Configure the timer with the other settings.
4. Press the button Start to start the timer.

5 Calibrating magnification

Before you measure objects you must calibrate the desired magnification. You will
have to re-calibrate whenever you want to change the magnification.
The procedure is divided into three steps:
1. Setting the magnification
2. Computing the magnification rate
3. Verifying the magnification rate
Setting the magnification
1
1. Go to Options > XY Guide > On to
activate the guides.
2. Place the calibration ruler under the micro-
scope.
3. Move the ruler until the black bars are parallel
to the y-axis guide.
4. Adjust the magnification on the microscope.
5. Fine-adjust the focus until the ruler is in focus.
