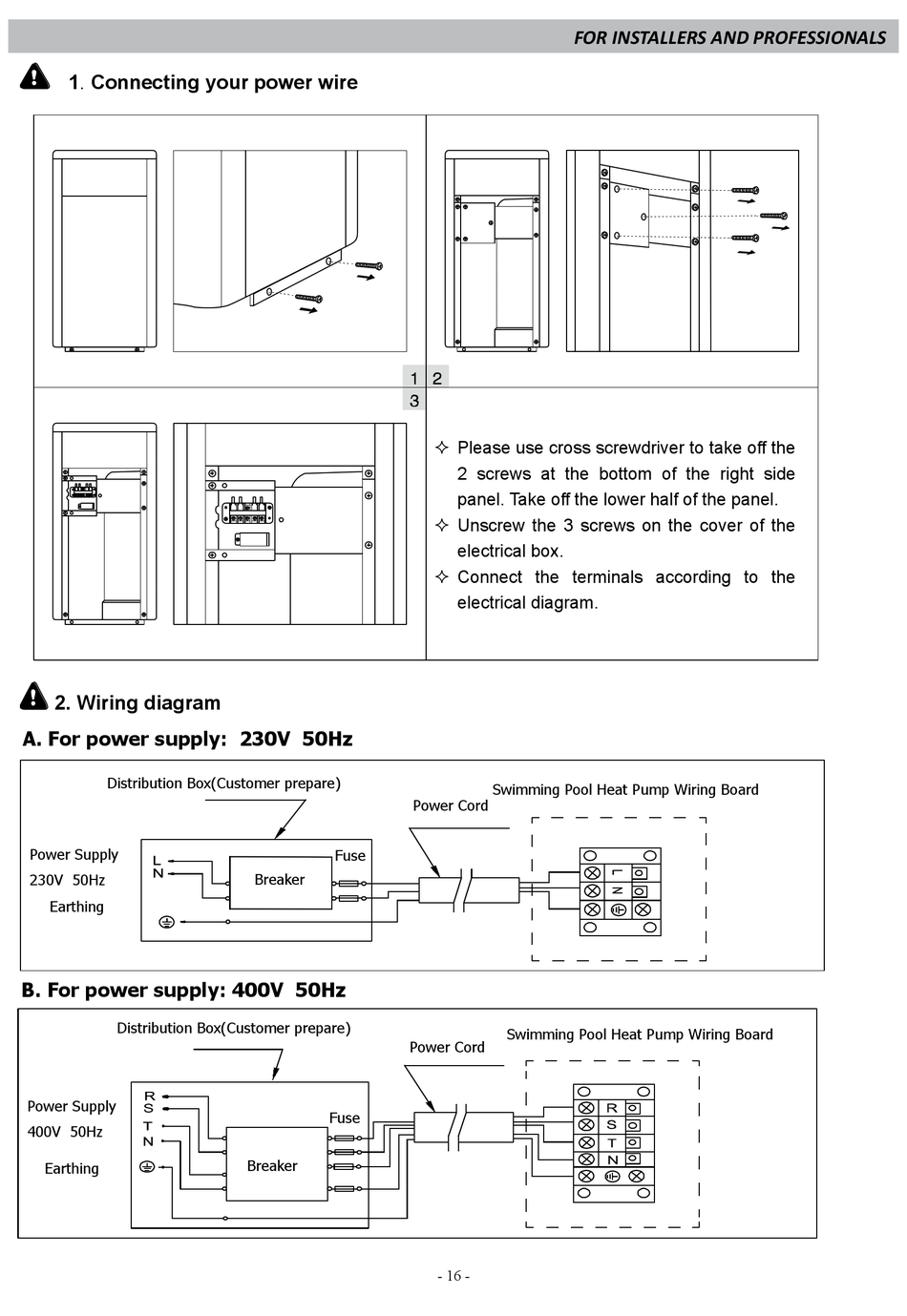

1. Connecting your power wire
2. Wiring diagram
A. For power supply: 230V 50Hz
Distribution Box(Customer prepare)
Power Supply
230V 50Hz
Earthing
B. For power supply: 400V 50Hz
Distribution Box(Customer prepare)
Power Supply
400V 50Hz
Earthing
Power Cord
Fuse
Breaker
Power Cord
Fuse
Breaker
FOR INSTALLERS AND PROFESSIONALS
 Please use cross screwdriver to take off the
2 screws at the bottom of the right side
panel. Take off the lower half of the panel.
 Unscrew the 3 screws on the cover of the
electrical box.
 Connect the terminals according to the
electrical diagram.
Swimming Pool Heat Pump Wiring Board
Swimming Pool Heat Pump Wiring Board
- 16 -
