IPSPRO IPS-110 pro Installations- Und Benutzerhandbuch Seite 49

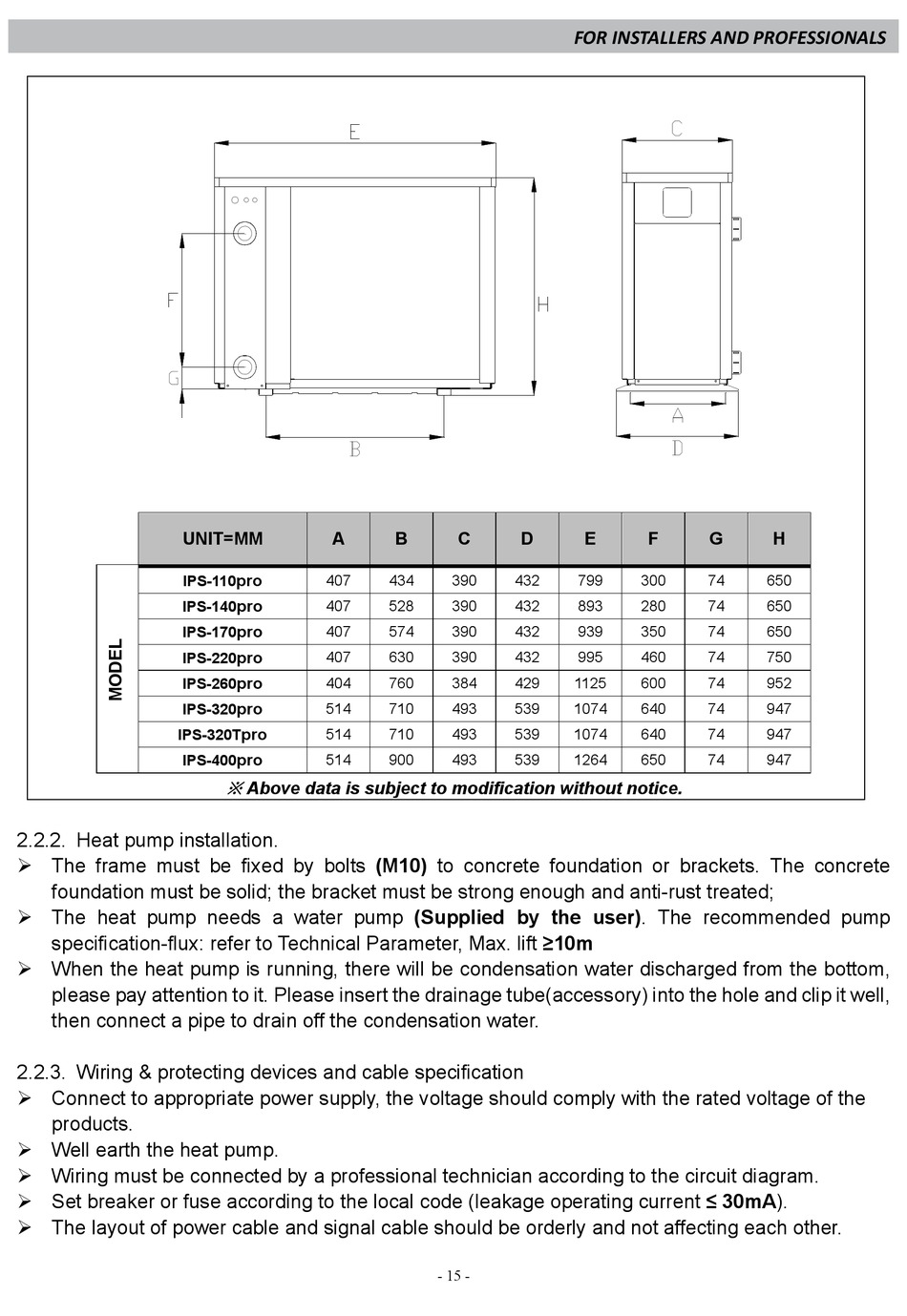

UNIT=MM
IPS-110
IPS-140
IPS-170
IPS-220
IPS-260
IPS-320
IPS-320T
IPS-400
2.2.2. Heat pump installation.
 The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete
foundation must be solid; the bracket must be strong enough and anti-rust treated;
 The heat pump needs a water pump (Supplied by the user). The recommended pump
specification-flux: refer to Technical Parameter, Max. lift ≥10m
 When the heat pump is running, there will be condensation water discharged from the bottom,
please pay attention to it. Please insert the drainage tube(accessory) into the hole and clip it well,
then connect a pipe to drain off the condensation water.
2.2.3. Wiring & protecting devices and cable specification
 Connect to appropriate power supply, the voltage should comply with the rated voltage of the
products.
 Well earth the heat pump.
 Wiring must be connected by a professional technician according to the circuit diagram.
 Set breaker or fuse according to the local code (leakage operating current ≤ 30mA).
 The layout of power cable and signal cable should be orderly and not affecting each other.
A B
pro 407 434
pro
407 528
pro
407 574
pro
407 630
pro
404 760
pro
514 710
pro 514 710
pro 514 900
※
Above data is subject to modification without notice.
FOR INSTALLERS AND PROFESSIONALS
C D E
390 432 799
390 432 893
390 432 939
390 432 995
384 429 1125
493 539 1074
493 539 1074
493 539 1264
- 15 -
F G H
300 74 650
280 74 650
350 74 650
460 74 750
600 74 952
640 74 947
640 74 947
650 74 947
