Automat housing, IP 65
Application areas
Durability with occasional
Ambient temperature
Relative humidity:
Fire protection with internal
Errors
Fire behaviour
Degree of protection against
Mechanical load
Toxic behaviour

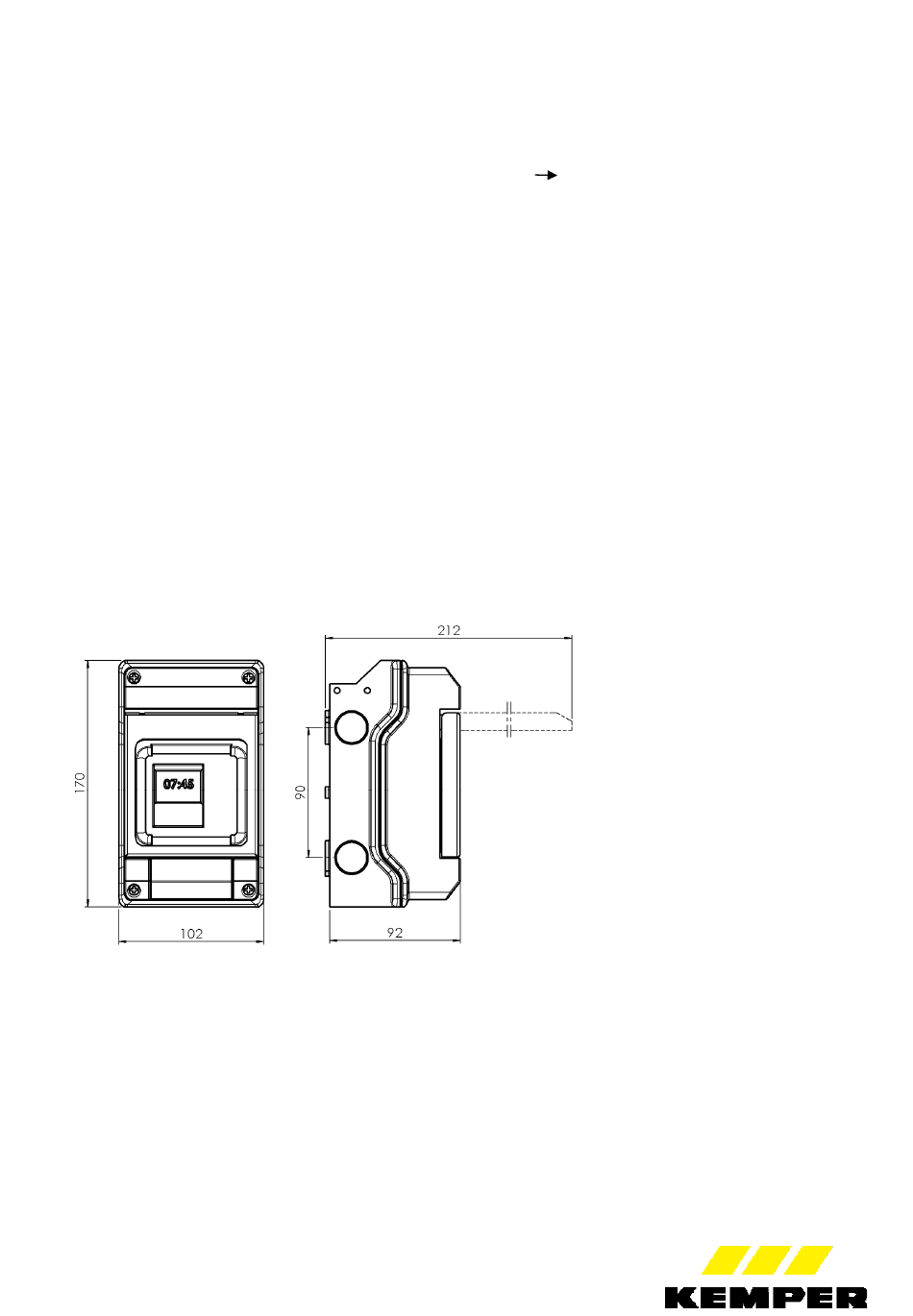

19. Abmessungen

19. Dimensions
IP 65 version: Suitable for indoors and protected installations
outdoors according to DIN VDE 0100 Part 737. IP 40/41 version: Suitable for indoor
rooms, dry
Durability with occasional cleaning (direct spraying) max. cleaning with high-
pressure cleaner without cleanser additives Water pressure: max. 65 bar, water
temperature: max. 50 °C, clearance
Average over 24 hours + 35 °C, maximum + 40 °C, minimum – 5 °C
50% at 40 °C intermittent 100% at 25 °C
Requirements placed on electrical equipment from operating equipment standards
and laws
Minimum requirements – glow-wire test according to IEC 60 695-2-11: - 650 °C for
housing and cable entries – 850 °C for current conducting parts
glow-wire test IEC 60 695-2-11 750 °C, UL Subject 94 V-2
Flame resistant, self extinguishing
IK08 (5 Joule)
Halogen-free, silicon-free
„Halogen-free" according to the tests made on the wires and insulated lines –
Corrosivity of fire effluents – according to IEC 754-2
Material attributes: see technical data
- 12 -
0.5 m housing and cable entry at least IP65
