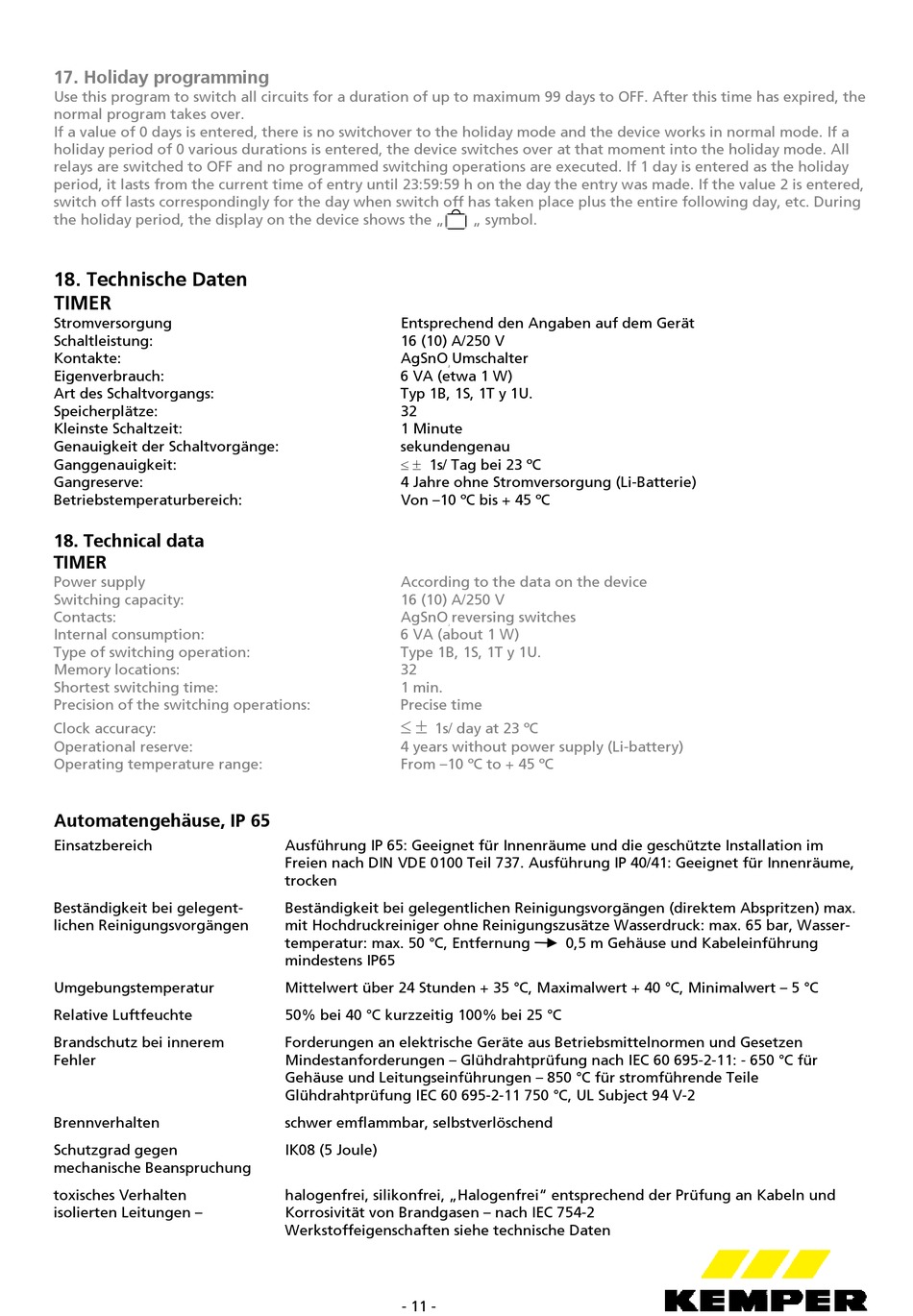

17. Holiday programming
Use this program to switch all circuits for a duration of up to maximum 99 days to OFF. After this time has expired, the
normal program takes over.
If a value of 0 days is entered, there is no switchover to the holiday mode and the device works in normal mode. If a
holiday period of 0 various durations is entered, the device switches over at that moment into the holiday mode. All
relays are switched to OFF and no programmed switching operations are executed. If 1 day is entered as the holiday
period, it lasts from the current time of entry until 23:59:59 h on the day the entry was made. If the value 2 is entered,
switch off lasts correspondingly for the day when switch off has taken place plus the entire following day, etc. During
the holiday period, the display on the device shows the „

18. Technische Daten

TIMER
Stromversorgung
Schaltleistung:
Kontakte:
Eigenverbrauch:
Art des Schaltvorgangs:
Speicherplätze:
Kleinste Schaltzeit:
Genauigkeit der Schaltvorgänge:
Ganggenauigkeit:
Gangreserve:
Betriebstemperaturbereich:
18. Technical data
TIMER
Power supply
Switching capacity:
Contacts:
Internal consumption:
Type of switching operation:
Memory locations:
Shortest switching time:
Precision of the switching operations:
Clock accuracy:
Operational reserve:
Operating temperature range:
Automatengehäuse, IP 65
Einsatzbereich
Beständigkeit bei gelegent-
lichen Reinigungsvorgängen
Umgebungstemperatur
Relative Luftfeuchte
Brandschutz bei innerem
Fehler
Brennverhalten
Schutzgrad gegen
mechanische Beanspruchung
toxisches Verhalten
isolierten Leitungen –
Entsprechend den Angaben auf dem Gerät
16 (10) A/250 V
AgSnO
Umschalter
2
6 VA (etwa 1 W)
Typ 1B, 1S, 1T y 1U.
32
1 Minute
sekundengenau
  1s/ Tag bei 23 ºC
4 Jahre ohne Stromversorgung (Li-Batterie)
Von –10 ºC bis + 45 ºC
According to the data on the device
16 (10) A/250 V
AgSnO
reversing switches
2
6 VA (about 1 W)
Type 1B, 1S, 1T y 1U.
32
1 min.
Precise time
 
1s/ day at 23 ºC
4 years without power supply (Li-battery)
From –10 ºC to + 45 ºC
Ausführung IP 65: Geeignet für Innenräume und die geschützte Installation im
Freien nach DIN VDE 0100 Teil 737. Ausführung IP 40/41: Geeignet für Innenräume,
trocken
Beständigkeit bei gelegentlichen Reinigungsvorgängen (direktem Abspritzen) max.
mit Hochdruckreiniger ohne Reinigungszusätze Wasserdruck: max. 65 bar, Wasser-
temperatur: max. 50 °C, Entfernung
mindestens IP65
Mittelwert über 24 Stunden + 35 °C, Maximalwert + 40 °C, Minimalwert – 5 °C
50% bei 40 °C kurzzeitig 100% bei 25 °C
Forderungen an elektrische Geräte aus Betriebsmittelnormen und Gesetzen
Mindestanforderungen – Glühdrahtprüfung nach IEC 60 695-2-11: - 650 °C für
Gehäuse und Leitungseinführungen – 850 °C für stromführende Teile
Glühdrahtprüfung IEC 60 695-2-11 750 °C, UL Subject 94 V-2
schwer emflammbar, selbstverlöschend
IK08 (5 Joule)
halogenfrei, silikonfrei, „Halogenfrei" entsprechend der Prüfung an Kabeln und
Korrosivität von Brandgasen – nach IEC 754-2
Werkstoffeigenschaften siehe technische Daten
- 11 -
„ symbol.
0,5 m Gehäuse und Kabeleinführung
