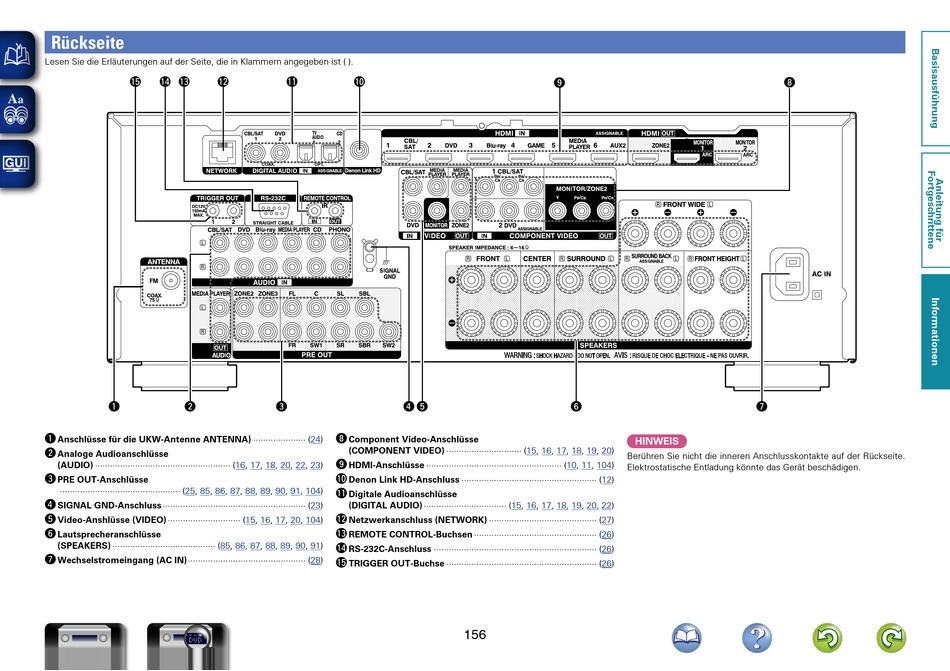

Rückseite
Lesen Sie die Erläuterungen auf der Seite, die in Klammern angegeben ist ( ).
Q5 Q4 Q3 Q2
q w
q
Anschlüsse für die UKW-Antenne ANTENNA) ····················· (24)
w
Analoge Audioanschlüsse
(AUDIO) ······················································ (16, 17, 18, 20, 22, 23)
e
PRE OUT-Anschlüsse
················································ (25, 85, 86, 87, 88, 89, 90, 91, 104)
r
SIGNAL GND-Anschluss ························································· (23)
t
Video-Anshlüsse (VIDEO) ····························· (15, 16, 17, 20, 104)
y
Lautsprecheranschlüsse
(SPEAKERS) ········································· (85, 86, 87, 88, 89, 90, 91)
u
Wechselstromeingang (AC IN) ··············································· (28)
DVD
Q1 Q0
e r t
i
Component Video-Anschlüsse
(COMPONENT VIDEO) ······························ (15, 16, 17, 18, 19, 20)
o
HDMI-Anschlüsse ······················································ (10, 11, 104)
Q0
Denon Link HD-Anschluss ······················································ (12)
Q1
Digitale Audioanschlüsse
(DIGITAL AUDIO) ································· (15, 16, 17, 18, 19, 20, 22)
Q2
Netzwerkanschluss (NETWORK) ··········································· (27)
Q3
REMOTE CONTROL-Buchsen ················································· (26)
Q4
RS-232C-Anschluss ································································· (26)
Q5
TRIGGER OUT-Buchse ···························································· (26)
o
y
HINWEIS
Berühren Sie nicht die inneren Anschlusskontakte auf der Rückseite.
Elektrostatische Entladung könnte das Gerät beschädigen.
