4.7 Interior fittings of the COMPACT line

4.7.1 Bottom tray with grating

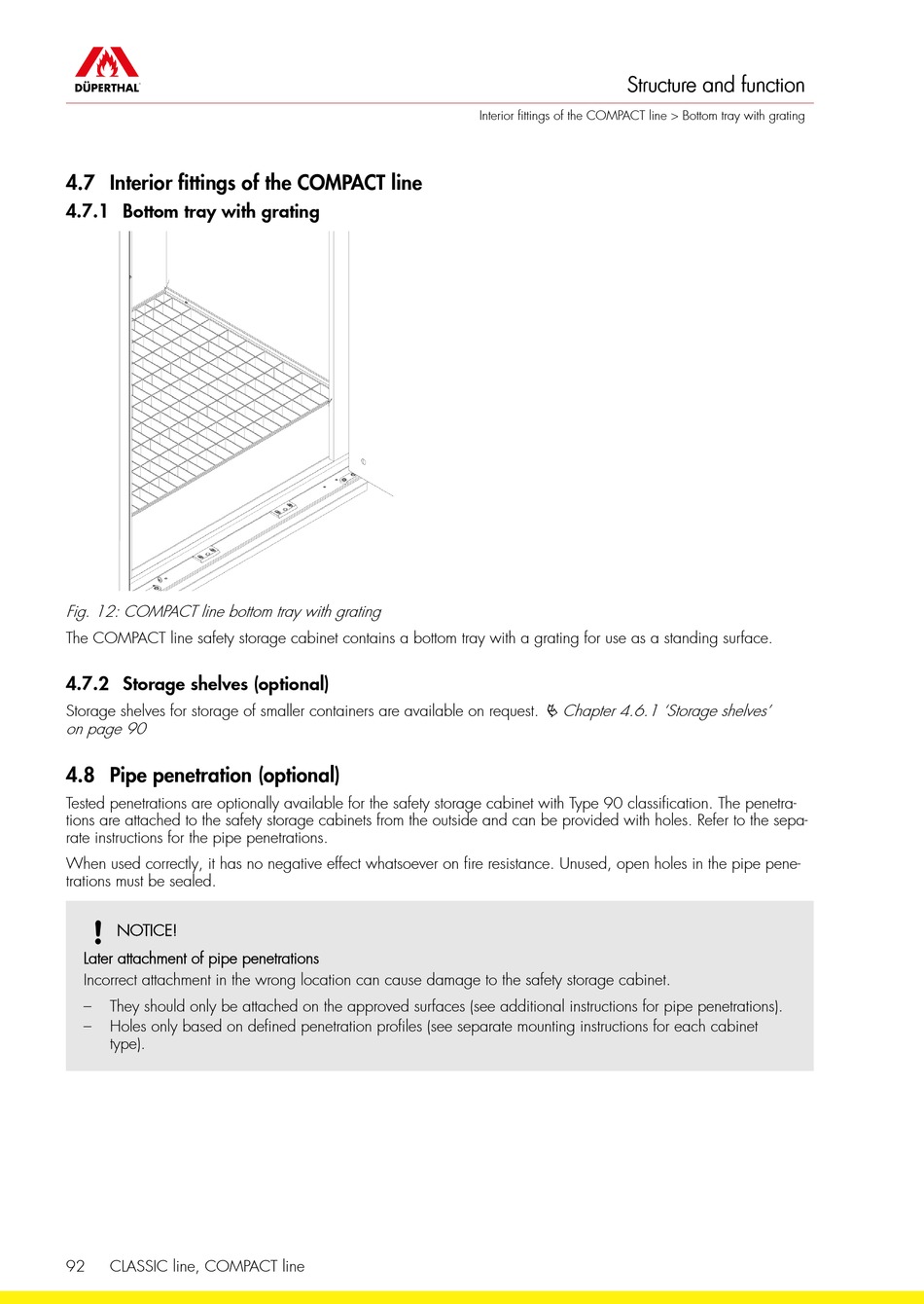

Fig. 12: COMPACT line bottom tray with grating
The COMPACT line safety storage cabinet contains a bottom tray with a grating for use as a standing surface.
4.7.2 Storage shelves (optional)
Storage shelves for storage of smaller containers are available on request.
on page 90

4.8 Pipe penetration (optional)

Tested penetrations are optionally available for the safety storage cabinet with Type 90 classification. The penetra-
tions are attached to the safety storage cabinets from the outside and can be provided with holes. Refer to the sepa-
rate instructions for the pipe penetrations.
When used correctly, it has no negative effect whatsoever on fire resistance. Unused, open holes in the pipe pene-
trations must be sealed.
NOTICE!
Later attachment of pipe penetrations
Incorrect attachment in the wrong location can cause damage to the safety storage cabinet.
– They should only be attached on the approved surfaces (see additional instructions for pipe penetrations).
– Holes only based on defined penetration profiles (see separate mounting instructions for each cabinet
type).
