Structure and function

Construction

4

Structure and function

4.1 Construction

Cabinet carcass and doors in multi-layer construction
n
External panelling: Powder-coated sheet steel
n
Wall construction: Multi-layer design
n
Interior surfaces: Light grey-coated decor panels
n
Safety technology elements for closure of venting cut-off flaps in case of fire: Brass, spring steel (1.410)
n

4.2 Earthing options

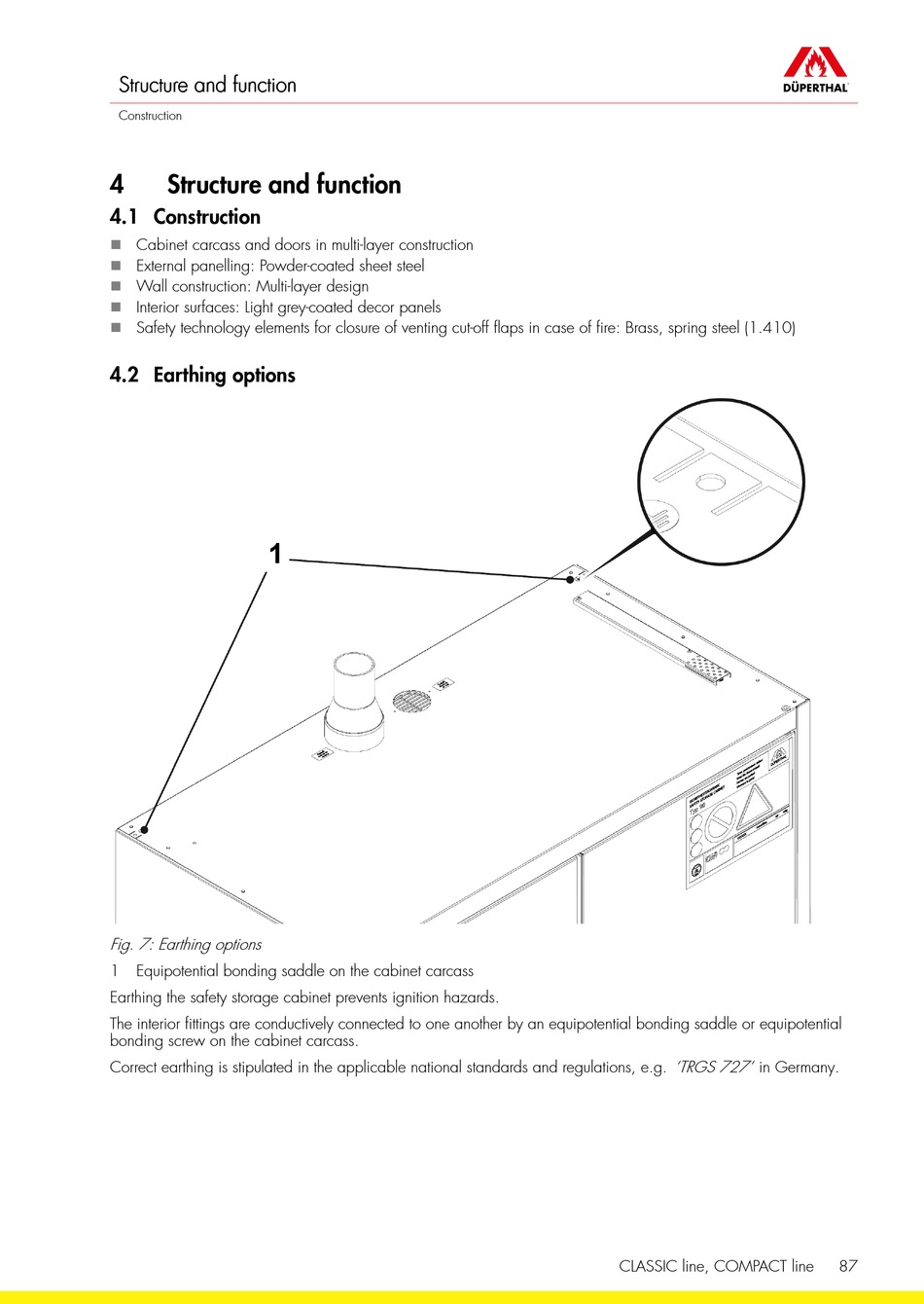

Fig. 7: Earthing options
1 Equipotential bonding saddle on the cabinet carcass
Earthing the safety storage cabinet prevents ignition hazards.
The interior fittings are conductively connected to one another by an equipotential bonding saddle or equipotential
bonding screw on the cabinet carcass.
Correct earthing is stipulated in the applicable national standards and regulations, e.g.
'TRGS 727' in Germany.
