Product Description

Analog transducer for recording torque and turning angle.
Use only as a component of a spindle of the BTS, BTSE
series.
The transducer series (...)K(...)C is the next generation of
transducer series (...)K(...)B
•
transducer series (...)M(...)B
•
Assignment of transducer new - old
(...)K(...) C
Code Capacity Order No.
Nm
1K1C 35 942613PT 1K1B
1K2C 60 942614PT 1K2B
1K3C 12 942615PT 1K3B
2K1C 110 942623PT 2K1B
2K3C 200 942624PT 2K3B
3K2C 300 942632PT 3K2B
4K1C 400 942643PT 4K1B
4K2C 500 942644PT 4K2B
4K2C1 500 942646PT 4K2B1
only for
the
4Z1600A
drive
4K3C 660 942645PT 4K3B
The particular type is fully compatible with the previous
type:
The mechanical contour is identical; only the con-
•
nector housing is slightly more compact.
The electrical signals are compatible.
•
The parameters for self-identification are identical ex-
•
cept for the order number and the type of transducer.
Innovations
• New rotor and stator electronics due to component
availability and to enable future (fully digital) spindles
(..)K..)D.
All (..)K(...)C transducers are supplied with angle en-
•
coders.
• Digital data communication between rotor and stator.
This further increases reliability compared to the exist-
ing system.
Replacing the cable
The (...)K(...)C transducer is supplied with a fixed cable
(instead of an M16 connector) in a standard length. This
length fits most applications, but can be extended or com-
pletely replaced if required.
Apex Tool Group
Replace- Replace-
ment for ment for
(...)K(...) B (...)K(...) B
1M1B
1M2B
1M3B
2M1B
2M3B
3M2B
4M1B
4M2B
4M3B
4M3B
P2589PL | 2022-08
Note
Electrostatically sensitive component
The electronic assemblies of this product
may be destroyed or already damaged by an
electrostatic discharge (ESD), which can
lead to immediate or subsequent failure.
► Follow the handling instructions.
► To avoid damage, make sure that there
is no potential difference between the
person and the product.
► Possibly install in an ESD-protected en-
vironment.
Recommendation for an ESD workplace:
electrically conductive work surfaces,
antistatic straps, appropriate furniture,
clothing, shoes, flooring and grounding
of all components.

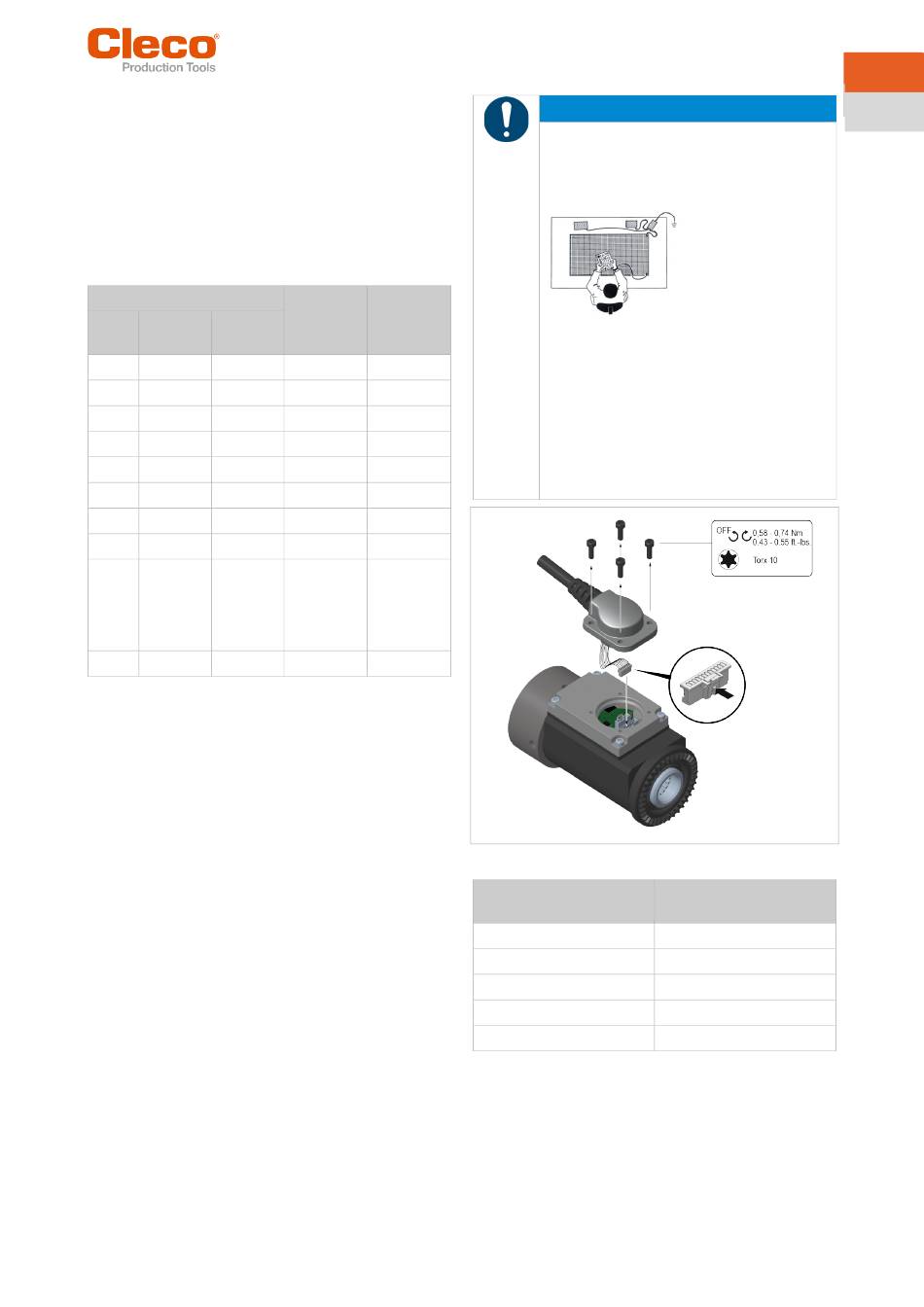

Fig. 1-1: Replacing the cable
Cable length
[mm]
250
350
450
550
650
Order No.
943259PT-002
943259PT-003
943259PT-004
943259PT-005
943259PT-006
