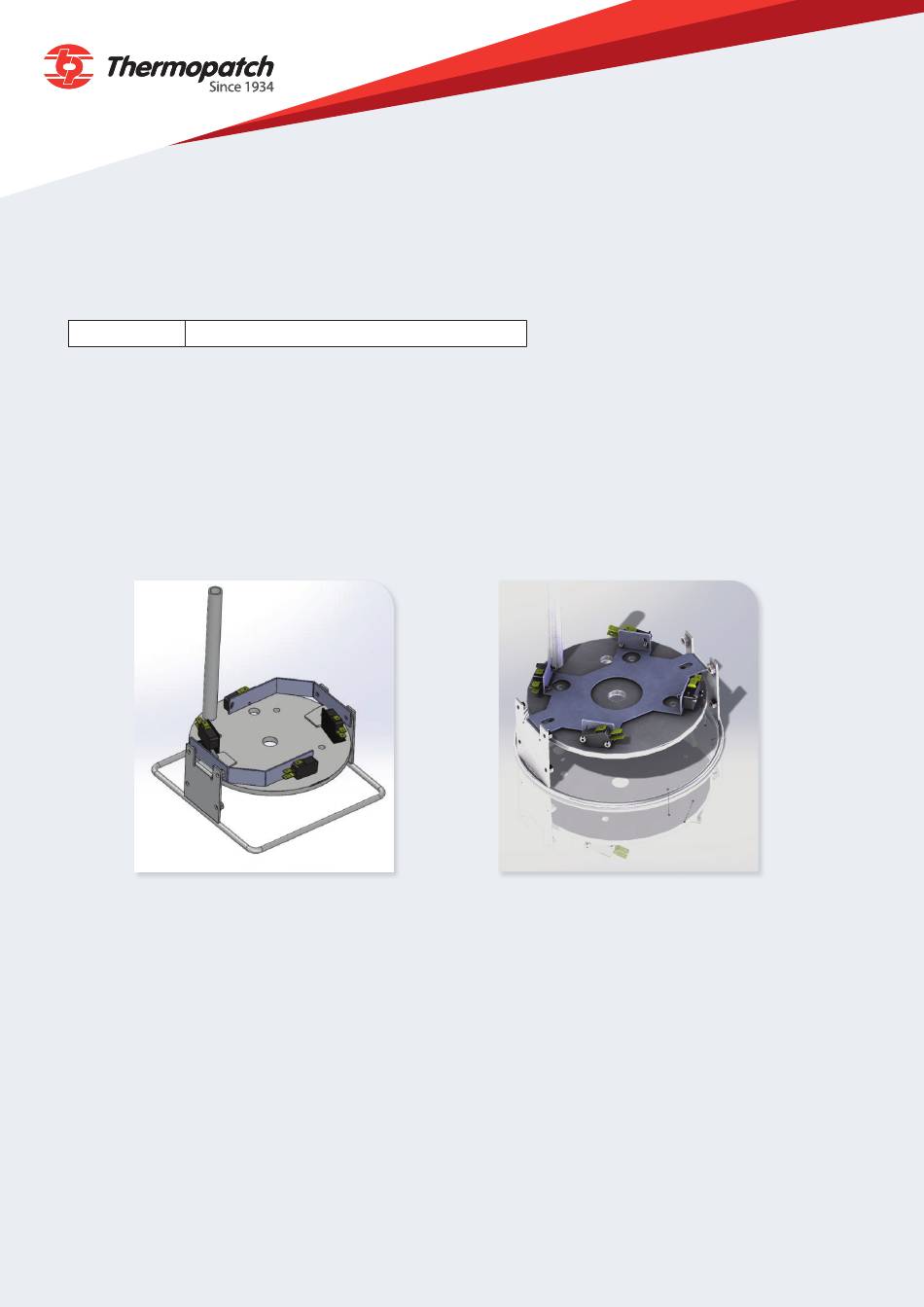

Drawing 03A for NL-15 R / SQR, SAFETY FRAME UPGRADE February 2017
From 2-2017 a modification of the part has been executed to solve the fault indicator, on the display (see
page 18. 6.5.9)
06
Safety switch interrupted or defective
2 x SPAMA-SU2-C1 have been replaced by 1 x SPAMA-SU2-C4 (the safety switch mounting plate)
In total 4 x SPAMA-SU2-B1 (Safety switch Omron V16-1-C5) are now used for the switches.
In the previous set, before February 2017, up this used to be 2 x SPAPEN-03-09 en 2 x SPAMA-SU2-B1.
Modifications on machines from productions before 2-2017 must be executed by qualified technicians;
take note that this is an important safety feature of the NL-15 machine.
Modifications are estimated to take up to 30 minutes.
Version before Februari 2017
Version since February 2017
27 27
