Dantherm CDF 40 Montageanleitung Seite 2

EN

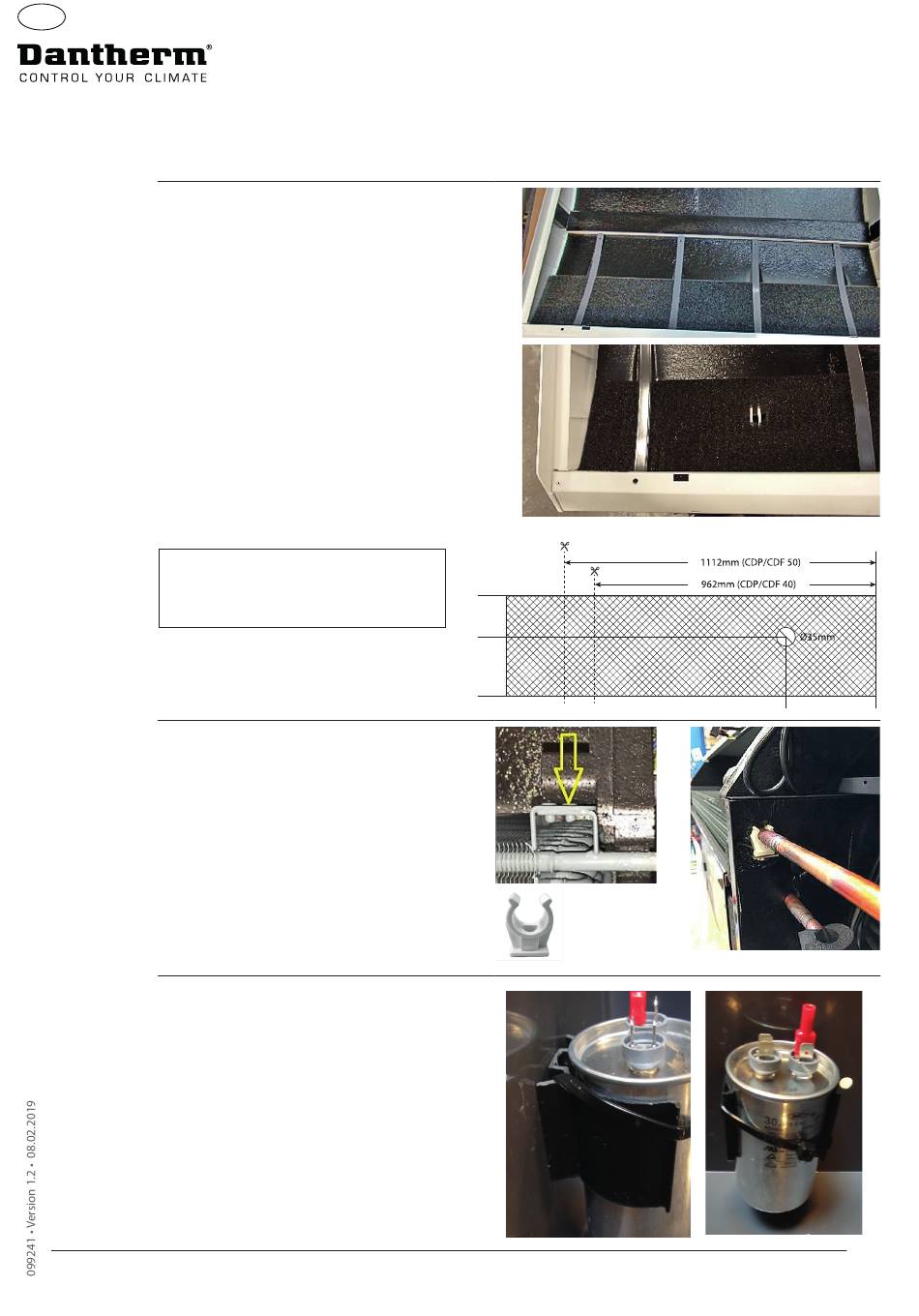

1.
Unpack the unit and remove the front.
Remove the PPI filter and replace with new as
per partslist.
The new PPI filter must be right up against both
ends of the cabinet.
Make sure that the hole is furthest away from the
front as shown.
Note: For CDP/CDF 40 and 50 the filters
must be cut according to this illustra-
tion.
2.
Make sure there is a bracket on the condenser
coil.
If not, mount the small aluminium bracket and
the
white plastic copper tube holder.
The bracket must be fixed onto the side panel
with the self-tapping screws.
3.
Fix the capacitor with a cable tie strip as shown.
2
Instructions
200mm
130mm
0mm
1237mm 1447mm
