Grinding and sanding operation (Fig. 15)
ALWAYS hold the tool firmly with one hand on housing and
the other on the side handle. Turn the tool on and then
apply the wheel or disc to the workpiece.
In general, keep the edge of the wheel or disc at an angle of
about 15 degrees to the workpiece surface.
During the break-in period with a new wheel, do not work
the grinder in the B direction or it will cut into the workpiece.
Once the edge of the wheel has been rounded off by use,
the wheel may be worked in both A and B direction.
CAUTION:
• Never run the tool without the abrasive disc. You may
seriously damage the pad.

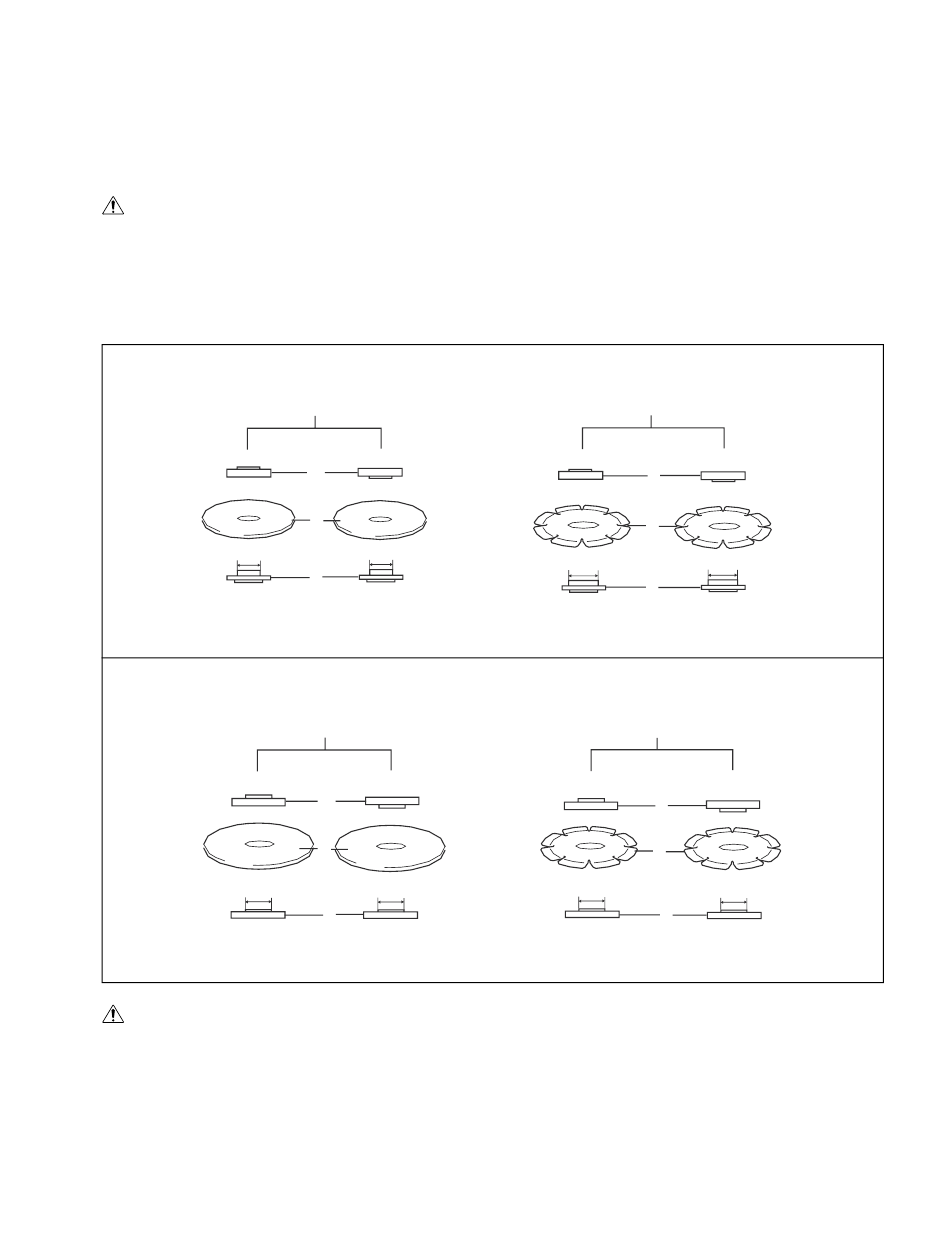

Operation with abrasive cut-off / diamond wheel (optional accessory) (Fig. 17)
The direction for mounting the lock nut and the inner flange varies by wheel thickness.
Refer to the table below.
100 mm (4")
Abrasive cut-off wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
16 mm (5/8")
1. Lock nut
115 mm (4 - 1/2") / 125 mm (5")
Abrasive cut-off wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
22.23 mm (7/8")
1. Lock nut
010848
WARNING:
• When using an abrasive cut-off / diamond wheel, be
sure to use only the special wheel guard designed for
use with cut-off wheels. (In some European countries,
when using a diamond wheel, the ordinary guard can
be used. Follow the regulations in your country.)
• NEVER use cut-off wheel for side grinding.
