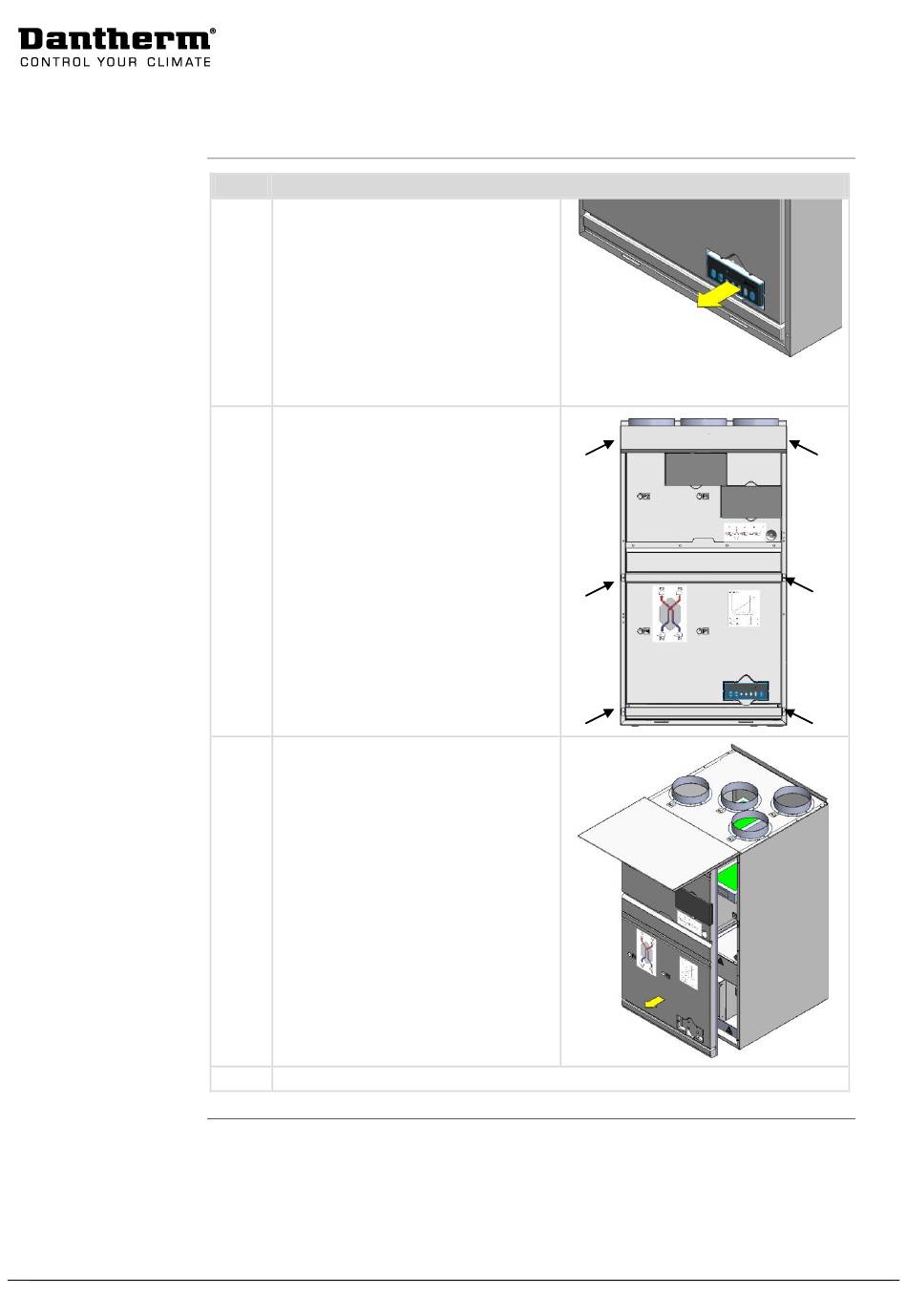

How to replace the exhaust fann,
Procedure, continued
8
Step
3 Remove the basic user panel from the
styrene front and let it hang down.
Disconnect the plug behind the bat-
tery cover and store the user panel
securely until the repair/maintenance
has been finished.
Note the wiring, as it is important to
position this correctly in the assem-
bly.
4 Disconnect the 3 cross bars by re-
moving the 6 pcs. 3 mm hex screws
5 Remove the styrene front
6 Disconnect the to fan cables from the print as well as the earth cable
continued
