SET - UP

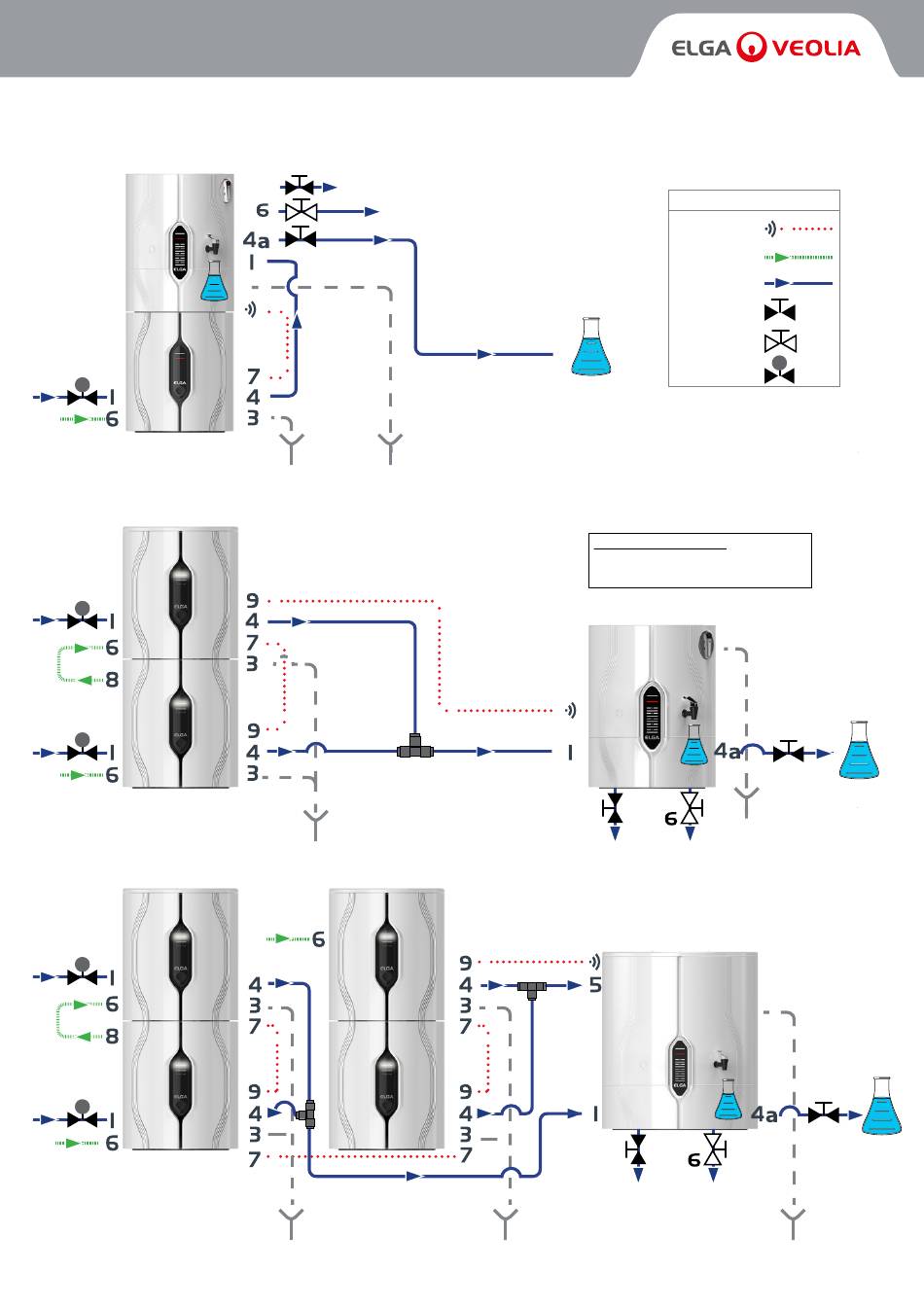

SYSTEM CONFIGURATION

Example one: 1 x PURELAB® Chorus 3 (RO) + 15L or 30L Reservoir.
Feedwater
Inlet
Example two: 2 x PURELAB® Chorus 3 (RO) + 60L Reservoir.
Feedwater
Inlet
Feedwater
Inlet
Example three: 4 x PURELAB® Chorus 3 (RO) + 100L Reservoir.
Feedwater
Inlet
Feedwater
Inlet
Further advice on configuration connections.
Outlet
4b
High Flow
J2
Drain Overflow
Maximum Distance 5000mm
Drain
Drain
Outlet
Product
Outlet
J2
4b
Oulet
J2
Oulet
Drain
Key
COMMS
Power
Water
Value
Shut Off Tap
Regulator
Position the reservoir
• MAX H. 2000mm above bench
• MAX D 1000mm below bench
Overflow
High flow Outlet
4b
High flow Outlet
Product
Outlet
Product
Outlet
Overflow
