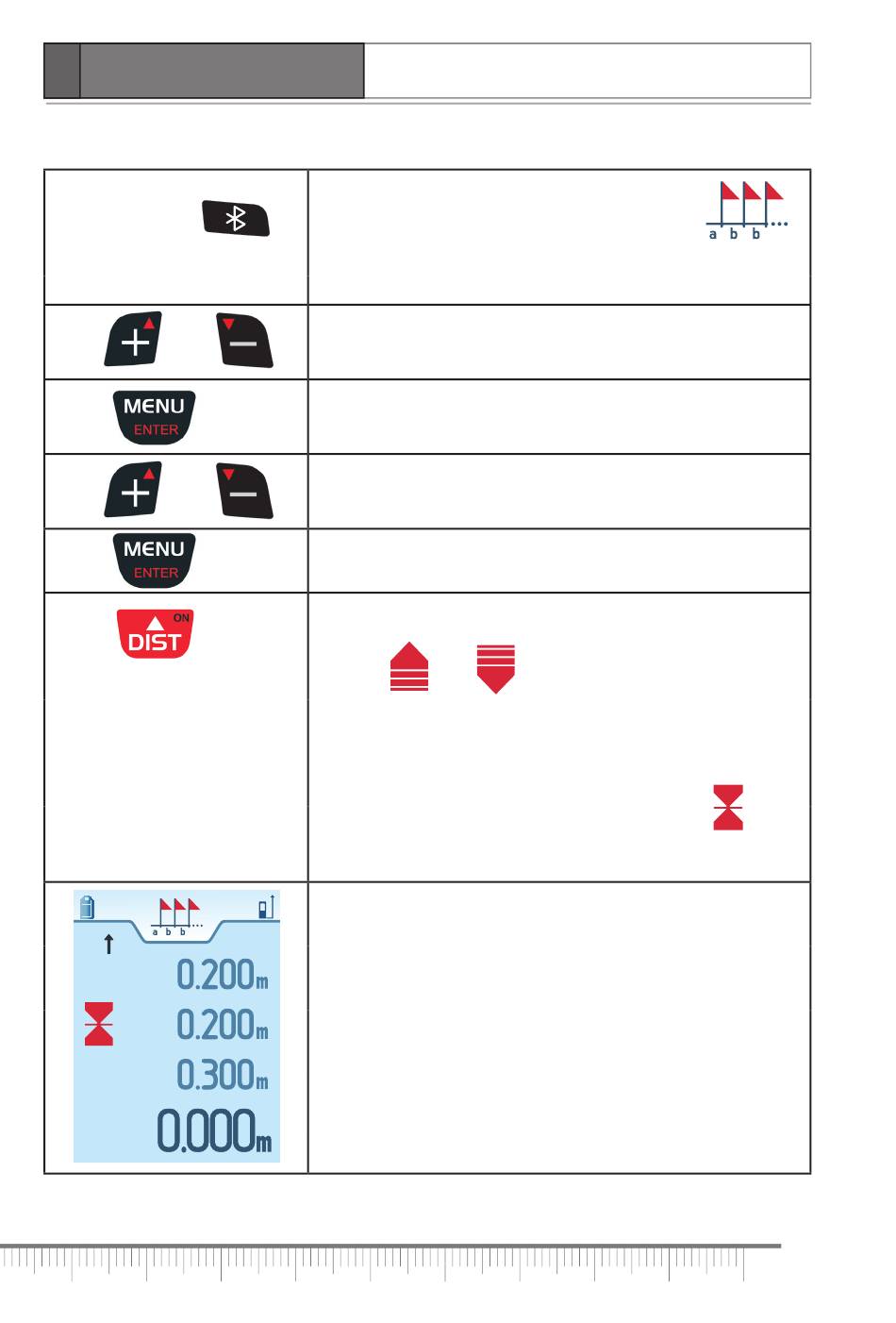

Stake out
Press and hold
during 2 seconds
Press or
Press
Press or
Press
Press
Activate stake out function.
appears on the display.
Set the value of distance А*.
Confirm the value of distance A.
Set the value of distance В*.
Confirm the value of distance B.
Start taking measurements. Laser beam is blinking.
Move the product slowly along the stake-out line.
Arrows and
in what direction it is required to move the product
in order to reach stake-out point. If sound signal is
on, when approaching the stake-out point to ±0,1
m the product emits sound signal. When reaching
the stake-out point to ±0,001 m symbol
appears on the display and sound signal tonality is
changed.
distance between the object and stake-out
point of last measured distance. This value will
increase after each next measurement by the
–
value of last taken measurement
– value of distance A
– value of distance В
– current distance to the next stake-out point
