Electrical Connection.
Legal Requirements
The installer must check that:
• The voltage and cycles of the mains supply
correspond to that indicated on the rating
plate.
• The electrical installation can stand the
maximum power indicated on the rating
plate.
• To connect the oven to the mains, the fitter
must use a H05RR-F, H05SS-F or H07RN-F

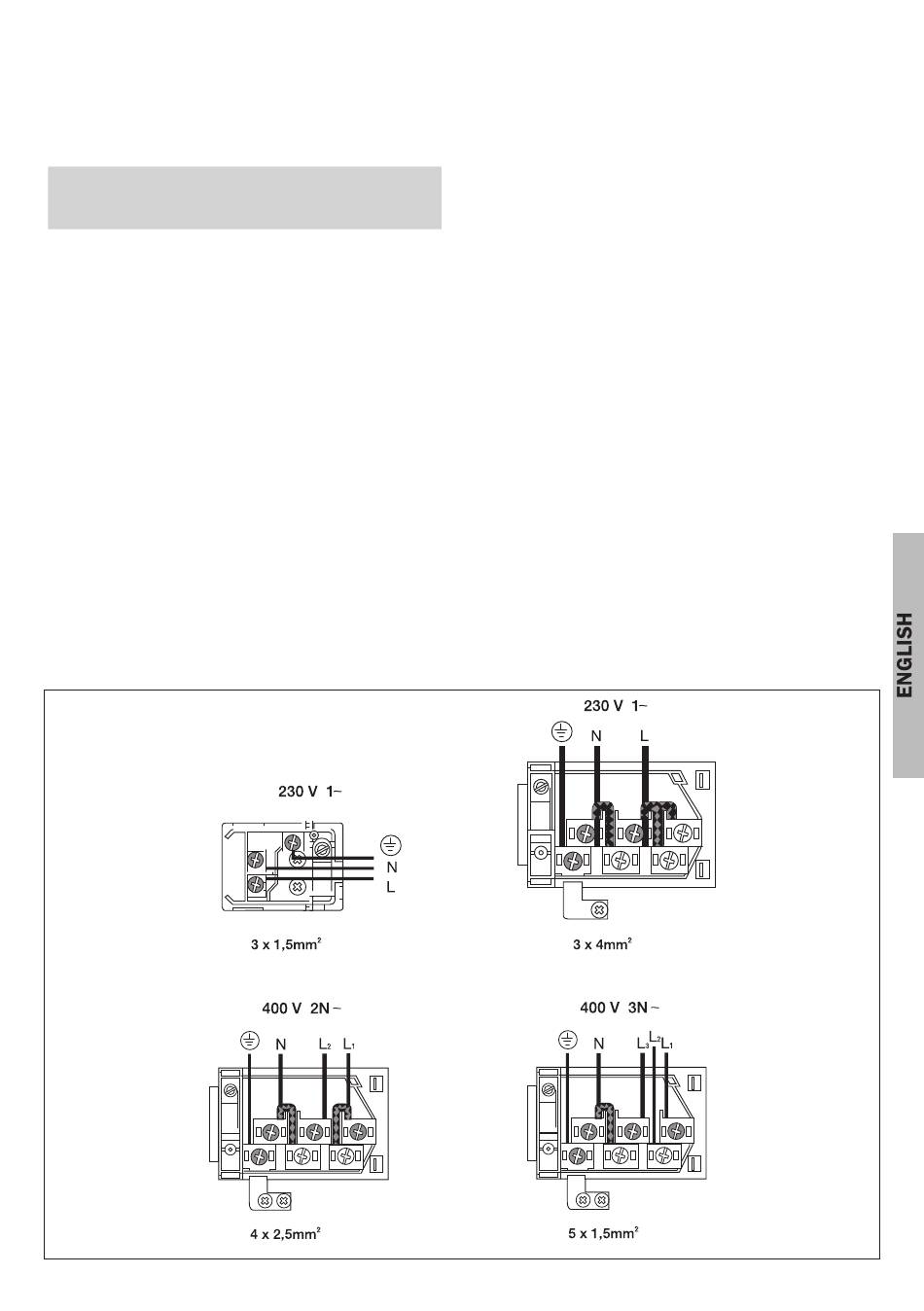

power cable. The connection diagram is
shown in the following figure:
• The electrical connection has adequate
earthing in accordance with regulations in
force.
• The connection must be carried out with an
omnipolar switch, of an adequate size for
the current drawn. There must be a
minimum aperture between contacts of 3
mm to enable disconnection in the case of
emergency, cleaning or bulb exchange.
Under no circumstances must the earth
wire pass through this switch.
• This switch may be replaced with a plug,
which must always be accessible in normal
working conditions.
After connecting the electricity, check that all
the electrical parts of the oven are working.
This appliance must be installed by a licensed
electrician in accordance with AS/NZS 3000
wiring rules and any local wiring rules, and a
Cer tificate of Compliance
completion. The
interconnecting cables required for installation
must be rated at a minimum 15A.
issued upon
main supply and
