Follow the rules below to construct the electrical installation relative of the PSS:
• Put in a switch, to turn on and shut off the PSS (not provided); position the switch so that it can be easily reached if it
is necessary to shut-off the device to prevent dangerous situations.
• Insert a fuse on the PSS power supply line (not provided).
• Correctly size wire cross section for PSS power supply wires, based on length.
• Correctly size cross section for power supply cables of the thruster based on the length of the cables and the
absorption of the motor installed.
• Power the PSS only after verifying that all electrical connections are exact.
• Insert a fuse (not supplied) on the +B1 and +B2 lines based on the absorption of the thruster motor.
• Insert a fuse on the +Ba line based on the maximum current delivered by the alternator.
WARNING: using wires of unsuitable section and not connecting correctly the terminals or the electric couplings
can result in a dangerous overheating of the connection terminals and the wires.

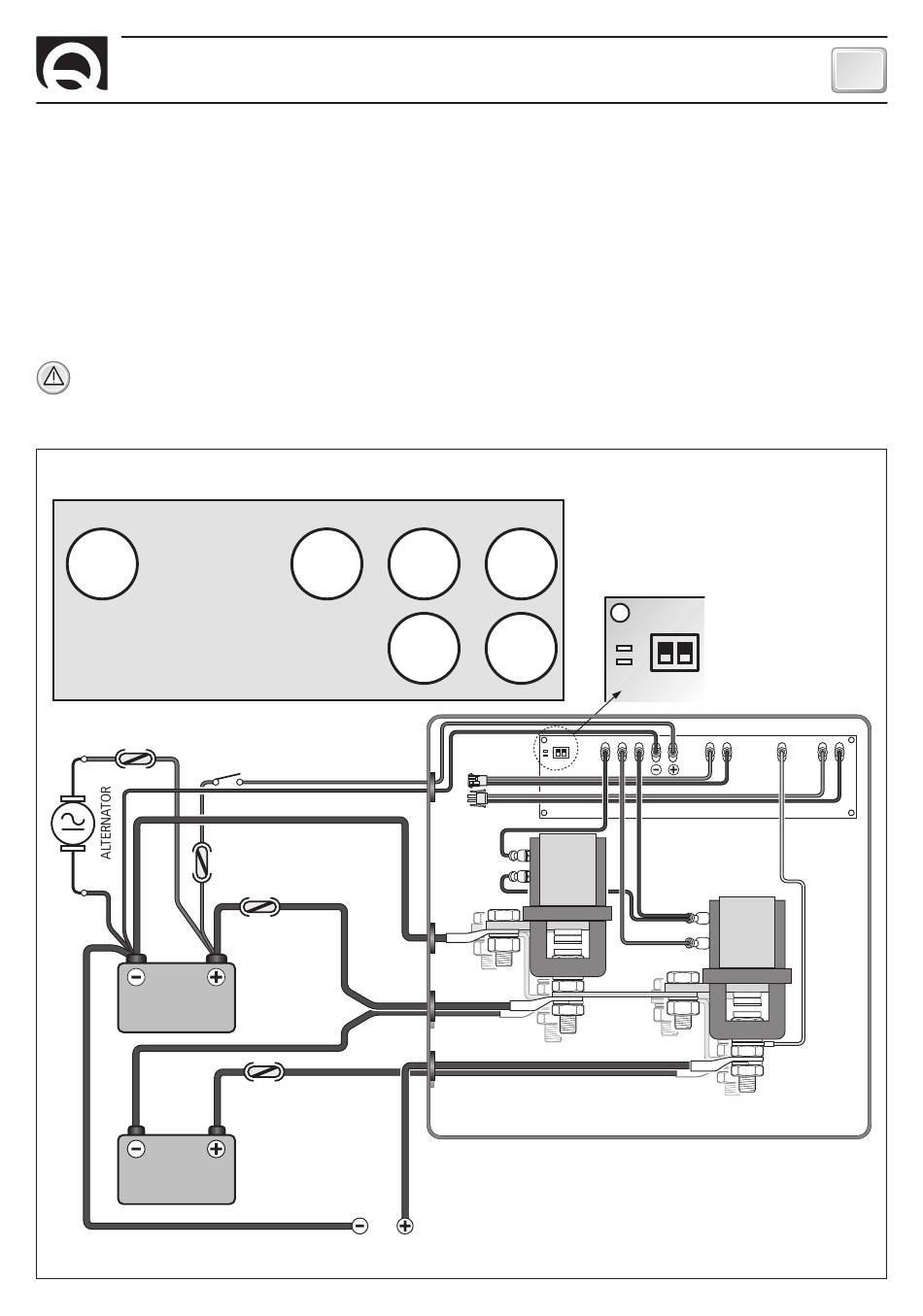

ELECTRICAL CONNECTIONS DIAGRAM
from to
SX - DX TCD / THRUSTER
ELECTRONIC
CIRCUIT BOARD
SUPPLY
FUSE
SWITCH
+B
A
- B
A
BATTERY
B2 GROUP
12V (24V)
BATTERY
B1 GROUP
12V (24V)
PSS PARALLEL SERIE SWITCH - REV000A
-B2
FUSE
FUSE
FUSE
24V (48V)
OUT
+B2
+B
-B1 +B1
LED
to the TCD
LED
to the THRUSTER
T2
-B2
+B2
-B1
+B
+B1
INSTALLATION
Red
LED
LED
Green
T1
PSS
GB
