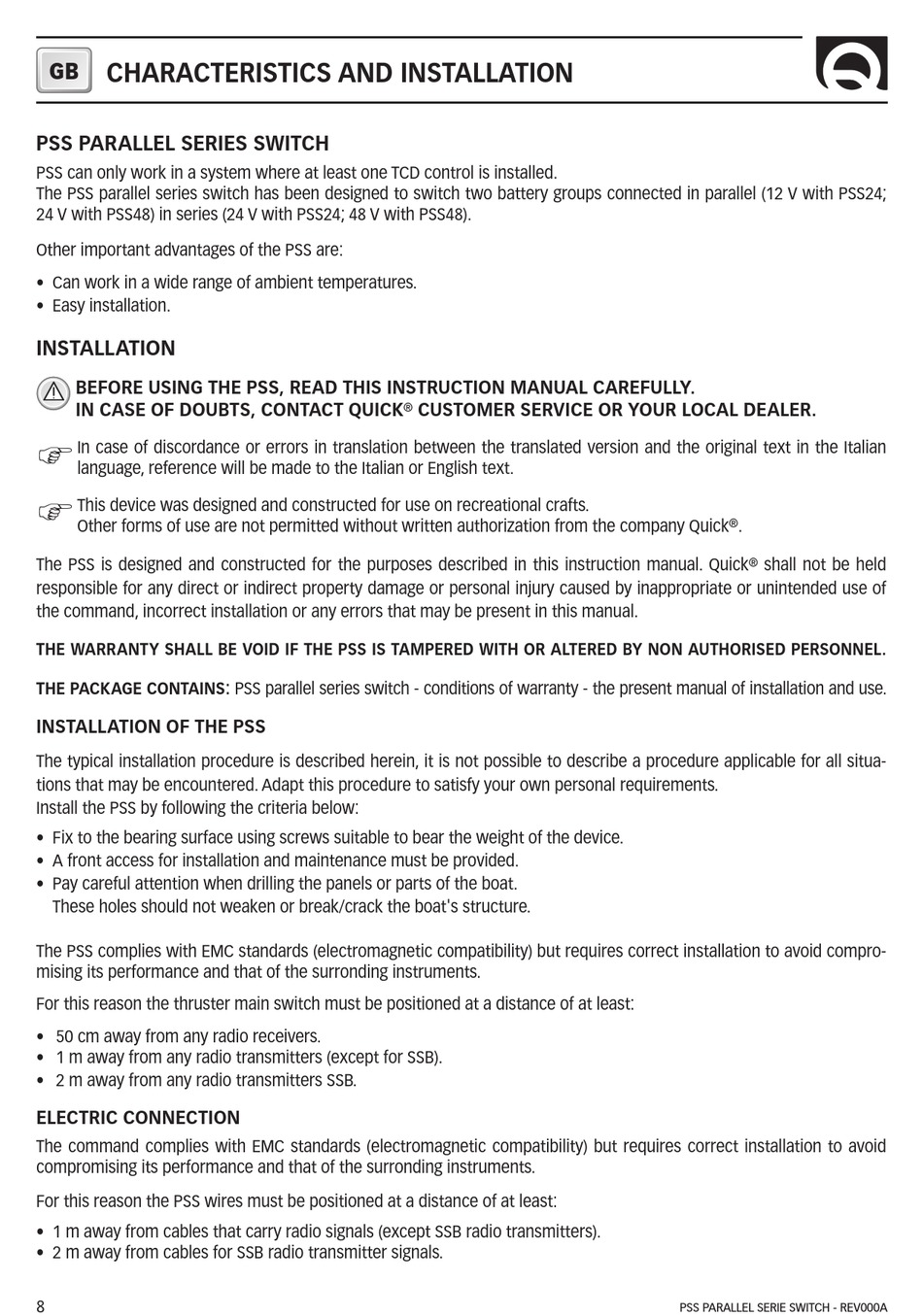

CHARACTERISTICS AND INSTALLATION
GB
PSS PARALLEL SERIES SWITCH
PSS can only work in a system where at least one TCD control is installed.
The PSS parallel series switch has been designed to switch two battery groups connected in parallel (12 V with PSS24;
24 V with PSS48) in series (24 V with PSS24; 48 V with PSS48).
Other important advantages of the PSS are:
• Can work in a wide range of ambient temperatures.
• Easy installation.
INSTALLATION
BEFORE USING THE PSS, READ THIS INSTRUCTION MANUAL CAREFULLY.
IN CASE OF DOUBTS, CONTACT QUICK
F
In case of discordance or errors in translation between the translated version and the original text in the Italian
language, reference will be made to the Italian or English text.
F
This device was designed and constructed for use on recreational crafts.
Other forms of use are not permitted without written authorization from the company Quick
The PSS is designed and constructed for the purposes described in this instruction manual. Quick
responsible for any direct or indirect property damage or personal injury caused by inappropriate or unintended use of
the command, incorrect installation or any errors that may be present in this manual.
THE WARRANTY SHALL BE VOID IF THE PSS IS TAMPERED WITH OR ALTERED BY NON AUTHORISED PERSONNEL.
THE PACKAGE CONTAINS: PSS parallel series switch - conditions of warranty - the present manual of installation and use.
INSTALLATION OF THE PSS
The typical installation procedure is described herein, it is not possible to describe a procedure applicable for all situa-
tions that may be encountered. Adapt this procedure to satisfy your own personal requirements.
Install the PSS by following the criteria below:
• Fix to the bearing surface using screws suitable to bear the weight of the device.
• A front access for installation and maintenance must be provided.
• Pay careful attention when drilling the panels or parts of the boat.
These holes should not weaken or break/crack the boat's structure.
The PSS complies with EMC standards (electromagnetic compatibility) but requires correct installation to avoid compro-
mising its performance and that of the surronding instruments.
For this reason the thruster main switch must be positioned at a distance of at least:
• 50 cm away from any radio receivers.
• 1 m away from any radio transmitters (except for SSB).
• 2 m away from any radio transmitters SSB.
ELECTRIC CONNECTION
The command complies with EMC standards (electromagnetic compatibility) but requires correct installation to avoid
compromising its performance and that of the surronding instruments.
For this reason the PSS wires must be positioned at a distance of at least:
• 1 m away from cables that carry radio signals (except SSB radio transmitters).
• 2 m away from cables for SSB radio transmitter signals.
8
CUSTOMER SERVICE OR YOUR LOCAL DEALER.
®
®
.
®
shall not be held
PSS PARALLEL SERIE SWITCH - REV000A
