3. Installation and operation

Please switch off all components of your system and connect the
receiver/amplifier/active speakers and your tonearm(s).
1
2

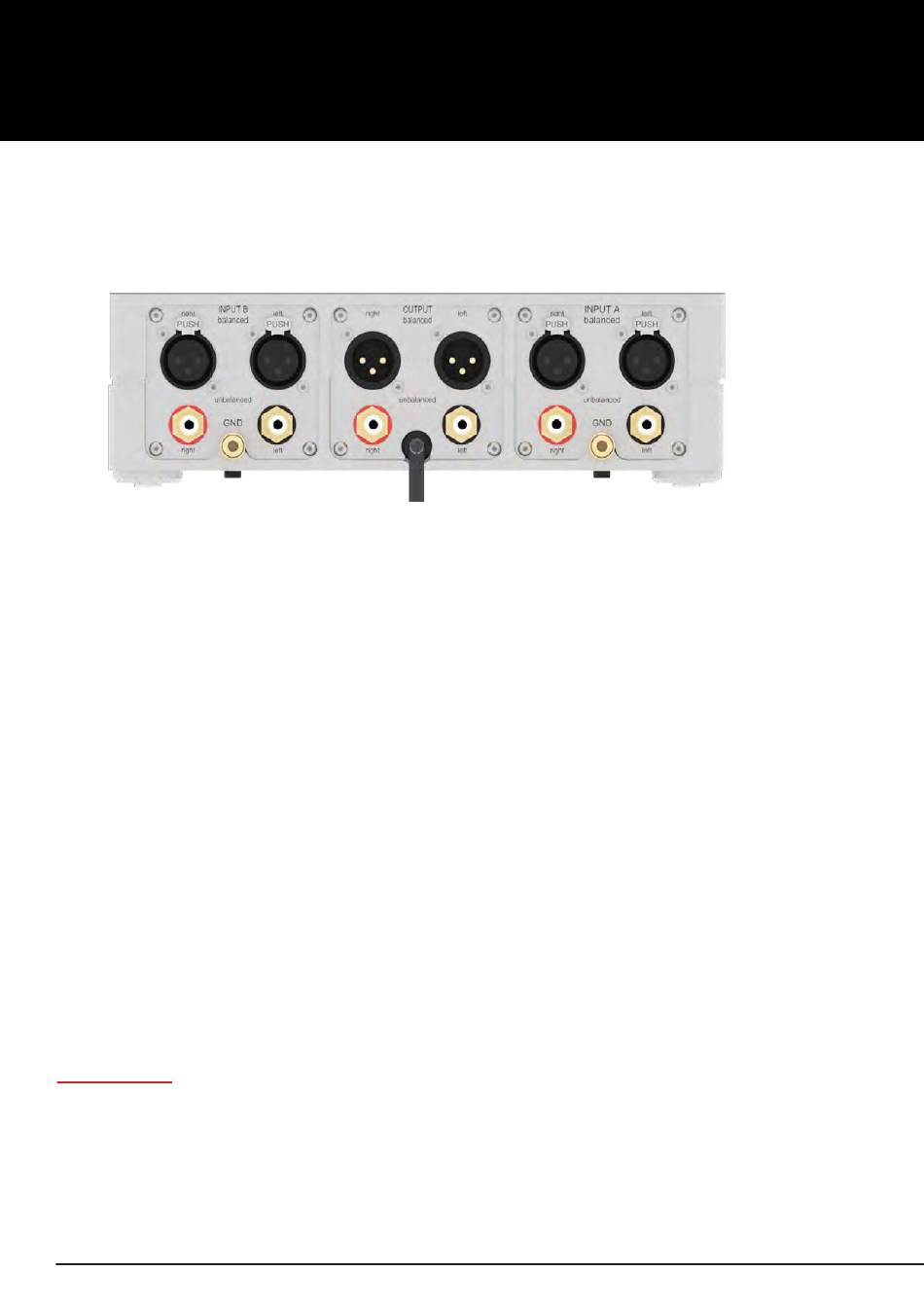

Pic. 5: Rear view of the phono stage
Explanation of the connections on the back of the phono stage (Pic. 5)
1
Balanced XLR input (each Input A/B)
Selection must be set manually via „input selector" on the bottom.
2
Unbalanced input RCA (each Input A/B)
Selection must be set manually via „input selector" on the bottom.
3
Ground connection (each Input A/B)
4
Balanced output XLR
Both outputs are active and usable at the same time.
5
Unbalanced output RCA
Both outputs are active and usable at the same time.
Now you can turn on the balance reference phono at the back of the power supply.
The lights of the „Input A / Input B" buttons turn on, as do the 3 LEDs on the front of the power
supply. The device is now in standby mode.
Please note:
Do not cover the top of the device during operation to ensure sufficient air supply for cooling!
