1. Installation and setup

Before you start, make sure that the tonearm is correctly installed on your turntable.
To proceed with installation and set-up, please see the rear panel of your Clearaudio
phono inside.

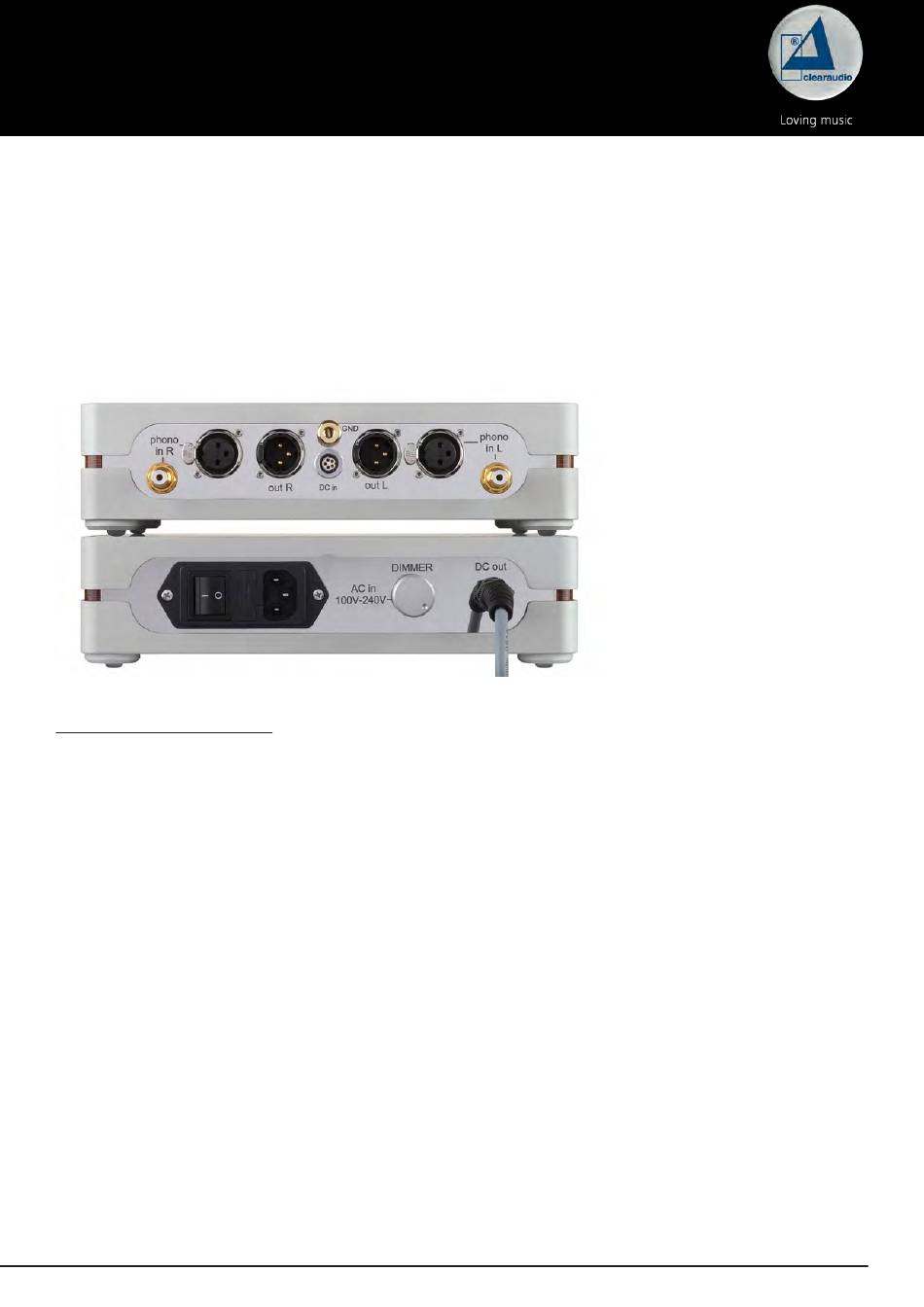

Rear view:
2
Pic. 1: Rear view
Please proceed as follows:
1. Connect the tonearm ground wire to the "GND" terminal.
2. Connect the tonearm to the input marked with "phono in R / phono in L". You can use either RCA
or XLR inputs. To avoid hum problems by using the RCA Phono input, please make sure that the
RCA or XLR plugs and the tonearm ground wire are securely connected.
3. Plug the XLR output cable into the XLR output sockets and connect them to your linestage
preamplifier.
4. Connect the power supply provided, to the socket marked "DC in" on the
main RIAA unit, then connect this power supply to your mains power supply and switch the
button on "I".
5. With "DIMMER" you can adjust the light intensity of the blue LED-Ring on the front side.
Important: Please note that you should use only the Clearaudio power supply provided.
