User manual / Bedienungsanleitung

5. Remote control

5.1 Remote control functions

1
2
3
4

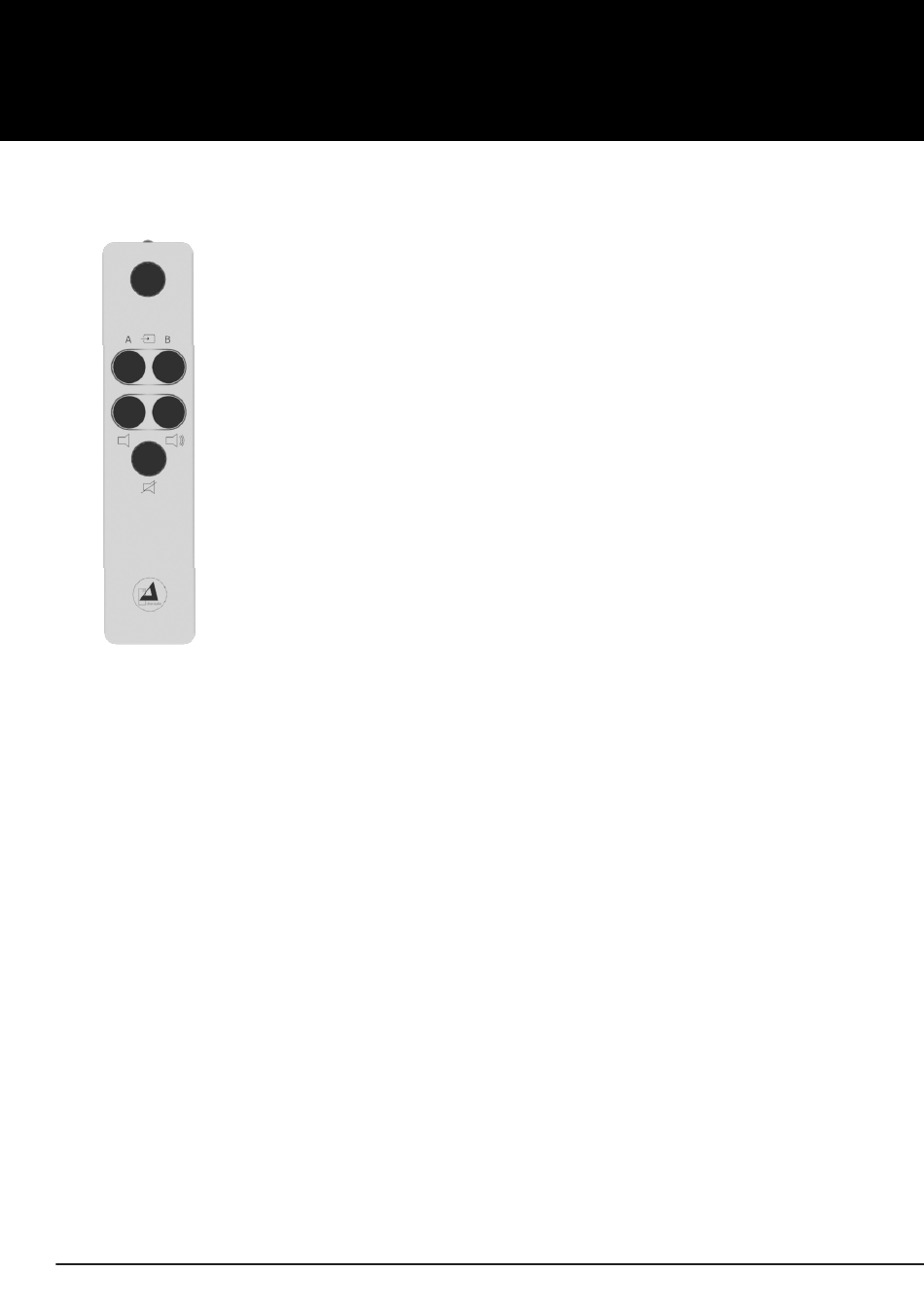

Pic. 7: Remote control

5.2 Changing the battery

Remove the cover on the back of the remote control. This is secured with inside magnets and we
recommend a small screwdriver to pry open the cover.
Using a screwdriver, the 4 screws on the circuit board must now be removed.
Now turn the upper part, including the circuit board, and remove the circuit board to gain access to
the battery compartment. When replacing the battery, make sure you insert it correctly.
Now you can put the remote control back together.
Page / Seite 12
1
Standby:
Puts the device into standby mode. The buttons for both inputs
flash twice and then light up continuously again. To play music
again, select the respective input via „Input A / Input B".
2
Select Input A / Input B:
Allows you to easily switch between the connected tonearms with
their respective settings.
If the device is in standby mode, this is also deactivated by
selecting the respective input. When you press the button, the
Input buttons of the phono stage starts flashing, signaling that the
phono stage is starting up. With music output, the button of the
respective input lights up continuously.
3
Volume controls:
Allows gain adjustment.
4

Mute function:

To activate the „mute function", the buttons of the respective input
flashes on the phono stage.
Press the button again to deactivate the „mute function".
The button of the input is now continuously lit again.
© clearaudio electronic GmbH, 2022-10
