3.1
Load capacity setting for MM operation
In the basic position (both DIP switches not activated) there is a capacitance of 47pF.
If several controllers are activated at the same time, the capacity is connected in parallel.
3.2
Load resistance setting for MC operation
The choice of resistance should be based on the technical data of the respective pickup.
If several controllers are activated at the same time, the resistors are connected in parallel.
To activate the required load capacitance / load resistance, the sliders must be pushed to the middle
of the text, see red arrow in picture 3.
Setting example:
MM operation: Activated load capacitance 250pF
MC operation: Activated load resistance 500 ohms

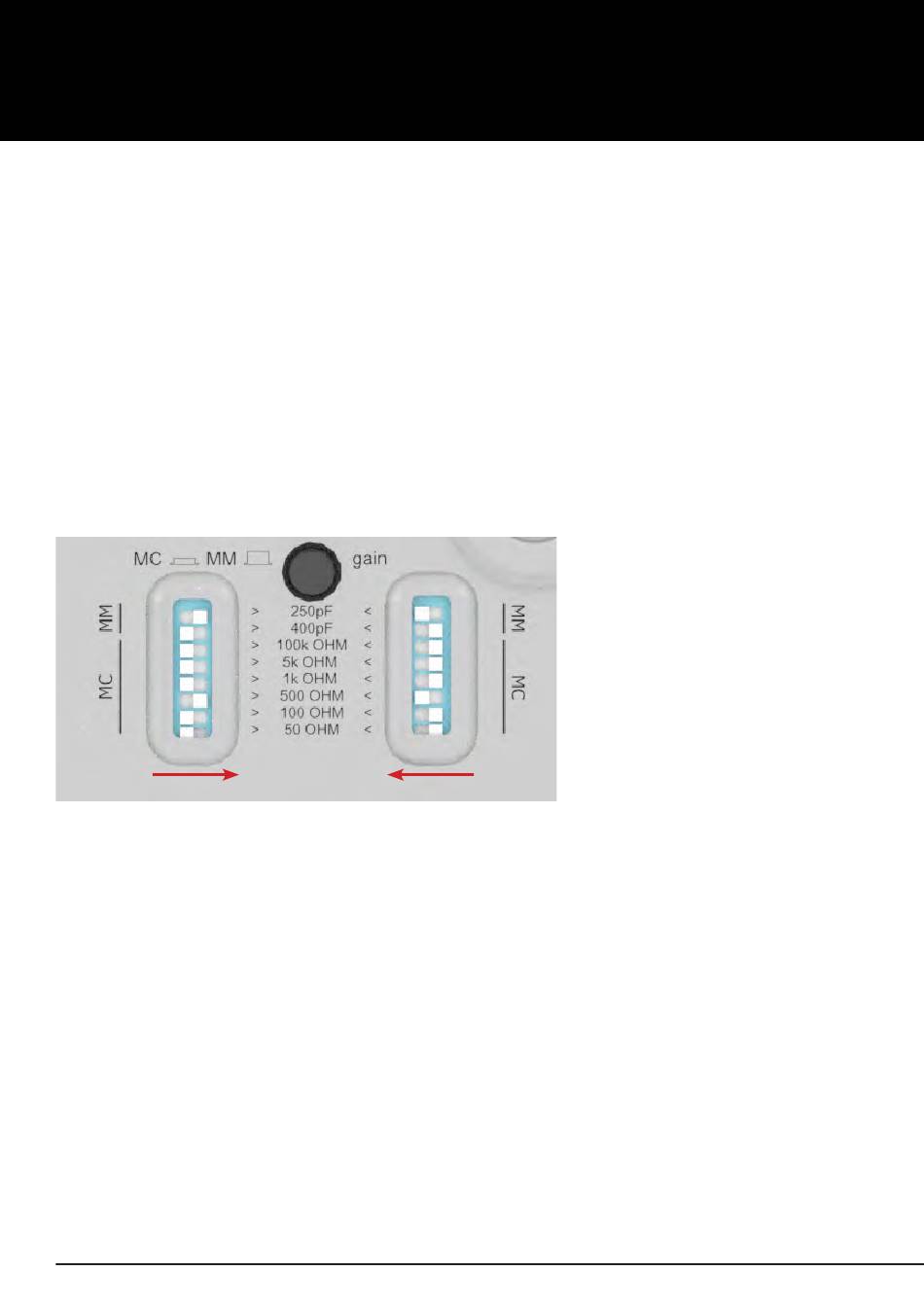

Pic. 3: Detailed view of the load capacity / load resistance setting
4

Subsonic filter

The subsonic filter suppresses possible noise caused by turntable and/or tonearm resonances.
• Subsonic filter is on: „subsonic off/on" switch is pressed.
• Subsonic filter is off: „subsonic off/on" switch is not pressed.
5
Selection Mono / Stereo
• Mono mode: Button is pressed
• Stereo mode: Button is not pressed.
6
Brightness
With the help of a small screwdriver, you can adjust the brightness of the 3 LEDs on the front of
the power supply.
