2. Set-up adjustments

balance reference phono
The
for channel separation. This is achieved through the strictly channel-separated structure of the two
amplifier stages.
Please note that the settings for each tonearm (Input A / Input B) are made independently.

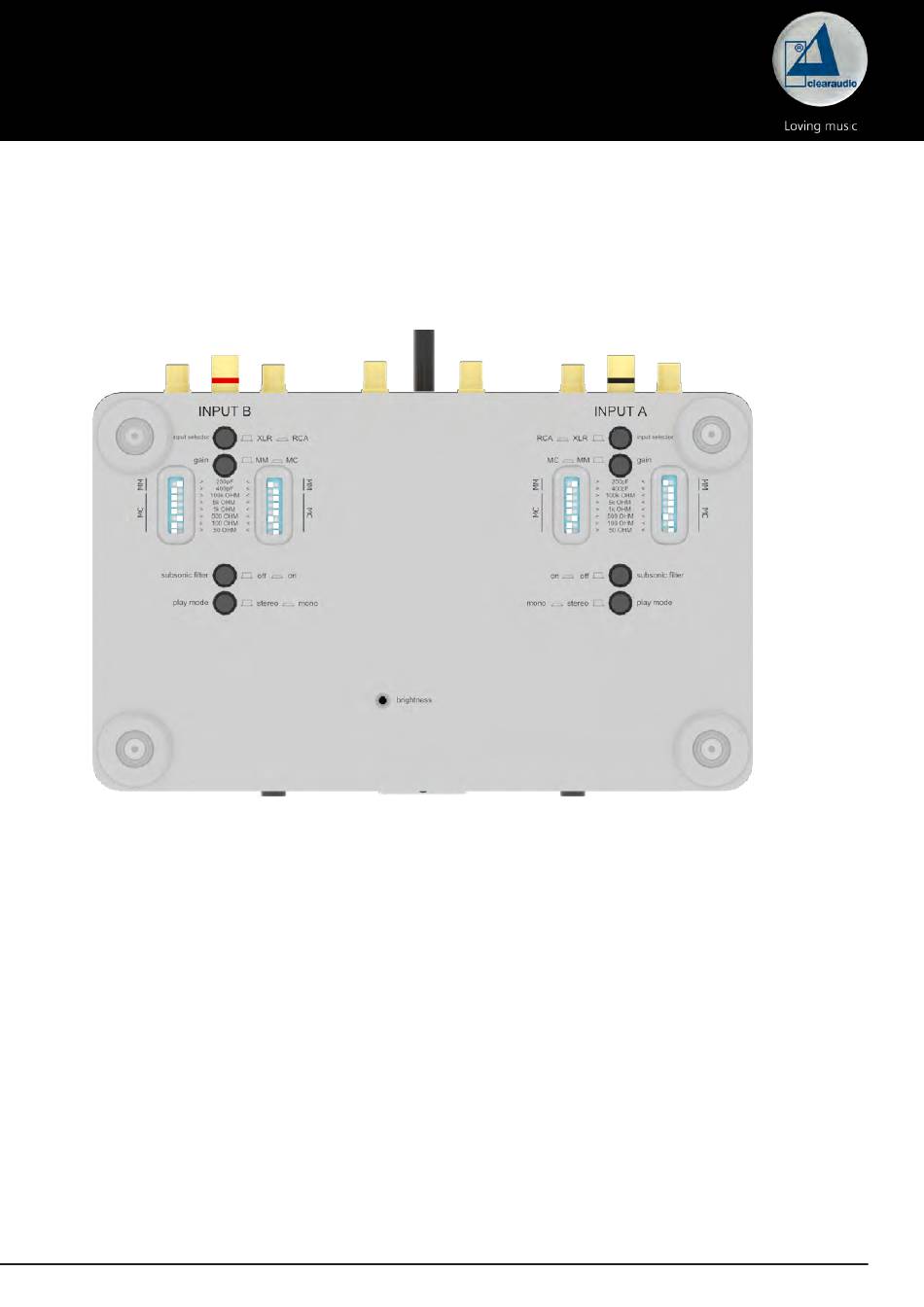

Pic. 2: View of the bottom plate of the phono stage
Details of the adjustment and control options on the underside (Example on Input A)
(Pic.2)
1
Input selector (selction between balanced / unbalanced mode)
• Balanced / symmetrical operation (XLR): Switch is not pressed,
(use balanced XLR connectors for the input!).
• Unbalanced / unsymmetrical operation (RCA): Switch is pressed,
(use unbalanced phono plugs for input!).
2
Gain (Selection of MM/MC cartridge mode)
Activates the respective controls for fine adjustment under point 3
• MM operation: "gain" switch not pressed (impedance = 47 kOhm/ choice).
• MC operation: "gain" switch pressed
(impedance, setting is made via DIP switch, see point 3).
Made in Germany
phono preamplifier achieves the best possible measurement values
6
1
2
3.1
3.2
4
5
