User manual / Bedienungsanleitung
7
8

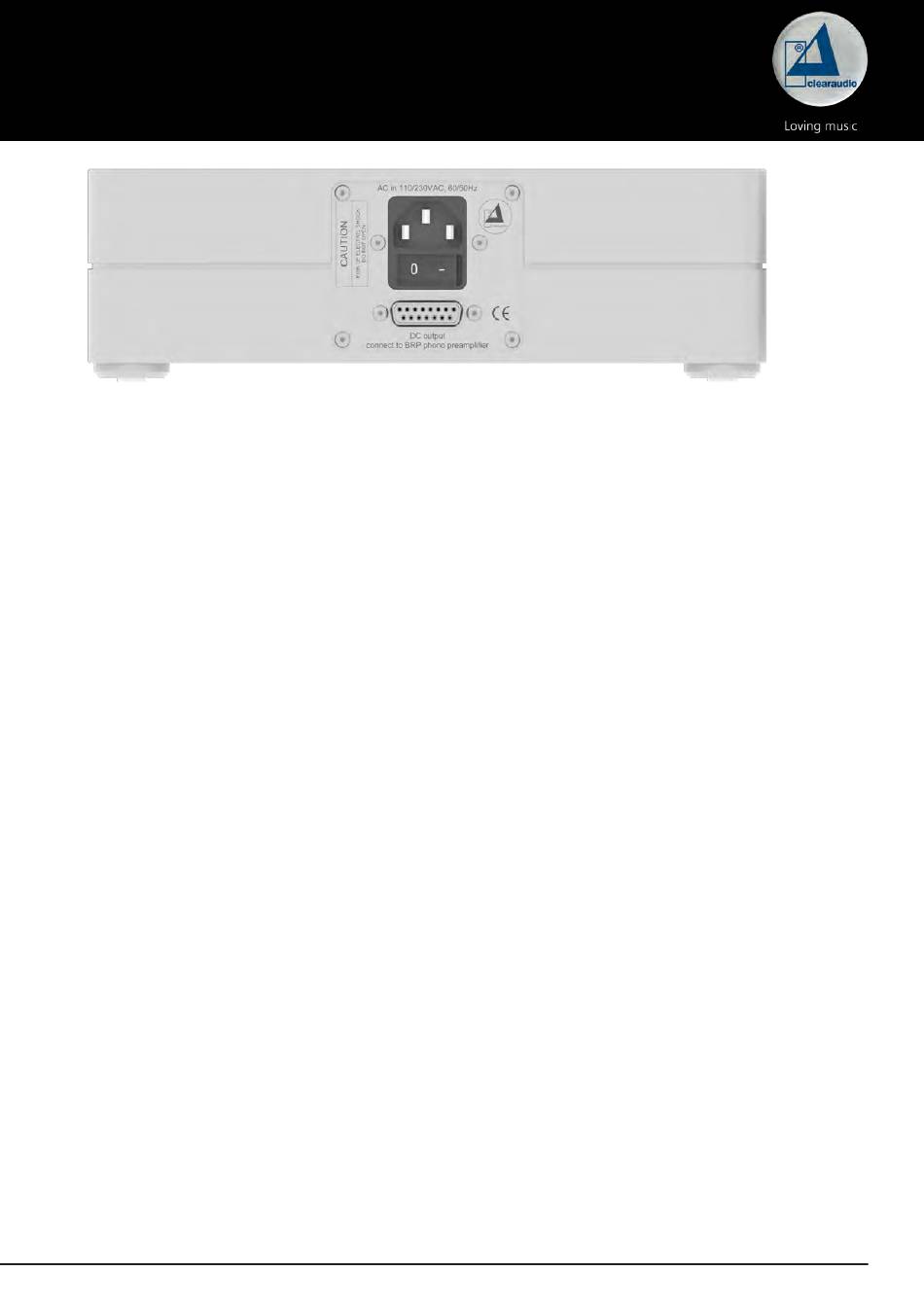

Pic. 4: Rear view of the power supply
Explanation of the connections on the rear of the power supply (Pic. 4)
7
Power connector
On and off switch with mains socket.
8
D Sub connectors
Connection with amplifier unit.
balance reference phono
Now connect the with the 15-pin D-Sub plug and the power supply.
Please note:
To protect your loudspeakers from any damage, please make sure that your power
amplifier(s) are always switched off when you are connecting the interconnects to or
balance reference phono
from the phono stage.
balance reference
Before adjusting any settings, be sure to switch off the power of the
phono
using the switch on the rear panel of the power supply.
