Quax Basic Baby Handbuch Seite 17

05 05 1200BIS-0xx
00 09 14
Natural Mokka Milk

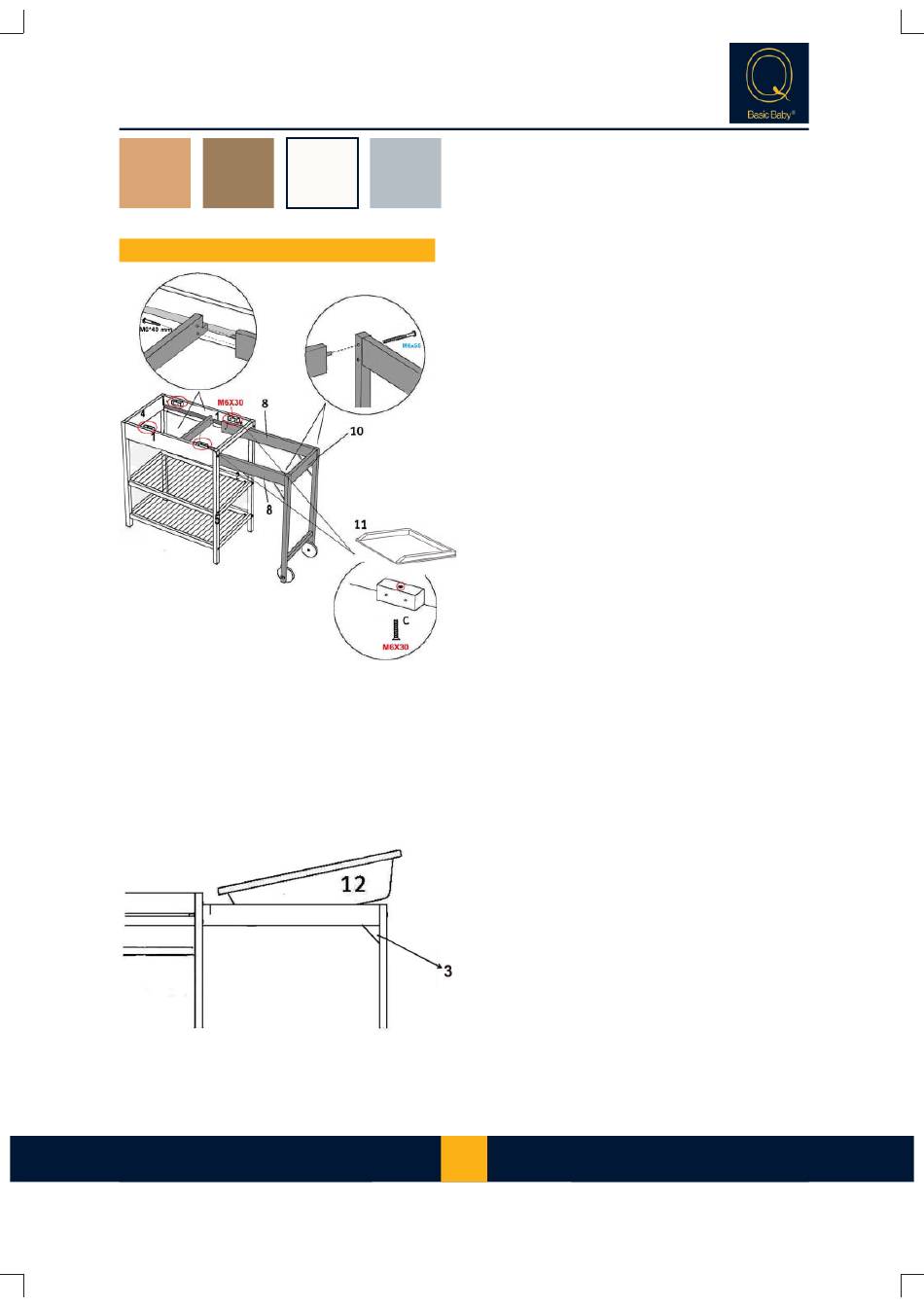

4. Assembling the cabinet
Step 3 : use the parts of step 2, the bath tube 12 and the changing pad
Open the bathing cabinet and push the bath tube on the bathstructure.
Badmeubel type 1
Bade-Wickelregal Typ 1
info@basicbaby.be
18
M.Grey
Step 1 : use the parts 1, 4, 5, both shelves 2 and
the bolts M6*55 mm
Push the two side laths 1 with their wooden dowels
into the provided holes in the legframes 4 and 5.
Insert the bolts through the holes provided on the
outside of the legframes and tighten softly. Insert
the two shelves 2 between the legframes and in
front of the provided openings, insert the bolts and
and tighten softly.
Step 2 : use the parts of step 1, the parts 3, 7, 8,
10, 11 and the bolts M6*55 mm and M6*40 mm
Push the two side laths 8 with their wooden dowels
into the provided holes in the legframe 10. Insert
the bolts M6*55 through the holes provided on the
outside of the legframe and tighten softly.
Insert the rear lath 7 of the tube structure into the
grooves on the sides of the bathing cabinet. Push
the tube structure with its dowels in the provided
openings on the rear lath, inserts the bolts M6*40
and tighten softly.
Place the triangles 3 in the front corners of the tube
structure, push the bolts M6*55 through the pro-
vided holes and tighten well.
Tighten now all connections.
Place the top 11 on its provided place, insert the
four bolts M6*30 mm through the holes provided on
the underside of the wooden supports and tighten
fi rmly.
17
By Quax nv
Karel Picquélaan 84
B-9800 Deinze
T 00 32 9 380 80 95
Meuble de bain type 1
Bathing cabinet type 1
www.basicbaby.be
