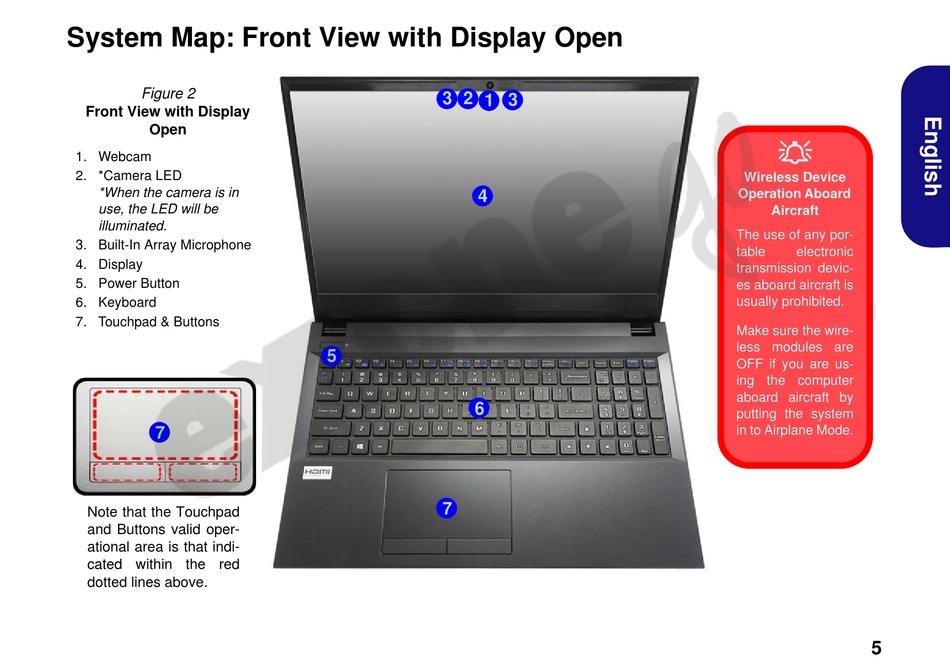

System Map: Front View with Display Open

Figure 2
Front View with Display
Open
1. Webcam
2. *Camera LED
*When the camera is in
use, the LED will be
illuminated.
3. Built-In Array Microphone
4. Display
5. Power Button
6. Keyboard
7. Touchpad & Buttons
7
Note that the Touchpad
and Buttons valid oper-
ational area is that indi-
cated within the red
dotted lines above.
3 2 1
4
5
6
7
3

Wireless Device
Operation Aboard
Aircraft
The use of any por-
table electronic
transmission devic-
es aboard aircraft is
usually prohibited.
Make sure the wire-
less modules are
OFF if you are us-
ing the computer
aboard aircraft by
putting the system
7
in to Airplane Mode.
5
