System Map: Front, Left & Right Views
3
10
11

Disc Emergency Eject
If you need to manually eject a disc
(e.g. due to an unexpected power inter-
ruption) you may push the end of a
straightened paper clip into the emer-
gency eject hole. Do not use a sharp-
ened pencil or similar object that may
break and become lodged in the hole.
Overheating
To prevent your computer from over-
heating make sure nothing blocks any
vent while the computer is in use.
8
1
2
6
5
4
12
12
A
1. LED Indicators
2. Multi-in-1 Card Reader
3. DC-In Jack
4. RJ-45 LAN Jack
5. External Monitor Port
6. USB 3.0 (USB 3.1 Gen 1)
Type-C Port
7. Vent
8. HDMI-Out Port
Front
Left
7
Right
13

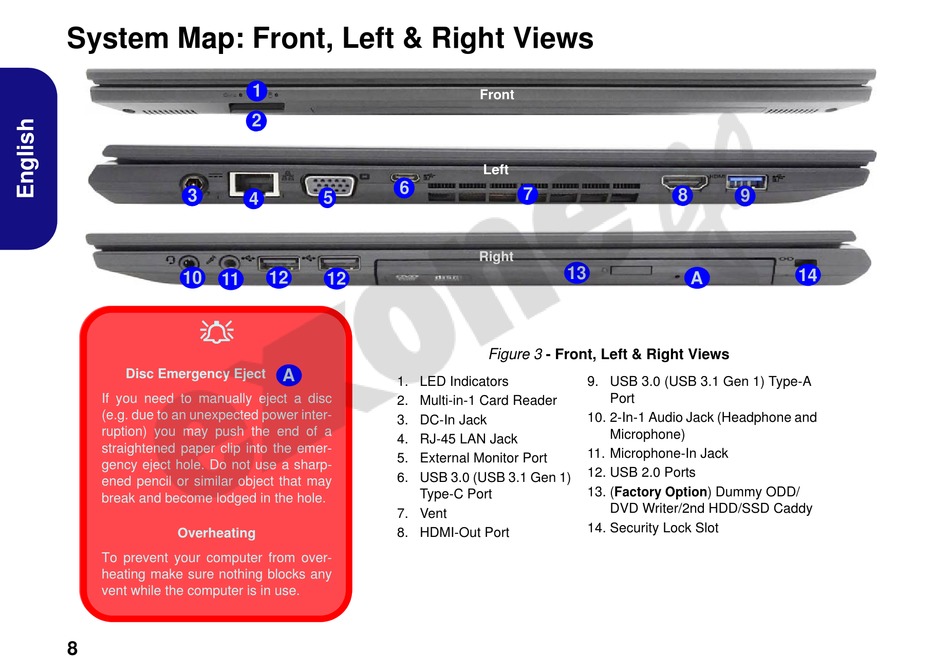

Figure 3 - Front, Left & Right Views
9. USB 3.0 (USB 3.1 Gen 1) Type-A
Port
10. 2-In-1 Audio Jack (Headphone and
Microphone)
11. Microphone-In Jack
12. USB 2.0 Ports
13. (Factory Option) Dummy ODD/
DVD Writer/2nd HDD/SSD Caddy
14. Security Lock Slot
