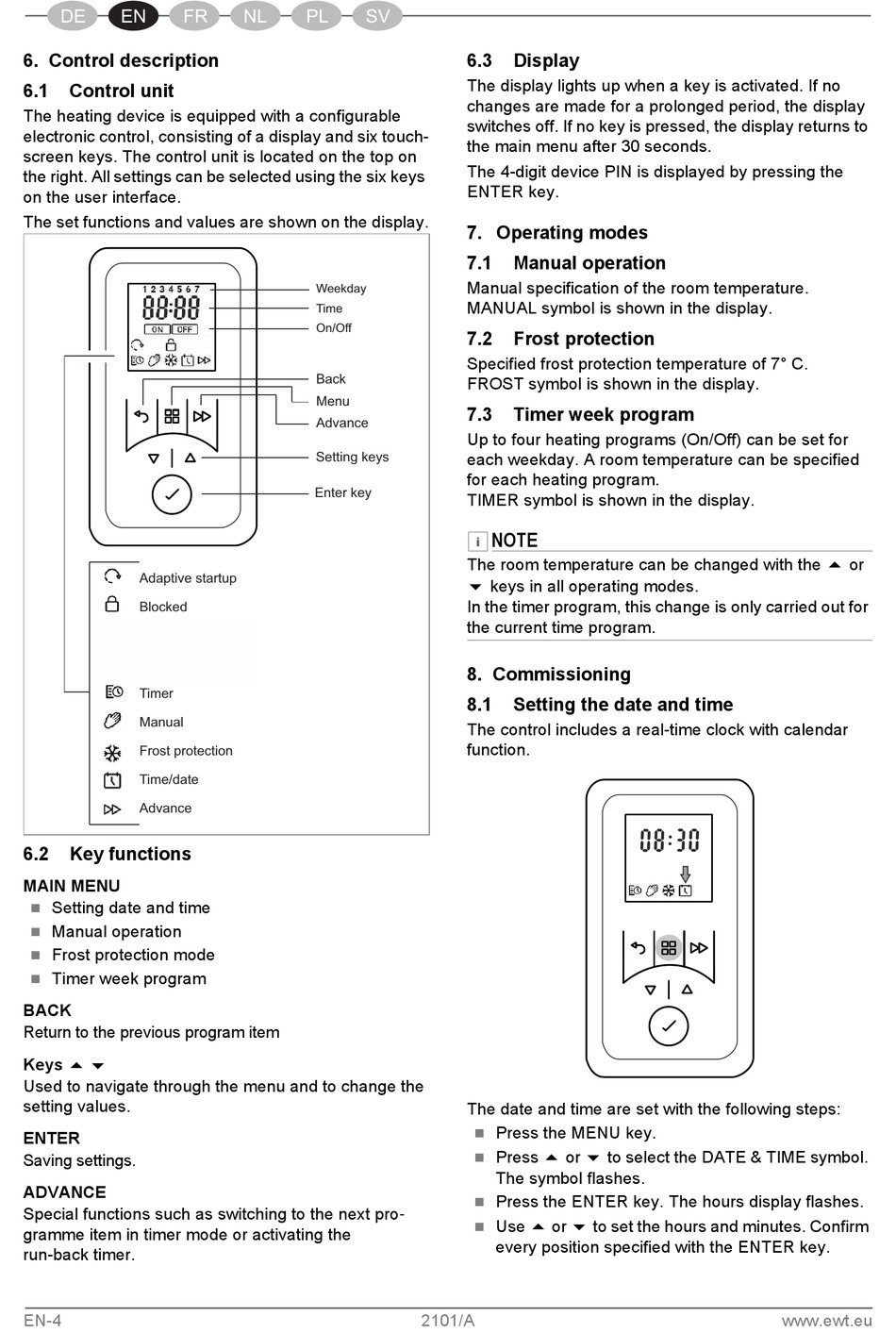

6. Control description
6.1

Control unit

The heating device is equipped with a configurable
electronic control, consisting of a display and six touch-
screen keys. The control unit is located on the top on
the right. All settings can be selected using the six keys
on the user interface.
The set functions and values are shown on the display.
6.2

Key functions

MAIN MENU
Setting date and time

Manual operation

Frost protection mode

Timer week program

BACK
Return to the previous program item
Keys  
Used to navigate through the menu and to change the
setting values.
ENTER
Saving settings.
ADVANCE
Special functions such as switching to the next pro-
gramme item in timer mode or activating the
run-back timer.
EN-4
6.3 Display
The display lights up when a key is activated. If no
changes are made for a prolonged period, the display
switches off. If no key is pressed, the display returns to
the main menu after 30 seconds.
The 4-digit device PIN is displayed by pressing the
ENTER key.
7. Operating modes
7.1 Manual operation
Manual specification of the room temperature.
MANUAL symbol is shown in the display.
7.2 Frost protection
Specified frost protection temperature of 7° C.
FROST symbol is shown in the display.
7.3 Timer week program
Up to four heating programs (On/Off) can be set for
each weekday. A room temperature can be specified
for each heating program.
TIMER symbol is shown in the display.
NOTE
The room temperature can be changed with the
keys in all operating modes.

In the timer program, this change is only carried out for
the current time program.
8. Commissioning
8.1 Setting the date and time
The control includes a real-time clock with calendar
function.
The date and time are set with the following steps:
Press the MENU key.

Press or
 

The symbol flashes.
Press the ENTER key. The hours display flashes.

Use or
 

every position specified with the ENTER key.
2101/A
to select the DATE & TIME symbol.
to set the hours and minutes. Confirm
or

