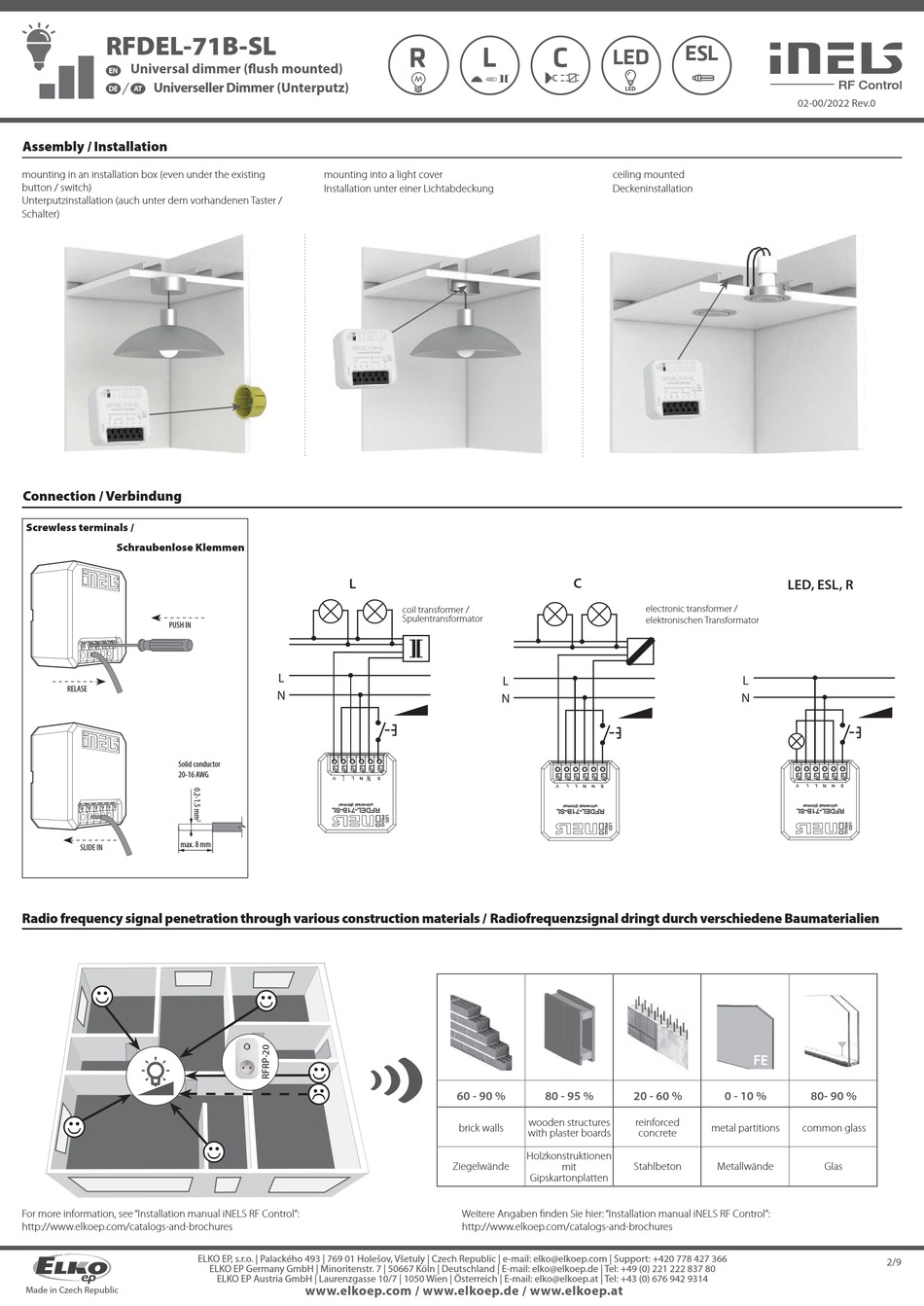

RFDEL-71B-SL
Universal dimmer (fl ush mounted)
EN
Universeller Dimmer (Unterputz)
DE
AT
Assembly /
Installation
mounting in an installation box (even under the existing
button / switch)
Unterputzinstallation (auch unter dem vorhandenen Taster /
Schalter)
Connection /
Verbindung
Screwless terminals /
Schraubenlose Klemmen
PUSH IN
RELASE
Solid conductor
20-16 AWG
max. 8 mm
SLIDE IN
Radio frequency signal penetration through various construction materials /
For more information, see "Installation manual iNELS RF Control":
http://www.elkoep.com/catalogs-and-brochures
Made in Czech Republic
mounting into a light cover
Installation unter einer Lichtabdeckung
L
L
N
ELKO EP, s.r.o. | Palackého 493 | 769 01 Holešov, Všetuly | Czech Republic | e-mail: elko@elkoep.com | Support: +420 778 427 366
ELKO EP Germany GmbH | Minoritenstr. 7 | 50667 Köln | Deutschland | E-mail: elko@elkoep.de | Tel: +49 (0) 221 222 837 80
ELKO EP Austria GmbH | Laurenzgasse 10/7 | 1050 Wien | Österreich | E-mail: elko@elkoep.at | Tel: +43 (0) 676 942 9314
www.elkoep.com / www.elkoep.de / www.elkoep.at
R
L
C
C
coil transformer /
Spulentransformator
L
N
Radiofrequenzsignal dringt durch verschiedene Baumaterialien
60 - 90 %
80 - 95 %
wooden structures
brick walls
with plaster boards
Holzkonstruktionen
Ziegelwände
mit
Gipskartonplatten
Weitere Angaben fi nden Sie hier: "Installation manual iNELS RF Control":
http://www.elkoep.com/catalogs-and-brochures
ESL
LED
ceiling mounted
Deckeninstallation
electronic transformer /
elektronischen Transformator
L
N
20 - 60 %
0 - 10 %
reinforced
metal partitions
concrete
Stahlbeton
Metallwände
02-00/2022 Rev.0
LED, ESL, R
80- 90 %
common glass
Glas
2/9
