5.6 Internal connection
The installation and service of the unit and complete ventilation system must be performed
by an authorized installer and in accordance with local rules and regulations.
The unit must be earthed.
Internal connections are made during assembly in the factory.
In case of extension of the cable between the external control CTRL-V3 and the motherboard of the QCmev125 HYP, use a 6-pole
cable of max. 30m length.
YELLOW/GREEN GIALLO/VERDE
MARRONE
BROWN

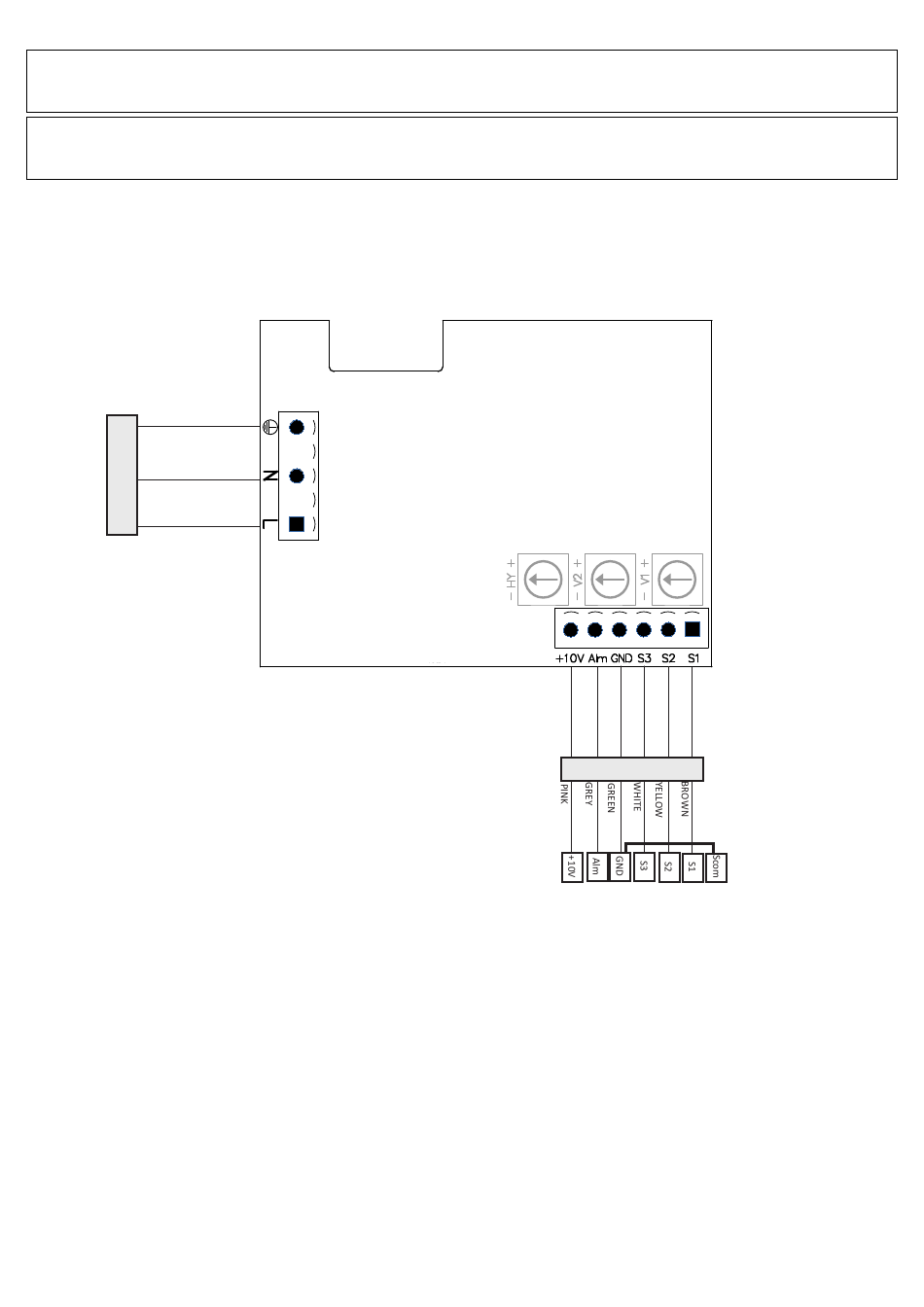

Fig. 5.k Electrical wirings on the motherboard on the machine.
Inputs / commands
N°1 AC power connector.
N°1 6-pole connector for CTRL-V3.
Make sure that the mains supply to the unit is disconnected before
performing any installation, service, maintenance or electrical work!
BLU
BLUE
Ingresso ON/OFF
(contatto pulito)
WARNING
WARNING
CTRL-V3
CTRL-V3
