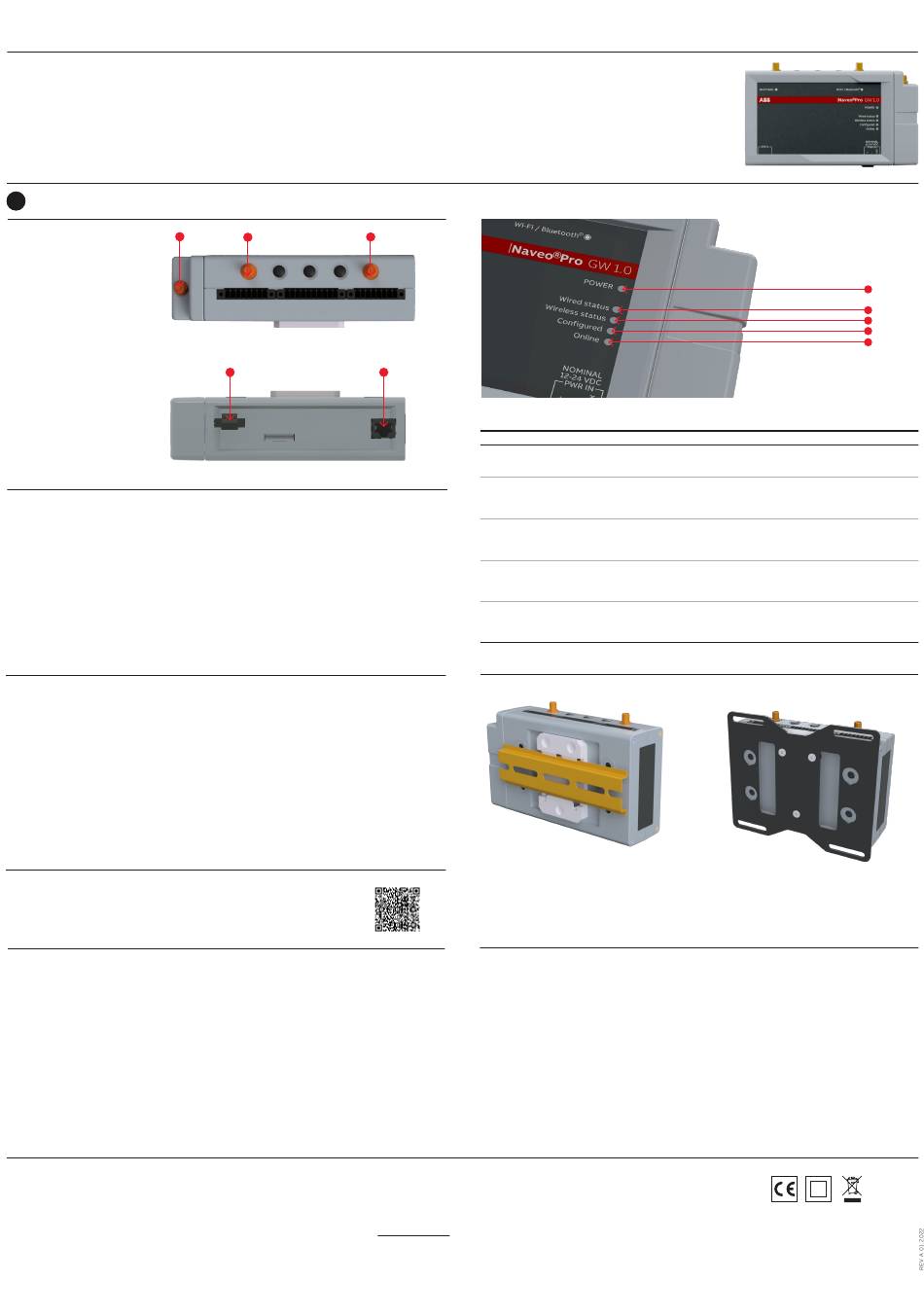

ABB Naveo Pro GW 1.0 Verpackungsbeilage

—
Naveo®Pro Gateway
Wireless version
INSTRUCTION LEAFLET
EN
1
OPERATING INSTRUCTIONS
The Naveo®Pro Gateway is an IoT
Gateway designed with 1GB of RAM
and 8GB of eMMC. This gateway is
low-power and suitable for
demanding use cases. This product
features the following range of
connections: Wi-Fi, Bluetooth® and
—
a fast Ethernet port.
1. Bluetooth
2. Antenna connector for 2.4GHz WiFi/Bluetooth® Antenna port
For the full Naveo®Pro Gateway
3. Antenna connector for 5GHz Wi Fi (optional not included)
manual please visit the website
address below for the brand
that you purchased this
product from:
www.vanlien.nl
www.kaufel.de
www.emergi-lite.co.uk
It is strongly recommended to
read the instruction before the set
up of the system to ensure a
—
smooth installation.
1. Power IN connector / 2. Ethernet ETH 1 connector
OVERVIEW
These instructions describe the characteristics of Naveo®Pro Gateway. In accordance with standard International
Electrotechnical Vocabulary IEC 60050, these instructions are aimed at two user profiles:
• Competent, skilled or expert persons
• Persons with sufficient training and experience
in electric environment (IEV 195-04-01) to enable them to perceive the risks and avoid the hazards potentially
created by electricity
IMPORTANT: In these instructions the tasks are specifically indicated that can be performed by competent or expert persons in an
electrical environment. All the remaining tasks described in the manual must be performed by trained persons in an electrical
environment. ABB accepts no liability for damage to property or personal injury due to failure to comply with the instructions contained
in this document.
HOW TO INSTALL THE PRODUCT
The product is intended for professional use and must be installed by qualified personnel only. The product must be
installed in a secured location, accessible to authorized personnel only (for example in a cabinet / technical compartment).
By default, Naveo®Pro Gateway comes with a DIN rail mounting clip fastened on the bottom side. You can use this to
install the Naveo®Pro Gateway. Optionally, you can replace the DIN Rail Mounting Clip with the Mounting bracket
(available on request as an optional extra).
IoT Gateway designed to deliver Bluetooth® Mesh connectivity
• Gateway can be connected wired or wirelessly to WiFi Routers
• Supports WiFi connections on both 2.4 GHz and 5 GHz frequency bands for added flexibility
• Communicates with up to 200 emergency units
• Supplied with a 24 VDC output
• Suitable for installation indoors in a secure location 0°C to 40°C (32°F to 104°F)
• ROHS compliant
• Gateway supplied with a Din-rail
• Comes standard with five (5) year warranty
HOW TO INSTALL THE NAVEO®PRO APP
Scan the QR code to download Naveo Pro Wireless app for commissioning
The Bluetooth® word mark and logo are registered trademarks owned by Bluetooth® SIG. Inc.
and any use of such marks by ABB Inc. is under license. Other trademarks and trade names
are those of their respective owners.
ELECTRIC SHOCK HAZARD
Failure to supply power correctly or to follow all operating instructions correctly, may create an electric shock hazard,
which could result in personal injury or loss of life, and / or damage the equipment or other property.
To avoid injuries and safely supply power to the product, complete the following steps:
1. Observe all the instructions for safety, installation, and operation
2. Make sure your hands are dry
3. Make sure that all the cables used:
– Are in good condition before using them
– Meet the product requirements and comply with the relevant standards and regulations
4. Position cables with care. Do not position cables in places where they may be trampled or compressed by objects
placed on them
5. Make sure that the power-points and plugs are in good condition before using them
6. Do not overload the power-points and plugs
7. Make sure that the product maintains a proper grounding connection
8. Use a power supply that meets the electrical requirements and complies with the relevant
standards and regulations
9. Connect power after the installation of the system has been completed
—
Contact
ABB Ltd
Electrification Products
Tower Court, Courtaulds Way
Foleshill Enterprise Park
Coventry, West Midlands
CV6 5NX
2
®
Mesh Extension module Antenna Connector (2.4 GHz)
1
Sales Tel: +44 (0) 333 999 9900
Sales Fax: +44 (0) 333 999 9901
E-Mail: lv.enquiries@gb.abb.com
new.abb.com/low-voltage
3
2
THE LED INDICATORS ARE AS FOLLOWS:
Ref# Use and Status
1 POWER
• LED ON: Product powered by the external source
• LED OFF: Product not powered by the external source
"Wired Status"
2
• LED ON: No fault detected on the wired network
• LED BLINKING: At least 1 fault is present on the wired network
• LED OFF: Wired network is offline
3 "Wireless Status"
• LED ON: No fault detected on the wireless network
• LED BLINKING: At least 1 fault is present on the wireless network
• LED OFF: Wireless network is offline
4 "Configured" (Gateway is commissioned)
• LED ON: Gateway is configured properly
• LED BLINKING: At least 1 fault is present in the gateway
• LED OFF: Gateway is not configured
5 "Online" (Cloud Connection)
• LED ON: Gateway is connected to the Cloud
• LED BLINKING: Gateway has access to the intranet but not to the internet
• LED OFF: Gateway is offline
If LED Online = OFF & LED Configured = Green – it means GW works and is connected to EmLs but is not connected to the Cloud.
—
DIN Rail mounting clip
CYBER SECURITY
Disclaimer
It is the sole responsibility of the customer to provide and continuously ensure a secure connection between the
product and the customer network or any other network.
The customer is required to establish and maintain any appropriate measures (including but not limited to the
installation of firewalls, application of authentication measures, encryption of data, installation of anti- virus
programs, etc.) to protect the product, the network, its system and the interface against any kind of security breach,
unauthorized access, interference, intrusion, leakage and/or theft of data or information.
ABB and its affiliates are not liable for damage and/or losses related to such security breaches,
unauthorised access, interference, intrusion, leakage and/or theft of data or information.
Other countries:
For more information, please reach
out to our ABB local contact center.
Find out on:
new.abb.com/contact-centers
—
Mounting bracket (optional not included)
Additional information
We reserve the right to make technical We reserve all rights in this document
changes or modify the contents of and in the subject matter and illustrations
this document without prior notice. contained therein. Any reproduction,
With regard to purchase orders, the disclosure to third parties or utilisation of its
agreed particulars shall prevail. ABB AG contents – in whole or in parts – is forbidden
does not accept any responsibility without prior written consent of ABB AG.
whatsoever for potential errors or possible
lack of information in this document. Copyright© 2021 ABB
All rights reserved.
1
2
3
4
5
Color
Blue
Amber
Amber
Green
Green
