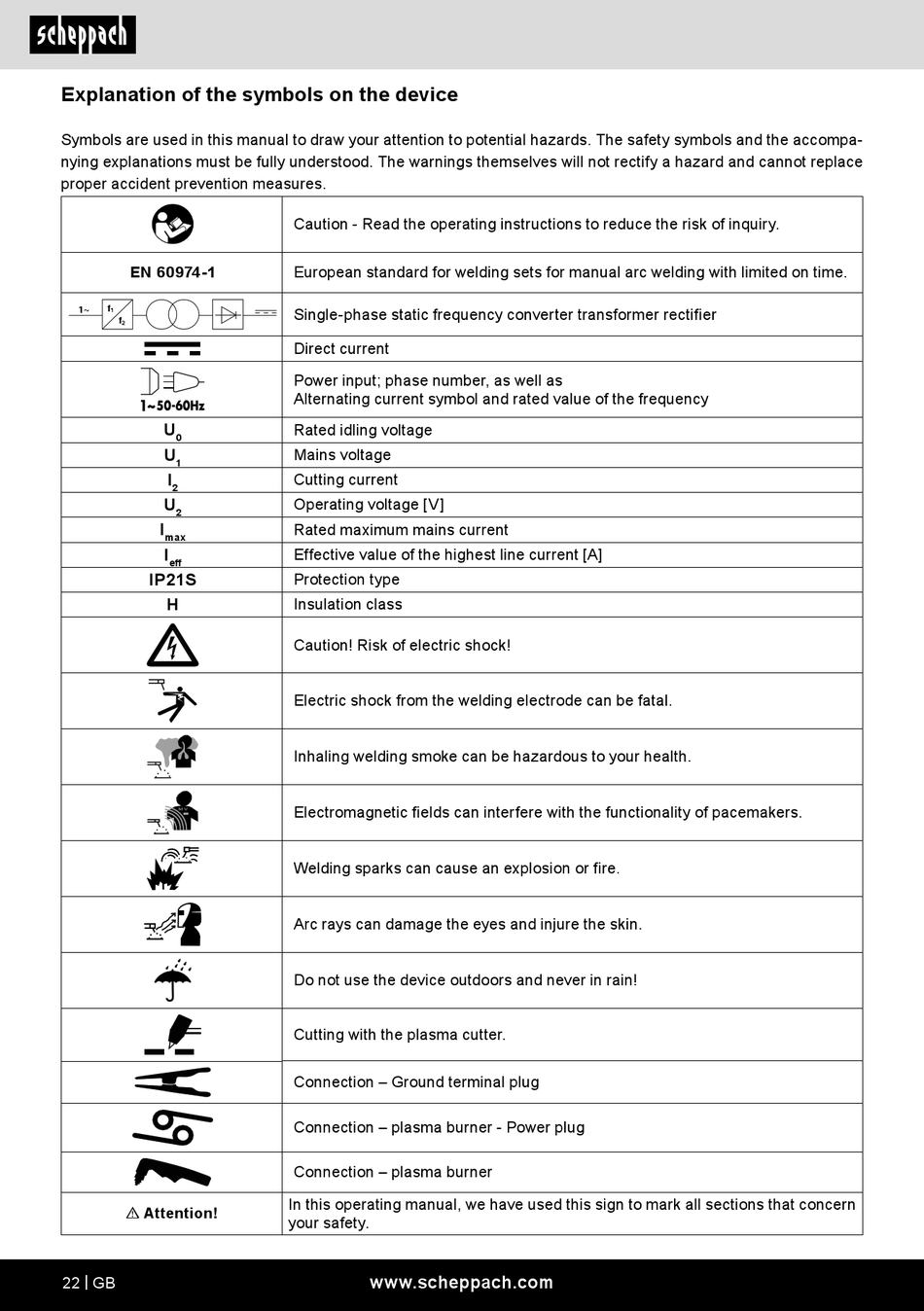

Explanation of the symbols on the device
Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompa-
nying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace
proper accident prevention measures.
EN 60974-1
f
1~
1
f
2
U
0
U
1
l
2
U
2
l
max
l
eff
IP21S
H
m Attention!
22 | GB
Caution - Read the operating instructions to reduce the risk of inquiry.
European standard for welding sets for manual arc welding with limited on time.
Single-phase static frequency converter transformer rectifier
Direct current
Power input; phase number, as well as
Alternating current symbol and rated value of the frequency
Rated idling voltage
Mains voltage
Cutting current
Operating voltage [V]
Rated maximum mains current
Effective value of the highest line current [A]
Protection type
Insulation class
Caution! Risk of electric shock!
Electric shock from the welding electrode can be fatal.
Inhaling welding smoke can be hazardous to your health.
Electromagnetic fields can interfere with the functionality of pacemakers.
Welding sparks can cause an explosion or fire.
Arc rays can damage the eyes and injure the skin.
Do not use the device outdoors and never in rain!
Cutting with the plasma cutter.
Connection – Ground terminal plug
Connection – plasma burner - Power plug
Connection – plasma burner
In this operating manual, we have used this sign to mark all sections that concern
your safety.
