Camera Settings - NUK Smart Control Multi 310 Bedienungsanleitung

7.2.2 Connecting the baby monitor
to a WLAN router (Wi-Fi
access point)
This menu item is not available via the
internet.
The description
"5.4 Connecting the baby monitor to your
WLAN router" on page 26 .

7.2.3 Camera settings

This menu item is not available via the
internet.

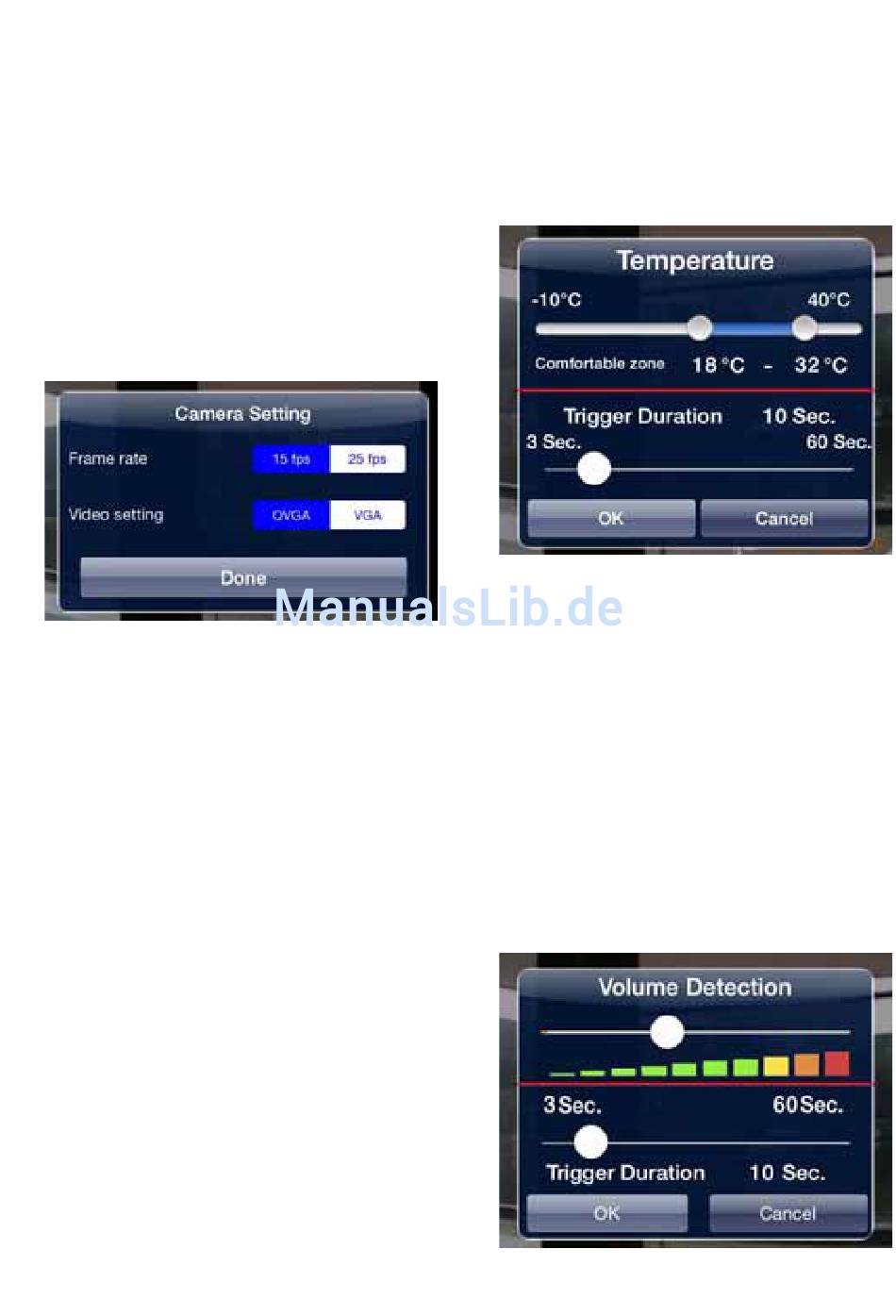

In this menu, you can adjust frame rate and
resolution.
• Frame rate can be set to 15fps (15 frames
per second) or 25fps (25 frames per
second).
– 25fps gives a smooth image, but has a
greater bandwidth.
• Resolution can be set as QVGA (320 x
240) or VGA (640 x 480).
– VGA gives an image with more pixels,
but requires a higher data transmission
rate.
1. Select the desired settings.
2. Confirm the settings with OK.
7.2.4 Adjusting the resolution of a
message
This menu item enables you to set when a
message is to be sent to your smartphone.
A message can be triggered when the set
temperature range is left or if noise in the
nursery exceeds a certain volume.
A condition for a sent message is that this
function is activated (see "6.1.2 Inputting
camera data manually" on page 28).
can be found
"Trigger Duration" means how long an alarm
has to be present in order to trigger a
message. If the alarm is shorter, e.g. in the
case of a very short sound, no message is
triggered.
1. To set the temperature range, select
in
"Temperature".
A menu opens:
2. Select the "permitted" temperature range
using the slide controllers. This is shown
in blue.
3. As soon as the temperature is outside the
permitted range, a message is triggered
after the set time (see next item).
Room temperature is measured with
temperature sensor 6.
4. Set "Trigger Duration" using the bottom
slide controller.
5. Confirm your entries with OK.
6. To adjust noise detection, select "Noise
sensor".
A menu opens:
33
