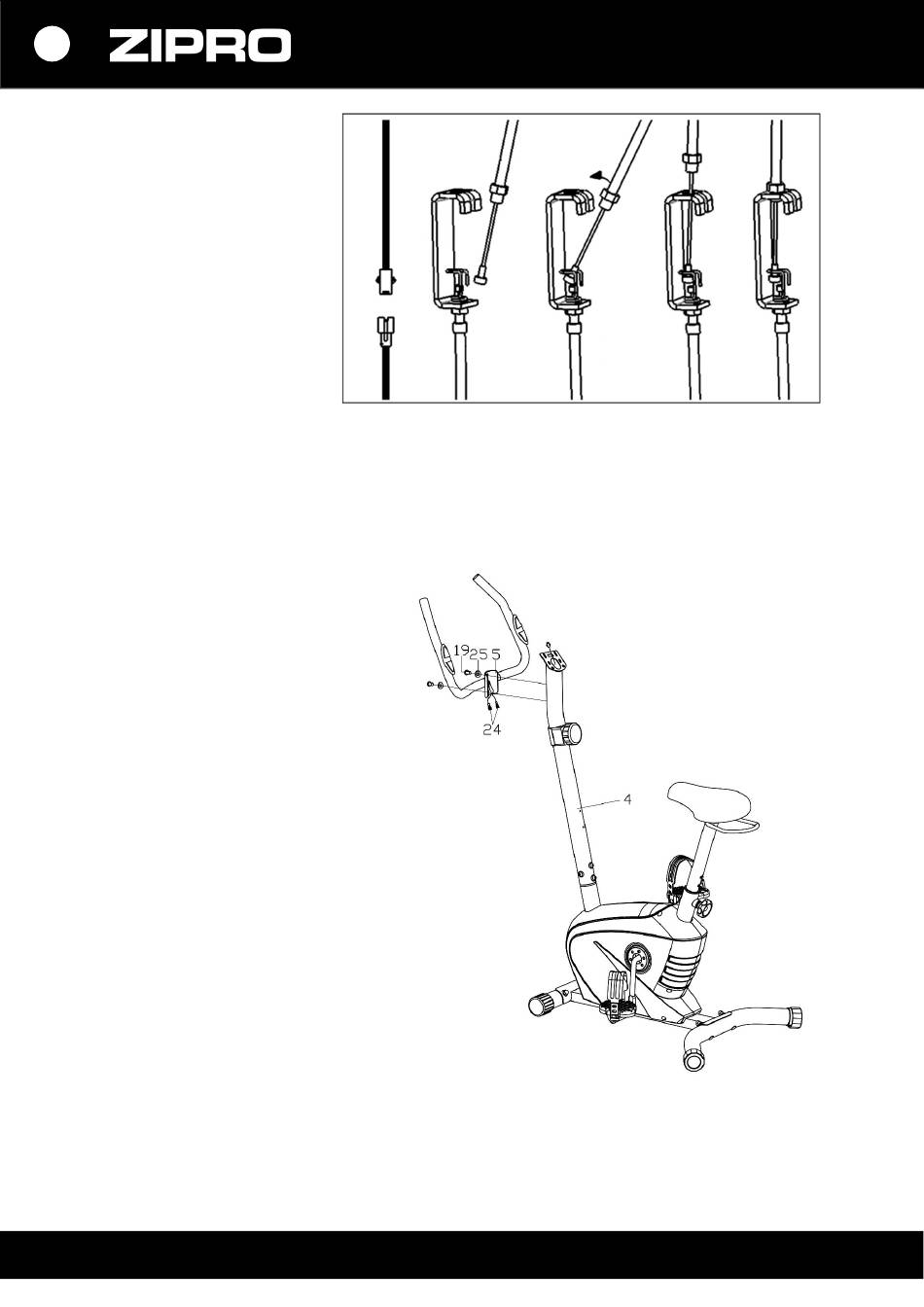

Slide the nut of the upper
resistance adjustment cable
16
18
(16) into the slot in the bracket
of the lower resistance
adjustment cable (16), pull
and tighten the upper cable
(16) and move the lower cable
bracket (16) vertically. Cable
nut should be on the bracket
as shown in the picture.
17 16
Insert the handlebar bracket (4) into the main frame (1) and fix it with bolts (19) and curved
washers (27).
5. Install the handlebar
Run the heart rate measurement cable
(24) through the slot in the handlebar
bracket (4) and pull it from the top of the
handlebar bracket (4).
Fix the handlebar (5) to the handlebar
bracket (4) with the spring washer (25)
and the Allen bolt (19).
