VOLTCRAFT DMA-1L 16 Bedienungsanleitung

Operating Instructions
DMA-1L 16
Measuring adapter
Item No. 2435658
Intended use
The prodycr provides a safe and easy way to measure the AC current of plug-in appliances
and other electrical devices.
The measuring adapter is inserted between the electrical consumer and the socket.
The measuring adapter may only be used in the range of the overvoltage category CAT III in AC
voltage networks with a nominal voltage of max. 250 V/AC which are fused with 16 A.
Only use the measuring adapter for the duration of the measurement. A permanent retention in
the mains cable circuit is not permitted.
The measuring operation is only permitted in dry surroundings.
For safety and approval purposes, you must not rebuild and/or modify this product. If you use
the product for purposes other than those described above, the product may be damaged. In
addition, improper use can result in short circuits, fires, electric shocks or other hazards. Read
the instructions carefully and store them in a safe place. Make this product available to third
parties only together with its operating instructions.
This product complies with the statutory national and European requirements. All company
names and product names are trademarks of their respective owners. All rights reserved.
Delivery content
• Measuring adapter
• Operating instructions
Up-to-date operating instructions
Download the latest operating instructions at www.conrad.com/downloads or
scan the QR code shown. Follow the instructions on the website.
Explanation of symbols
The symbol with the lightning in the triangle is used if there is a risk to your health,
e.g. due to an electric shock.
The symbol with the exclamation mark in the triangle is used to indicate important
information in these operating instructions. Always read this information carefully.
Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any resulting per-
sonal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
a) General information
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may become dan-
gerous playing material for children.
• Protect the appliance from extreme temperatures, direct sunlight, strong jolts, high
humidity, moisture, flammable gases, steam and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of operation and
protect it from any accidental use. Safe operation can no longer be guaranteed
if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even from a low height
can damage the product.
• Consult an expert when in doubt about the operation, safety or connection of the
appliance.
• Maintenance, modifications and repairs must only be completed by a technician
or an authorised repair centre.
• If you have questions which remain unanswered by these operating instructions,
contact our technical support service or other technical personnel.
b) Connected devices
• Also observe the safety and operating instructions of any other devices which are
connected to the product.
c) Product
• The measuring adapter and the plugs may not be disassembled.
• The voltage and current range specified should not be exceeded.
• The measuring adapter may only be used for current and voltage measurement.
• The user is not allowed to put other items than suitable safety measuring cables
in the sockets
• Current measurement on the measurement sockets is not possible (an attempt
would short-circuit the device)!
• The user may not short-circuit the contacts of the measuring adapter.

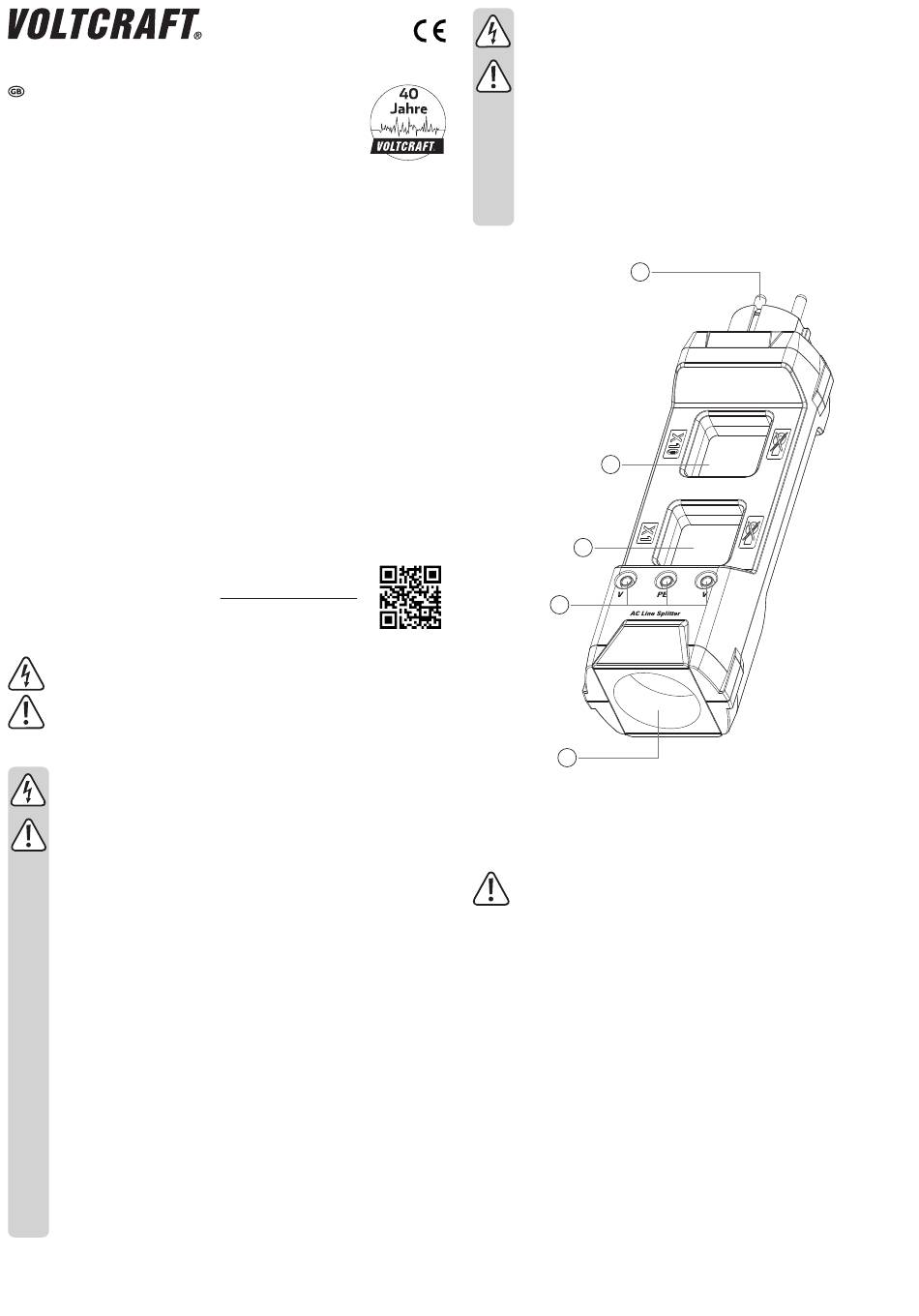

Operating elements
1
2
3
4
5
1 Plug
2 Current measuring ring: X10
3 Current measuring ring: X1
Operation
The current is measured with commercial AC current clamps on the insulated meas-
uring chambers and the voltage is measured with voltage measuring devices on the
measuring so-ckets.
Both types of measurement can be carried out at the same time. Only use the meas-
uring adapter for the duration of the measurement. A permanent retention in the
mains cable circuit is not permitted.
CAT III Overvoltage category III for measurements on electric and electronic devices con-
nected to the mains supply with a mains plug. This category also covers all lower
categories (e.g. CAT I for measuring signal and control voltages).
4 Voltage measurement inputs:
L-N, L-PE, N-PE
5 Socket
