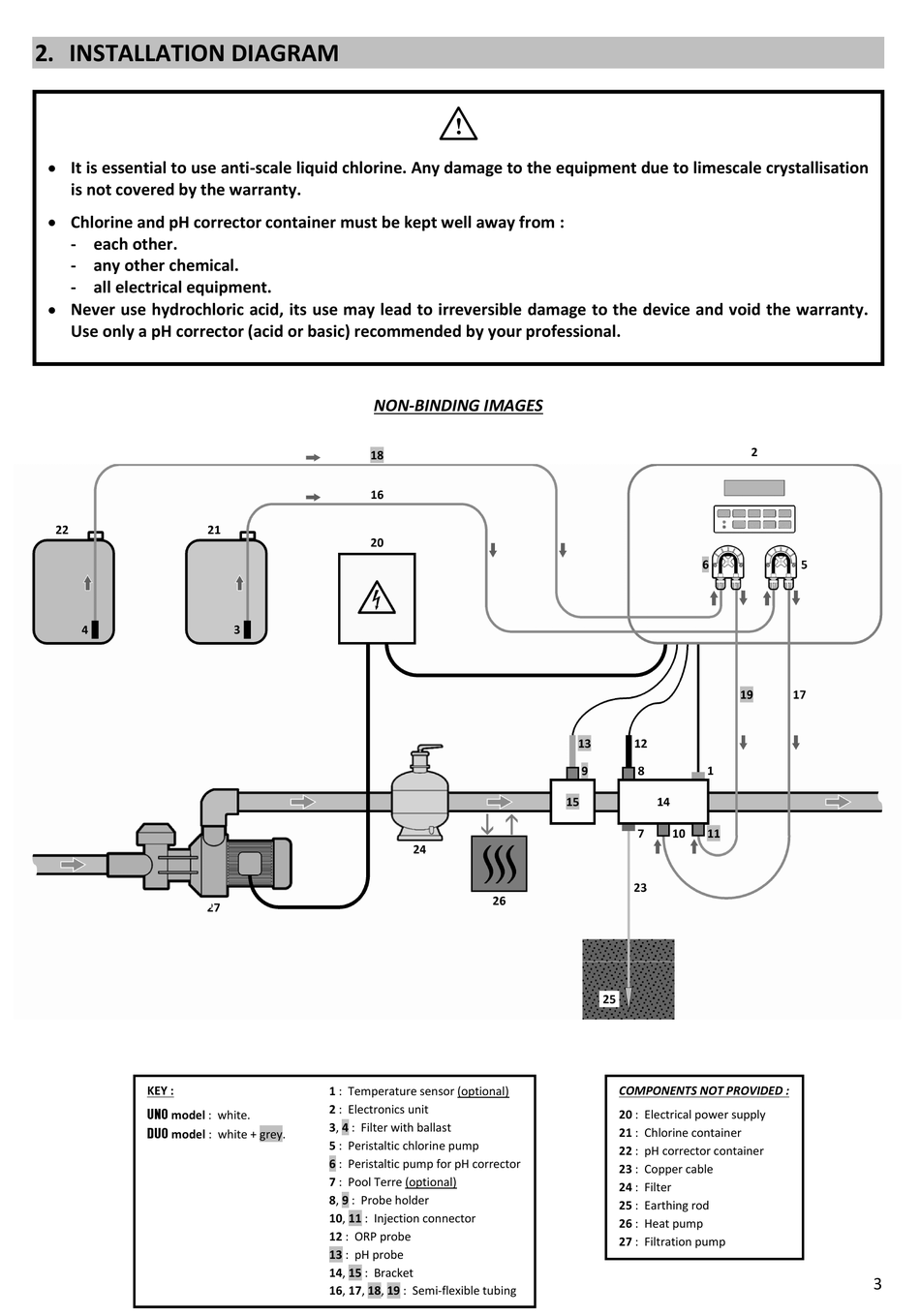

2. INSTALLATION DIAGRAM

It is essential to use anti-scale liquid chlorine. Any damage to the equipment due to limescale crystallisation
is not covered by the warranty.
Chlorine and pH corrector container must be kept well away from :
- each other.
- any other chemical.
- all electrical equipment.
Never use hydrochloric acid, its use may lead to irreversible damage to the device and void the warranty.
Use only a pH corrector (acid or basic) recommended by your professional.
22 21
4
27
KEY :
UNO model : white.
DUO model : white + grey.
NON-BINDING IMAGES
18
16
20
H
3
1 : Temperature sensor (optional)
2 : Electronics unit
3, 4 : Filter with ballast
5 : Peristaltic chlorine pump
6 : Peristaltic pump for pH corrector
7 : Pool Terre (optional)
8, 9 : Probe holder
10, 11 : Injection connector
12 : ORP probe
13 : pH probe
14, 15 : Bracket
16, 17, 18, 19 : Semi-flexible tubing
I
13
9
4
15
24
26
2
6
19
12
8 1
4
14
7 10 11
23
25
COMPONENTS NOT PROVIDED :
20 : Electrical power supply
21 : Chlorine container
22 : pH corrector container
23 : Copper cable
24 : Filter
25 : Earthing rod
26 : Heat pump
27 : Filtration pump
5
17
3
