APPLICATIONS
The group function allows you to operate up to 6 independent DMX wireless networks in parallel, each with 512
DMX channels. You can also use one transmitter with several receivers in the same group.

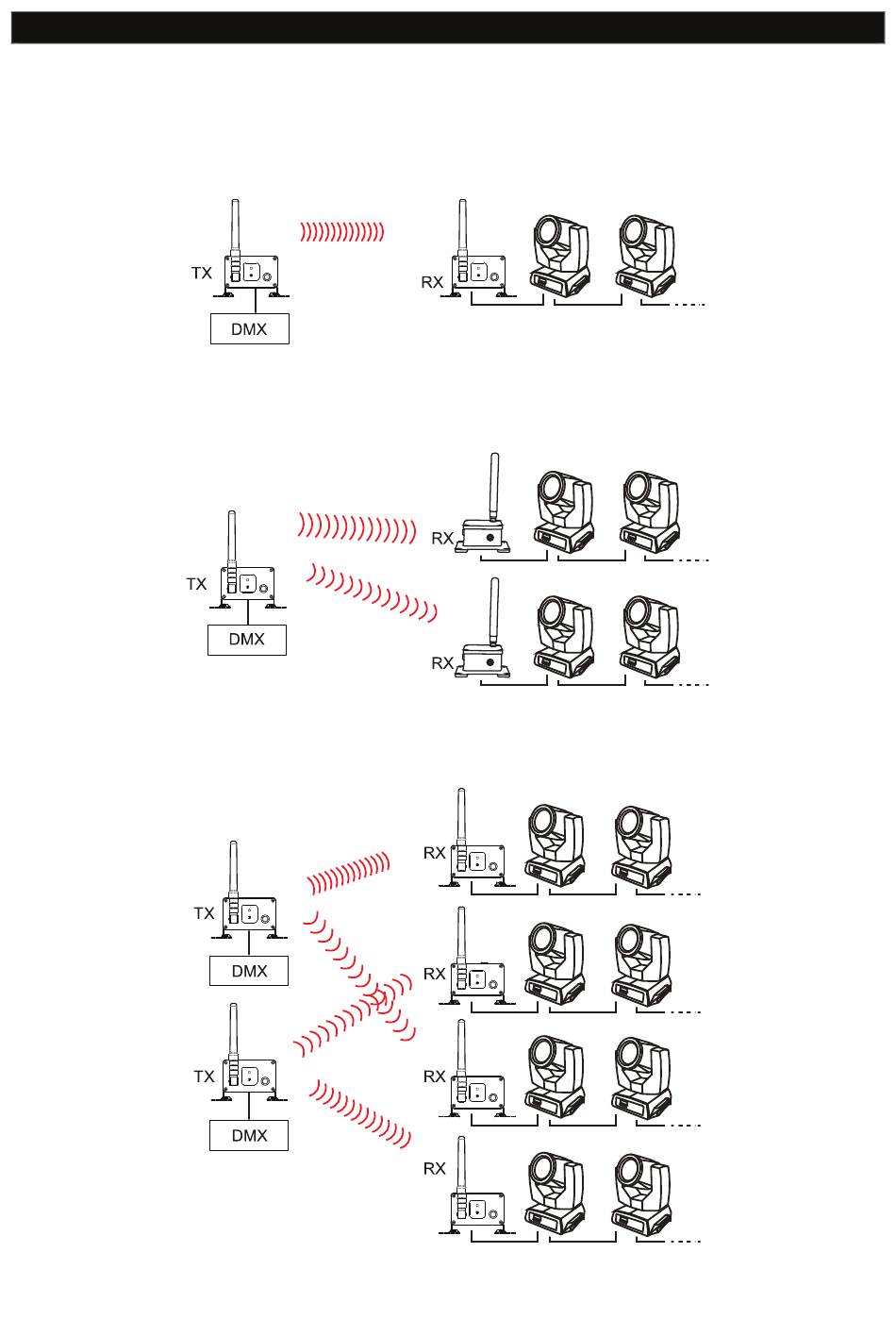

Point-to-point connection

The DMX signal is fed to a transmitter which sends it via RF. A receiver with the same transmission channel
receives the RF signal and distributes it as a DMX signal.

Point-to-multipoint connection

The DMX signal is fed to a transmitter which sends it via RF. Several receivers with the same transmission channel
receive the RF signal and distribute it as a DMX signal.

Multipoint-to-multipoint connection

Up to 6 DMX universes can be transmitted simultaneouly using multipoint-to-multipoint operation. All receivers will
respond only to the designated transmitter without any delay or interference from other systems.
