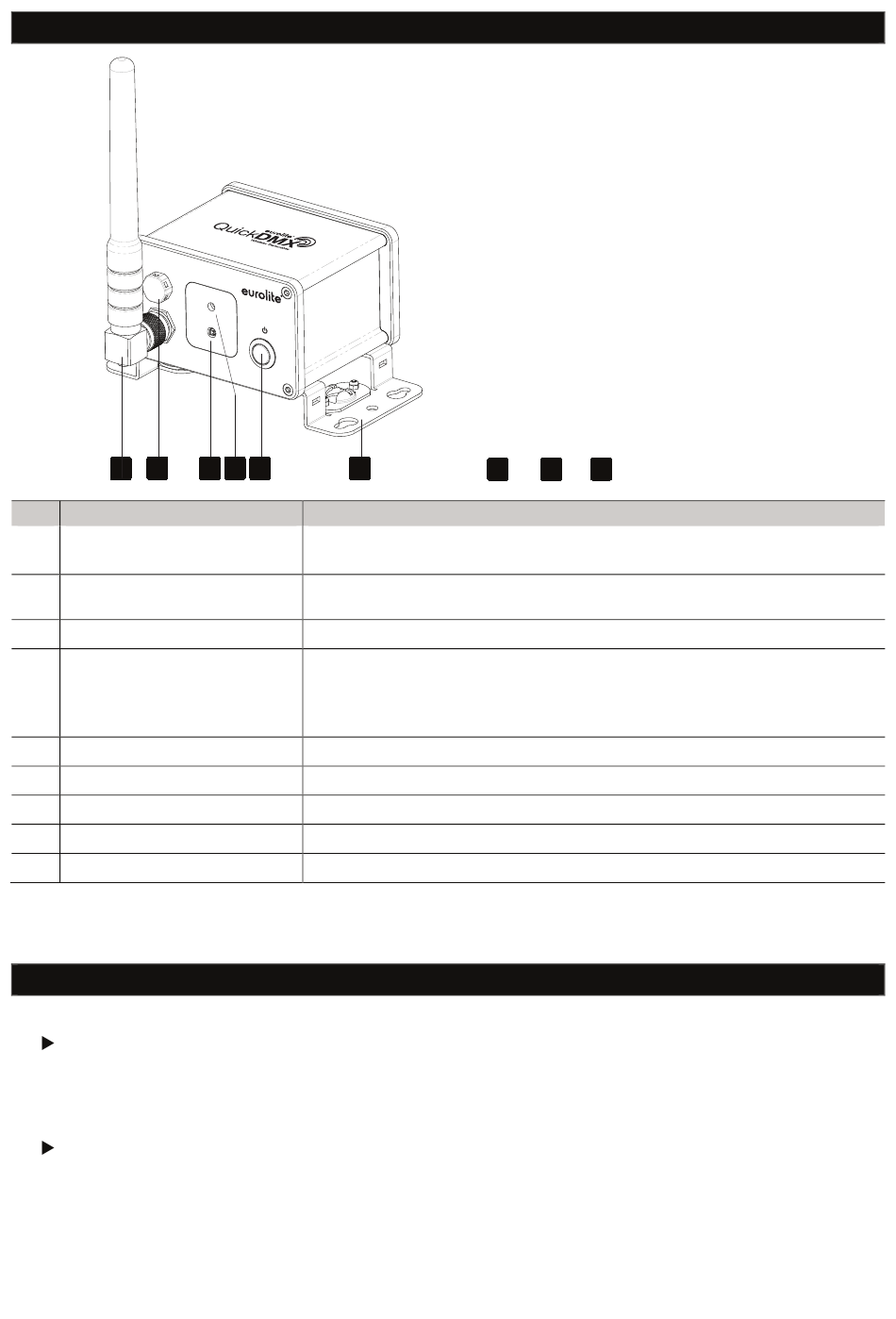

Operating Elements And Connections - EuroLite QuickDMX Bedienungsanleitung

1 2
No. Element
1 Antenna
2 Pressure compensation
element
3 ID button
4 Status indicator
5 Power on/off
6 Mounting bracket
7 Power input
8 DMX IN
9 DMX OUT jack
Note: When connected correctly, the power and DMX sockets are protected from spraying water according to IP65.
When not in use, make absolutely sure to close the sockets with the rubber sealing caps.
1) Set each transmitter and receiver into operation.
The status indicator shortly flashes red, green and blue. Afterwards, it lights permanently depending on the
selected transmission channel
2) Set the transmitter and receiver to the same transmission group. Six groups are available (red, green, blue,
yellow, cyan, magenta). To change the group of a unit, briefly press the ID button (3) repeatedly until the LED
(4) lights up in the color of the desired group
The wireless DMX network is now set up and the units are paired. The assignment of the receiver to the
transmitter is kept memorized even after switching off.
3) As soon as the transmitter receives a DMX signal, the status indicator switches to red. Shortly afterwards, the
status indicator of the receiver starts flashing green to indicate that the DMX signal is being received.

OPERATING ELEMENTS AND CONNECTIONS

3 4 5 6
Function
Screw on the antenna provided to the antenna input and put it in a vertical
position.
Prevents the development of condensation inside the device.
To change the transmission channel and pair the devices.
• Lights permanently red at the transmitter when a DMX signal is being
transmitted.
• Flashes green at the receiver when a DMX signal is being received.
• Shortly flashes red, green and blue after switching on.
Turns the device on and off.
With mounting points for Omega holders for flexible mounting options.
Lockable IP T-Con input for mains connection.
DMX input, 3-pin XLR IP
DMX output, 3-pin XLR IP
7 8
OPERATION
12 • EN
