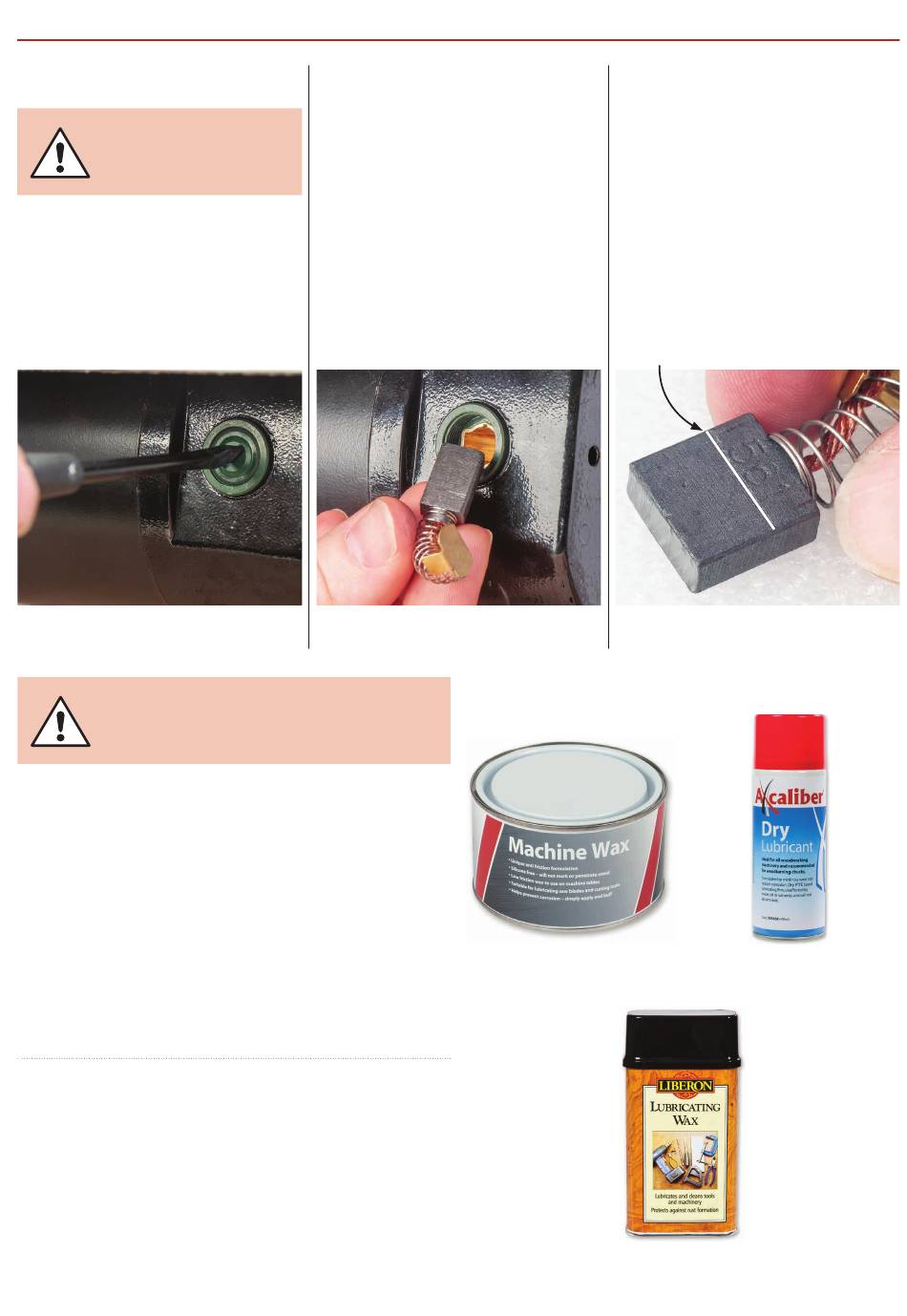

Maintenance - Axminster AW355WL Originalanleitung

Motor Brushes
DISCONNECT THE LATHE
FROM THE MAINS SUPPLY!
1. After 100 hours of use, check the
condition of the motor brushes by
unscrewing each access port cap in
turn, see fig 33.
Fig 33
Remover the access port with
a flat headed screwdriver
DISCONNECT THE LATHE
FROM THE MAINS SUPPLY!
Daily After Use
• Clean wood shavings away from the lathe bed and tool rest.
• Smear a light coat of wax, 'Axminster Machine Wax' , code
105806' , see fig 36, over the lathe bed to allow the banjo and
tailstock to run more smoothly over the bed and to prevent
corrosion.
• Spray 'Axcaliber Dry Lubricant' , code 503468, over the tailstock
barrel/live centre and headstock spindle/chuck after use,
see fig 37.
Monthly
• Check the tension of the belt and adjust, see page 12
for Changing the Belt Speed.
• Check any build up of wood shavings on the motor
and spindle pulleys and clean if necessary.
• Use an 'M' class vacuum cleaner to clean the heat sink air
vents on the NVR control box assembly.
NOTE: Take careful note of the
orientation of the brushes, remember
that they have bedded themselves to
the profile of the commutator in that
position. If you fit them reversed, it
can cause excessive sparking and heat
until they have re-bedded themselves.
2. Remove the motor brushes and
check the condition of the brush
head,see fig 34.
Fig 34
Remove the motor brush and
check its condition
Axminster Machine Wax
Code: 105806
15

MAINTENANCE

3. If they are in good condition, re-fit.
If they were worn to the 'Line' replace
with new brushes, see fig 35. For after
sales enquires, call 03332 406406.
4. Replace the new brushes and access
port cap screws, connect to mains
supply and run the machine off load for
approximately. 20 minutes to bed the
new brushes in.
Line
Replace the motor brush if
worn down to the 'Line'
Axcaliber Dry Lubricant
Code: 503468
Liberon Lubricating Wax
Code: 600221
Fig 35
Fig 36-37
