OPERATING INSTRUCTIONS
Changing the Lathe Speed
DISCONNECT THE LATHE FROM THE
MAINS BEFORE CONTINUING!
1. Open the access panel, see fig 10-11. Loosen the four screws
holding the motor pulley access plate (A) and remove, see fig
21-22.

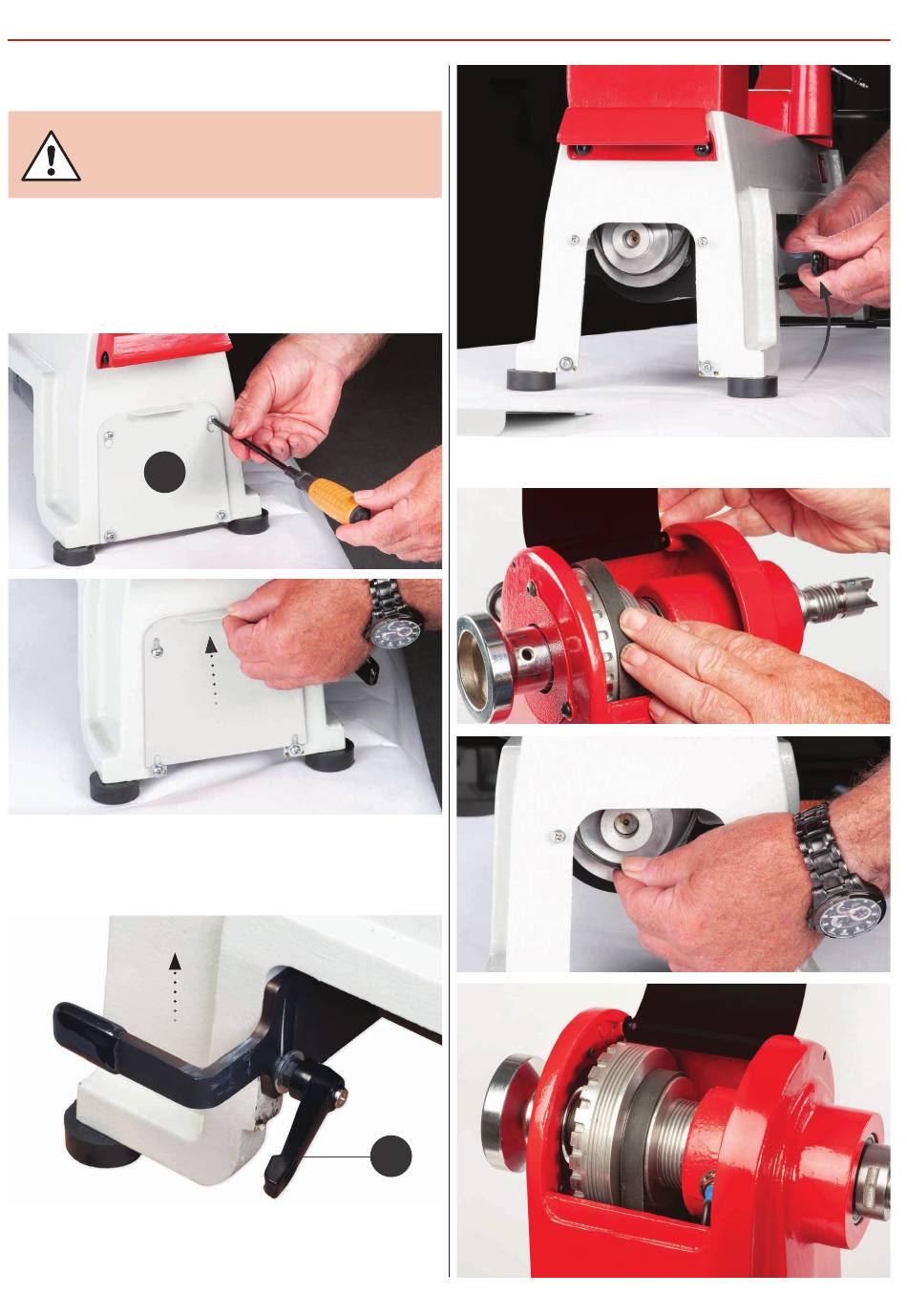

Fig 21-22
A
2. Release the motor locking handle (B) and lift up the motor,
retighten the locking handle, see fig 23-24.
Fig 23-24
3. Reposition the drive belt to one of the three positions, see fig
25-26-27. Note: The speed chart shows approximate speeds.
B
12
Fig 25-26-27
